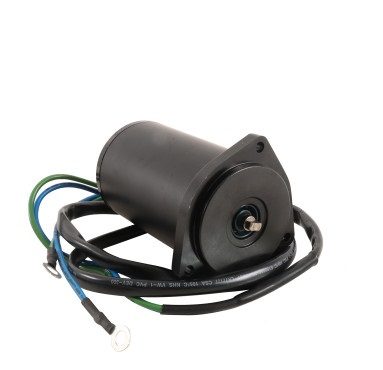

NEW Tilt/Trim Motor for YAMAHA 40 – 70 HP Outboard Engines; 430-22048, 4-6789, 18-6789, 62X43880-00, 62X43880-01, 62X43880-09; LESTER 1083
$149.99
Specifications
| UNIT TYPE |
Tilt/Trim Motor |
| CURRENT TYPE |
DC |
| ROTATION DIRECTION |
Reversible |
| VOLT |
12 |
| OD |
2.504″ |
| OD |
63.600 mm |
| SHAFT OD |
0.311″ |
| SHAFT OD |
7.900mm |
| LENGTH |
120.400 mm |
| LENGTH |
4.740″ |
| TERMINAL 2 SIZE |
Wire |
| TERMINAL 3 SIZE |
Wire |
| SHAFT |
4mm X 8mm Drive Tang |
| WARRANTY |
1 Year |
Part Number & Interchanges
| Manufacturer Name |
Manufacturer Part # |
| ARROWHEAD |
TRM0060 |
| EMP |
4-6789 |
| J&N ELECTRICAL PRODUCTS |
430-22048, 430-22090 |
| LESTER |
10833 |
| SIERRA MARINE |
18-6789 |
| YAMAHA |
62X43880-00, 62X43880-01, 62X43880-09 |
Applications
Part fit
| MAKE |
MODEL |
ENGINE |
YEAR |
| Yamaha |
F70LA |
70H |
2010, 2011 |
| Yamaha |
F70LA |
70H |
2012, 2013, 2014, 2015, 2016 |
| Yamaha |
F60TJR |
60H |
2003, 2004 |
| Yamaha |
F60TLR |
60H |
2002, 2003, 2004 |
| Yamaha |
T60TLR |
60H |
2003, 2004 |
| Yamaha |
50EJR |
50H |
1995, 1996, 1997, 1998, 1999 |
| Yamaha |
50EJR |
50H |
2000 |
| Yamaha |
50EJR |
50H |
2001 |
| Yamaha |
50ELR |
50H |
1995, 1997, 1998 |
| Yamaha |
50TLH |
50H |
1995, 1996, 1997 |
| Yamaha |
50TLR |
50H |
1996, 1997 |
| Yamaha |
50TLR |
50H |
2001, 2002 |
| Yamaha |
50TLR |
50H |
2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010 |
| Yamaha |
C50TLR |
50H |
1998, 1999, 2000 |
| Yamaha |
C50TLR |
50H |
2001 |
| Yamaha |
F50TJR |
50H |
2002, 2003 |
| Yamaha |
F50TLH |
50H |
1996, 1997, 1998 |
| Yamaha |
F50TLR |
50H |
1996, 1997, 1998, 1999 |
| Yamaha |
F50TLR |
50H |
2000 |
| Yamaha |
F50TLR |
50H |
2001, 2002 |
| Yamaha |
F50TLR |
50H |
2003, 2004 |
| Yamaha |
F60TJR |
50H |
2002 |
| Yamaha |
P50TLR |
50H |
1995, 1996 |
| Yamaha |
T50TLR |
50H |
1996, 1997, 1998 |
| Yamaha |
T50TLR |
50H |
2000 |
| Yamaha |
T50TLR |
50H |
2001, 2002 |
| Yamaha |
T50TLR |
50H |
2003, 2004 |
| Yamaha |
40EJR |
40H |
1995, 1996, 1997, 1998, 1999 |
| Yamaha |
40ELR |
40H |
1995, 1996, 1997, 1998 |
| Yamaha |
40ESR |
40H |
1995, 1996, 1997, 1998, 1999 |
| Yamaha |
40MJH |
40H |
1995, 1996, 1997, 1998, 1999 |
| Yamaha |
40MJH |
40H |
2000 |
| Yamaha |
40MJH |
40H |
2001 |
| Yamaha |
40MLH |
40H |
1995, 1996, 1997, 1998, 1999 |
| Yamaha |
40MLH |
40H |
2000 |
| Yamaha |
40MLH |
40H |
2001 |
| Yamaha |
40MSH |
40H |
1995, 1996, 1997, 1998, 1999 |
| Yamaha |
40TLH |
40H |
1996, 1997 |
| Yamaha |
40TLR |
40H |
1995, 1996, 1997, 1998, 1999 |
| Yamaha |
40TLR |
40H |
2000 |
| Yamaha |
40TLR |
40H |
2001, 2002 |
| Yamaha |
40TLR |
40H |
2003, 2004, 2005, 2006 |
| Yamaha |
C40TLR |
40H |
1997, 1998, 1999 |
| Yamaha |
C40TLR |
40H |
2000 |
| Yamaha |
C40TLR |
40H |
2001 |
| Yamaha |
C40TLR |
40H |
2002 |
| Yamaha |
C40TLR |
40H |
2003 |
| Yamaha |
F40TLR |
40H |
1999 |
| Yamaha |
P40TLH |
40H |
1998 |
| Yamaha |
P40TLR |
40H |
1998 |
