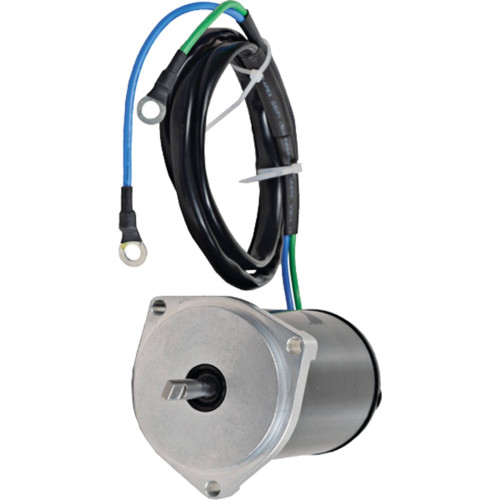

NEW Tilt/Trim Motor for YAMAHA F50, F60, T50 & T60 50 – 60 HP Outboard Engines; 430-22077, 4-6836, 6C5-43880-01-00; LESTER 10860
$199.99
Specifications
| UNIT TYPE |
Tilt/Trim Motor |
| ROTATION DIRECTION |
Reversible |
| CURRENT TYPE |
DC |
| VOLT |
12 |
| OD |
2.520″ |
| OD |
64 mm |
| SHAFT OD |
0.315″ |
| SHAFT OD |
8mm |
| LENGTH |
146.800 mm |
| LENGTH |
5.780″ |
| TERMINAL 2 SIZE |
6.5 |
| TERMINAL 3 SIZE |
6.5 |
| SHAFT |
Slotted |
| WARRANTY |
1 Year |
Part Number & Interchanges
| Manufacturer Name |
Manufacturer Part # |
| ARROWHEAD |
TRM0083 |
| EMP |
4-6836 |
| J&N ELECTRICAL PRODUCTS |
430-22077 |
| LESTER |
10860 |
| YAMAHA |
6C5-43880-01-00 |
Applications
Part fit
| MAKE |
MODEL |
ENGINE |
YEAR |
| Yamaha |
F50 |
50H |
2005, 2006, 2007, 2008, 2009 |
| Yamaha |
F50LA |
50H |
2013 |
| Yamaha |
F50LB |
50H |
2014, 2015, 2016 |
| Yamaha |
F50TLR |
50H |
2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012 |
| Yamaha |
F60 |
60H |
2005, 2006, 2007, 2008, 2009 |
| Yamaha |
F60JA |
60H |
2013 |
| Yamaha |
F60JB |
60H |
2014, 2015, 2016 |
| Yamaha |
F60LA |
60H |
2013 |
| Yamaha |
F60LB |
60H |
2014, 2015, 2016 |
| Yamaha |
F60TJR |
60H |
2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012 |
| Yamaha |
F60TLR |
60H |
2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012 |
| Yamaha |
T50LA |
50H |
2013 |
| Yamaha |
T50LB |
50H |
2014, 2015, 2016 |
| Yamaha |
T50TLR |
50H |
2005 |
| Yamaha |
T60LA |
60H |
2013 |
| Yamaha |
T60LB |
60H |
2014, 2015, 2016 |
| Yamaha |
T60TLR |
60H |
2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012 |
