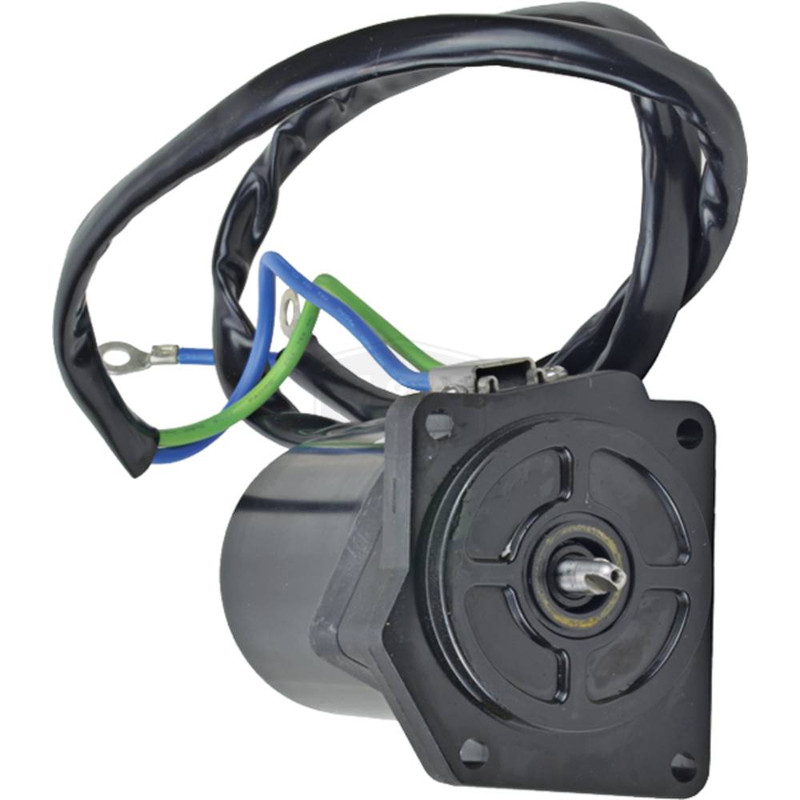

NEW Tilt/Trim Motor for YAMAHA F75 & F90 Series; 430-22118, 6D8-43880-00-00, 6D8-43880-01-00, 6D8-43880-09-00; LESTER 10886
$229.99
Specifications
| UNIT TYPE | Tilt/Trim Motor |
| CURRENT TYPE | DC |
| VOLT | 12 |
| ROTATION DIRECTION | Reversible |
| OD | 2.563″ |
| OD | 65.100 mm |
| SHAFT OD | 0.311″ |
| SHAFT OD | 7.900mm |
| LENGTH | 139.600 mm |
| LENGTH | 5.496″ |
| TERMINAL 2 SIZE | Wire |
| TERMINAL 3 SIZE | Wire |
| SHAFT | 3.4mm Keyed |
| WARRANTY | 1 Year |
| OE Shaft Length May Vary – Use Supplied Coupler If Longer Shaft Length Is Needed |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | TRM0092, TRM0093 |
| J&N ELECTRICAL PRODUCTS | 430-22118 |
| LESTER | 10886 |
| YAMAHA | 6D8-43880-00-00, 6D8-43880-01-00, 6D8-43880-09-00 |
Applications
Part fit
| MAKE | MODEL | ENGINE | YEAR |
| Yamaha | F75 | 75H | 2005, 2006, 2007, 2008 |
| Yamaha | F75LA | 75H | 2013, 2014, 2015, 2016, 2017, 2018 |
| Yamaha | F75TLR | 75H | 2005, 2006 |
| Yamaha | F75TLR | 75H | 2007, 2008, 2009, 2010, 2011, 2012 |
| Yamaha | F90 | 90H | 2005, 2006, 2007, 2008 |
| Yamaha | F90JA | 90H | 2013, 2014, 2015, 2016, 2017, 2018 |
| Yamaha | F90LA | 90H | 2013, 2014, 2015, 2016, 2017, 2018 |
| Yamaha | F90TJR | 90H | 2005, 2006 |
| Yamaha | F90TJR | 90H | 2007, 2008, 2009, 2010, 2011, 2012 |
| Yamaha | F90TLR | 90H | 2005, 2006 |
| Yamaha | F90TLR | 90H | 2007, 2008, 2009, 2010, 2011, 2012 |
| Yamaha | F90TXR | 90H | 2005, 2006 |
| Yamaha | F90TXR | 90H | 2007, 2008, 2009, 2010, 2011, 2012 |
| Yamaha | F90XA | 90H | 2013, 2014, 2015, 2016, 2017, 2018 |
