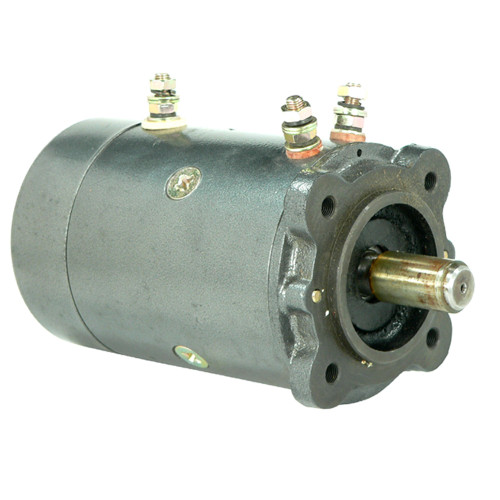

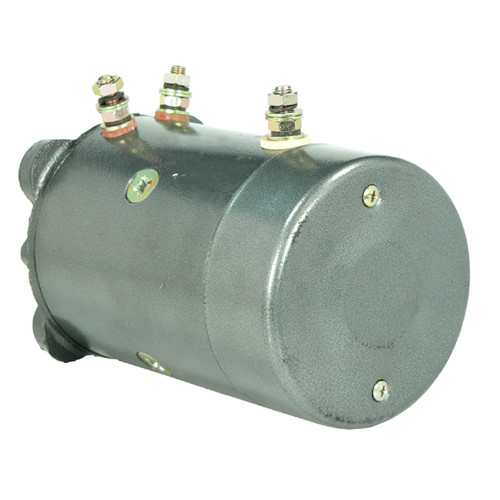

NEW Winch Motor for LIFTMORE & RAMSEY Applications; 430-20092, 46-2285, 46-2287, 46-2287RM, MBJ4405, MBJ6201, MBJ6302, 458001, W-9133; LESTER 5687-DBB
$189.99
Specifications
| UNIT TYPE | Winch Motor |
| CURRENT TYPE | DC |
| CRITICAL NOTE | Aftermarket Units May Differ In Configuration And Length From The OEM Units; Please Review The Specifications To Assure Proper Fitment. |
| ROTATION DIRECTION | Reversible |
| VOLT | 12 |
| POWER | 1.700 kw |
| HP | 2.28 |
| OD | 114.900 mm |
| OD | 4.524″ |
| SHAFT OD | 0.748″ |
| SHAFT OD | 19mm |
| LENGTH | 236.500 mm |
| LENGTH | 9.311″ |
| TERMINAL 2 SIZE | 5/16-24 |
| TERMINAL 3 SIZE | 5/16-24 |
| TERMINAL 4 SIZE | 5/16-24 |
| SHAFT | Includes Keyway |
| WARRANTY | 1 Year |
| Mounting Plate Includes (4) 3/8-24 Threaded Mounting Holes, J&N Motor Has (2) & (1) Terminal Configuration, Prestolite Motor Has Inline Terminal Configuration |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | LRW0012 |
| J & N | 430-20000, 430-20032, 430-20036, 430-20092, 430-20097 |
| LESTER | 5687-DBB |
| PRESTOLITE | 46-2285, 46-2287, 46-2287RM, MBJ4405, MBJ6201, MBJ6302 |
| RAMSEY | 458001 |
| WESTERN MOTORS | W-9133 |
