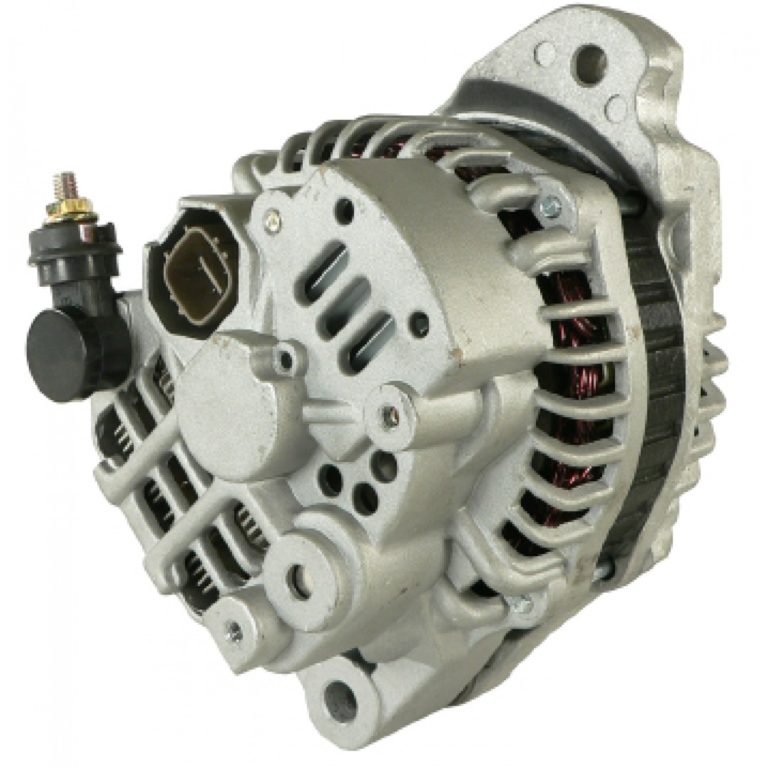

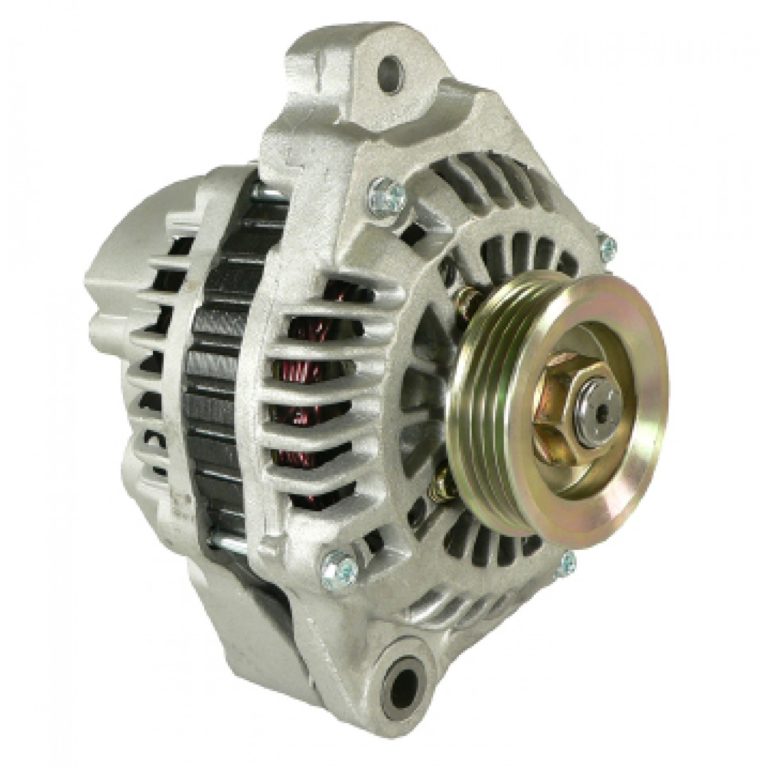

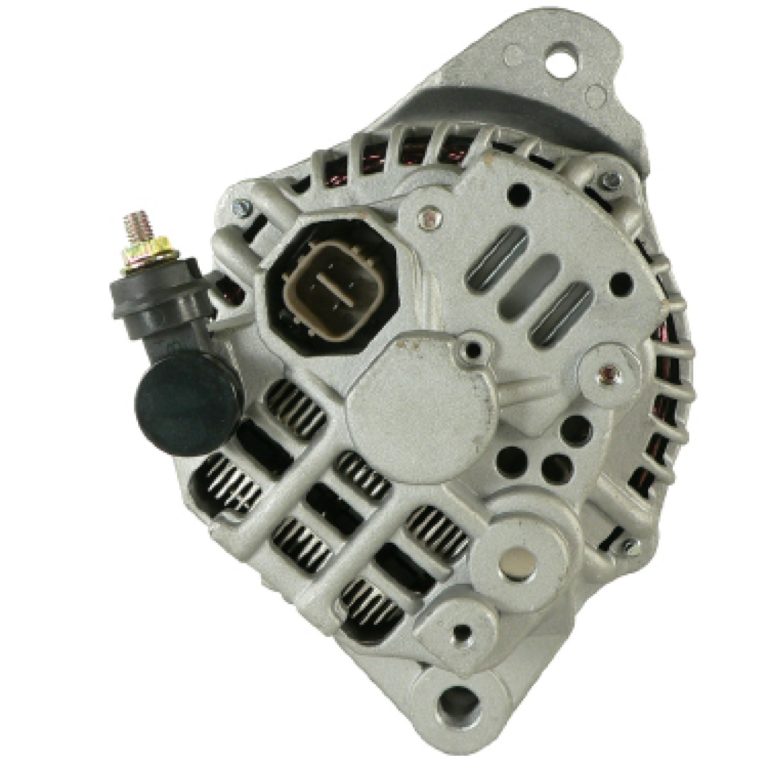

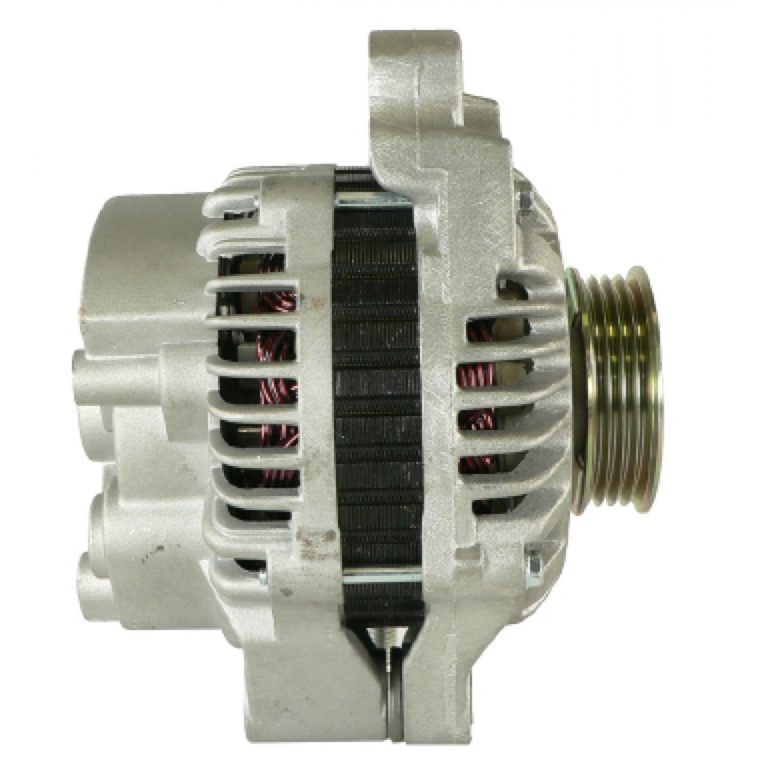

NEW Alternator for ACURA INTEGRA 1.8L 1997-2001; 400-48139, A5TA3591, 210-4190, [ACURA 31100P73A01, AHGA33]; LESTER 13762
$159.99
Specifications
| UNIT TYPE | Alternator |
| VOLT | 12 |
| AMPS | 70 |
| REGULATOR CLOCK | 10:00 |
| ROTATION DIRECTION | Counter Clockwise |
| MOUNT HOLE ID 1 | 8.500mm |
| MOUNT HOLE 1 TYPE | Unthreaded |
| MOUNT HOLE 2 TYPE | Unthreaded |
| MOUNTING EAR THICKNESS | 0.898″ |
| MOUNTING EAR THICKNESS | 22.800mm |
| MOUNTING EAR 2 THICKNESS | 2.343″ |
| MOUNTING EAR 2 THICKNESS | 59.500mm |
| FAN LOCATION | Internal |
| REGULATOR LOCATION | Internal |
| TERMINAL ID 2 | B+ |
| TERMINAL 2 SIZE | M6x1.00 |
| TERMINAL ID 3 | IG |
| TERMINAL 3 SIZE | Spade |
| TERMINAL ID 4 | C |
| TERMINAL 4 SIZE | Spade |
| TERMINAL ID 5 | L |
| TERMINAL 5 SIZE | Spade |
| TERMINAL ID 6 | FR |
| TERMINAL 6 SIZE | Spade |
| POLARITY | Negative |
| NUMBER OF GROOVES | 4 |
| GROOVE OD | 2.480″ |
| GROOVE OD | 63mm |
| PULLEY TYPE | Solid |
| PULLEY OUTER DIAMETER | 2.634″ |
| PULLEY OUTER DIAMETER | 66.900mm |
WRITE YOUR OWN REVIEW
We appreciate your feedback about our parts, services experience or anything which may help us to serve you better.
[testimonial_view id=”1″]
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ACURA | 31100P73A01, AHGA33 |
| ARROWHEAD | 400-48139, AMT0117 |
| DENSO | 210-4190 |
| LESTER | 13762 |
| MITSUBISHI | A5TA3591 |
Part fit
| Year | Make | Model | Engine |
|---|---|---|---|
| Year | Make | Model | Engine |
| 1997 | ACURA | INTEGRA | 1.8L |
| 1998 - 2001 | ACURA | INTEGRA | 1.8L |
