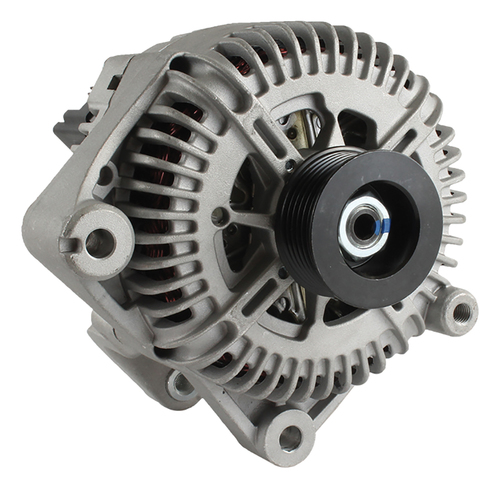

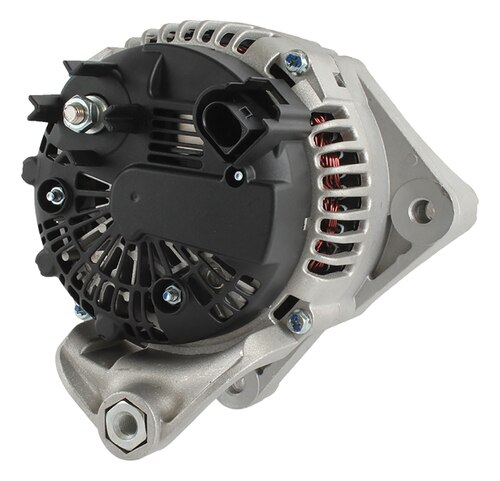

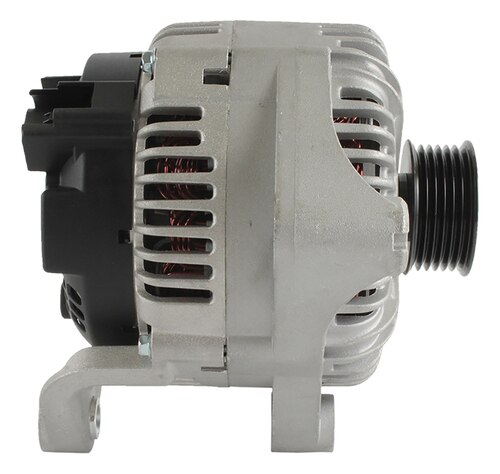

NEW Alternator for BMW 335d, M5 & M6 Applications; 400-40198, 12-31-7-834-160, 12-31-7-836-592, 2542613, 437556, 439559, 542613, TG17C011; LESTER 11262
$209.99
Specifications
| UNIT TYPE | ALTERNATOR |
| VOLT | 12 |
| AMPS | 170 |
| REGULATOR CLOCK | 2:00 |
| ROTATION DIRECTION | Clockwise |
| MOUNT HOLE ID 1 | 10.500mm |
| MOUNT HOLE 1 TYPE | Unthreaded |
| MOUNT HOLE 2 TYPE | Unthreaded |
| MOUNT HOLE ID 3 | M10x1.50 |
| MOUNT HOLE 3 TYPE | Threaded |
| MOUNTING EAR THICKNESS | 1.811″ |
| MOUNTING EAR THICKNESS | 46mm |
| MOUNTING EAR 2 THICKNESS | 1.122″ |
| MOUNTING EAR 2 THICKNESS | 28.500mm |
| MOUNTING EAR 3 THICKNESS | 0.925″ |
| MOUNTING EAR 3 THICKNESS | 23.500mm |
| FAN LOCATION | Internal |
| REGULATOR LOCATION | Internal |
| TERMINAL ID 2 | B+ |
| TERMINAL 2 SIZE | M8x1.25 |
| TERMINAL ID 3 | COM |
| TERMINAL 3 SIZE | Spade |
| TERMINAL ID 4 | N/C |
| TERMINAL 4 SIZE | Spade |
| POLARITY | Negative |
| NUMBER OF GROOVES | 6 |
| PULLEY TYPE | Solid |
| PULLEY OUTER DIAMETER | 2.283″ |
| PULLEY OUTER DIAMETER | 58mm |
| ADD’L INFO | 2-Blade Plug, Additional M10-1.5 Threaded Blind Hole on DE Frame |
WRITE YOUR OWN REVIEW
We appreciate your feedback about our parts, services experience or anything which may help us to serve you better.
[testimonial_view id=”1″]
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | 400-40198 |
| ARROWHEAD | AVA0107 |
| ARROWHEAD | 400-40060 |
| ARROWHEAD (OEM) | V439559 |
| J & N | 400-40198 |
| J & N | 400-40060 |
| LESTER | 11262 |
| BBB | 11262 |
| BBB NEW | 11262 |
| BMW | 12-31-7-834-160 |
| BMW | 12-31-7-836-592 |
| DIXIE | A-9506 |
| EXCEL | 10912 |
| IAT | A439559 |
| LUCAS ELECTRICAL EUROPE | LRA02319 |
| REMY LIGHT DUTY | 12888 |
| USA INDUSTRIES | A3262 |
| VALEO | TG17C011 |
| VALEO NEW | 439559 |
| VALEO REMAN | 437556 |
| VALEO SERVICE | 2542613 |
| WAGNER | 439559 |
| WILSON | 90-22-5592 |
| WILSON NEW | 90-22-5592 |
| WOOD AUTO | ALT14163 |
| WORLDWIDE | 12888 |
Part fit
| Year | Make | Model | Engine |
|---|---|---|---|
| Year | Make | Model | Engine |
| 2006 - 2010 | BMW | M5 | 5.0L S85 |
| 2006 - 2010 | BMW | M6 | 5.0L S85 |
| 2009 - 2011 | BMW | 335d | 3.0L M57M2 (Diesel) |
