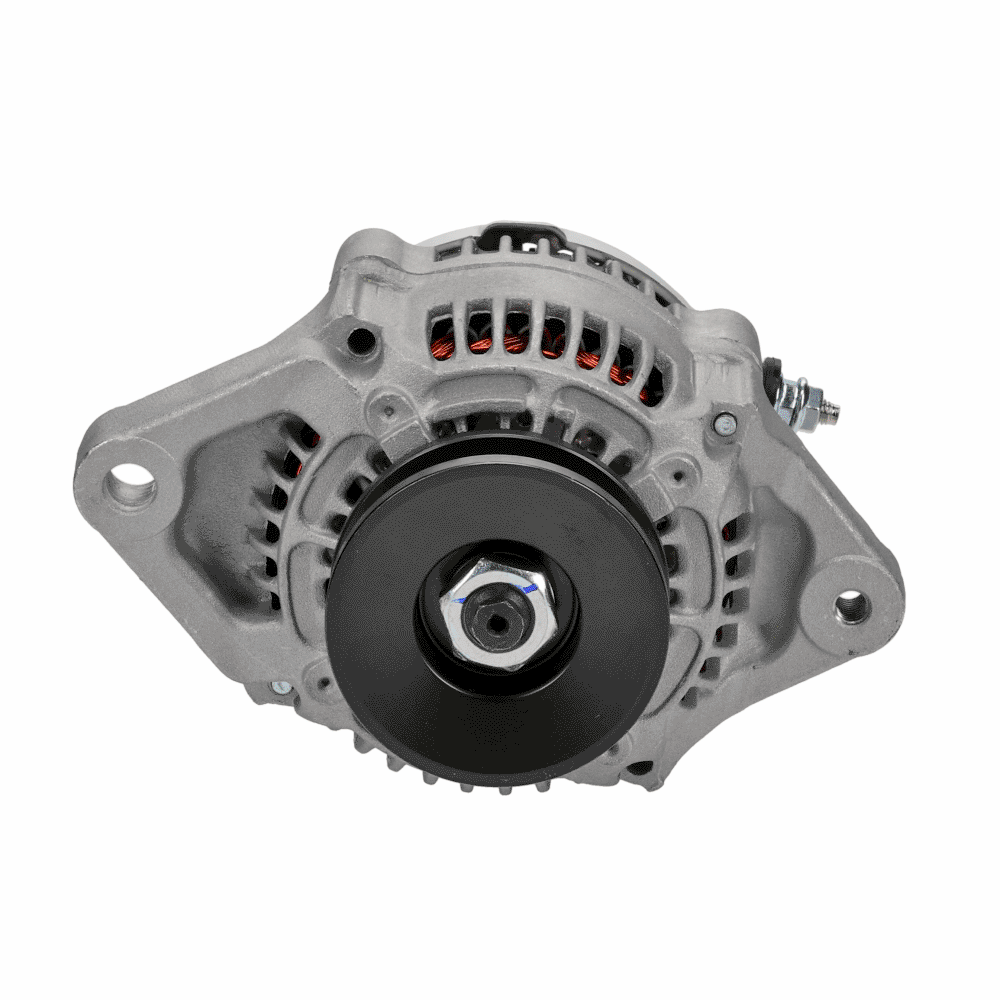

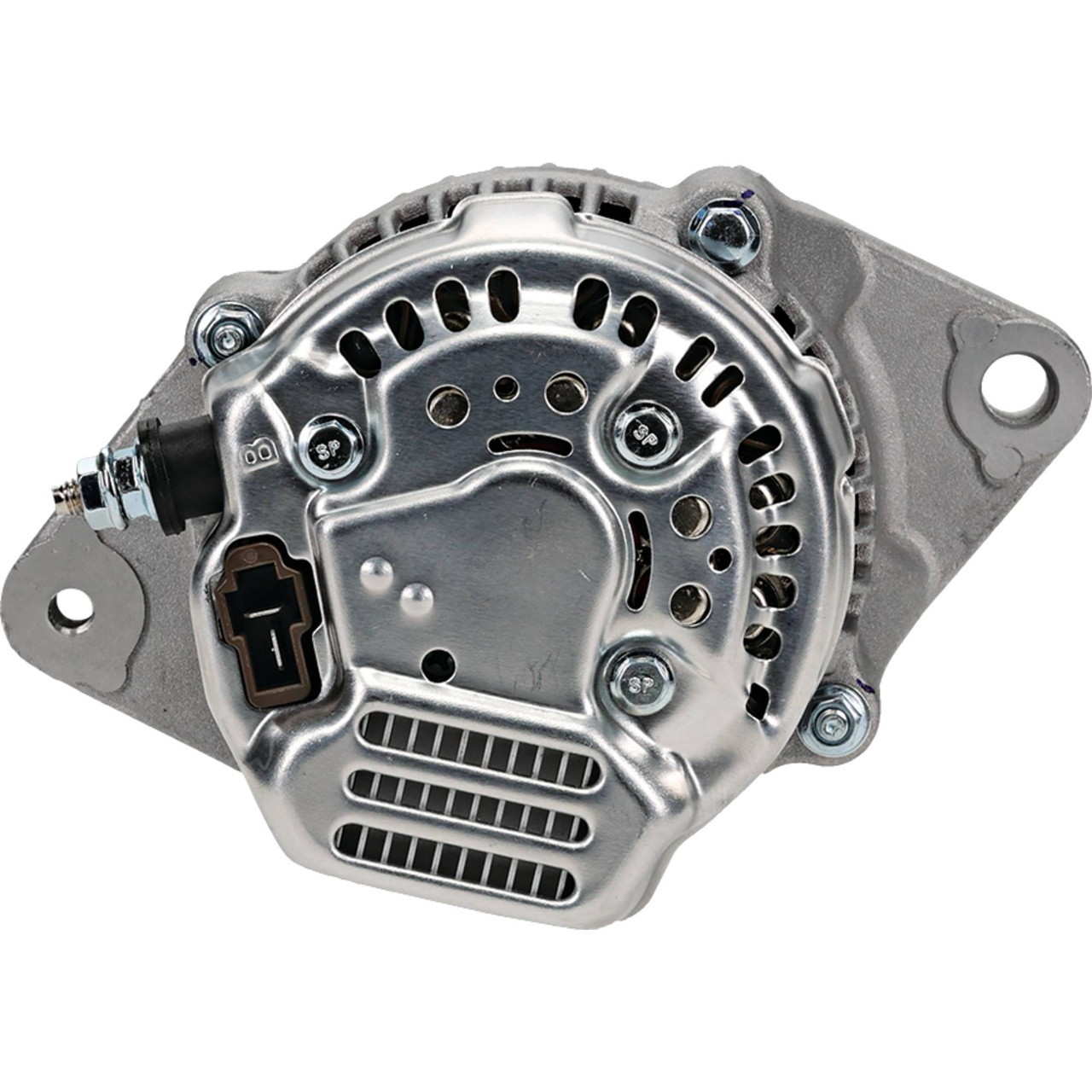

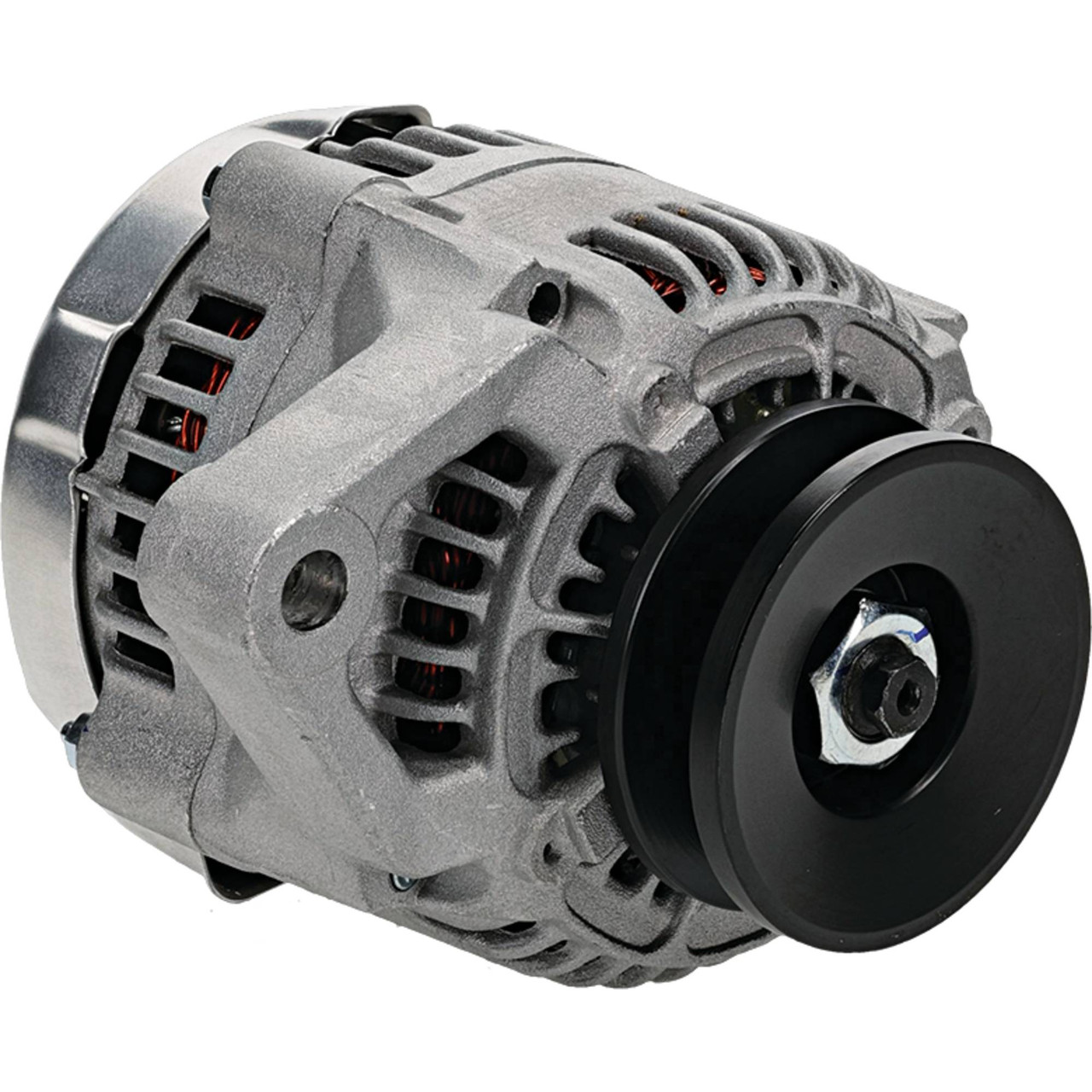

NEW Alternator for BOBCAT & POLARIS Utility Vehicle (UTV); 400-52273, 7020729, 3070341, 101211-259, 101211-2590, 101211-2591; LESTER 11559, 11691
$167.99
Specifications
| UNIT | Alternator |
| VOLT | 12 |
| AMPS | 60 |
| REGULATOR CLOCK | 12:00 |
| ROTATION DIRECTION | Clockwise |
| MOUNT HOLE ID 1 | M8x1.25 |
| MOUNT HOLE 1 TYPE | Threaded |
| MOUNT HOLE 2 TYPE | Unthreaded |
| MOUNTING EAR THICKNESS | 0.630″ |
| MOUNTING EAR THICKNESS | 16mm |
| MOUNTING EAR 2 THICKNESS | 0.815″ |
| MOUNTING EAR 2 THICKNESS | 20.700mm |
| FAN LOCATION | Internal |
| REGULATOR LOCATION | Internal |
| TERMINAL ID 2 | B+ |
| TERMINAL 2 SIZE | M6x1.00 |
| TERMINAL ID 3 | IG |
| TERMINAL 3 SIZE | Spade |
| TERMINAL ID 4 | L |
| TERMINAL 4 SIZE | Spade |
| POLARITY | Negative |
| NUMBER OF GROOVES | 1 |
| PULLEY TYPE | Solid |
| PULLEY OUTER DIAMETER | 2.709″ |
| PULLEY OUTER DIAMETER | 68.800mm |
| WARRANTY | 1 Year |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | AND0567, ND101211-2590 |
| BOBCAT | 7020729 |
| DENSO | 101211-259, 101211-2590, 101211-2591 |
| J&N ELECTRICAL PRODUCTS | 400-52209, 400-52210, 400-52273 |
| LESTER | 11559, 11691 |
| POLARIS | 3070341 |
| YANMAR | 129961-77200 |
Applications
Part fit
| MAKE | MODEL | ENGINE | YEAR |
| Bobcat | 3400 | 500cc, 498 24.8HP Diesel | |
| Bobcat | 3400XL | 500cc, 498 24.8HP Diesel | |
| Bobcat | 3450 | 500cc, 498 24.8HP Diesel | |
| Polaris | Ranger 900 4×4 Diesel | 2011, 2012, 2013, 2014 |
