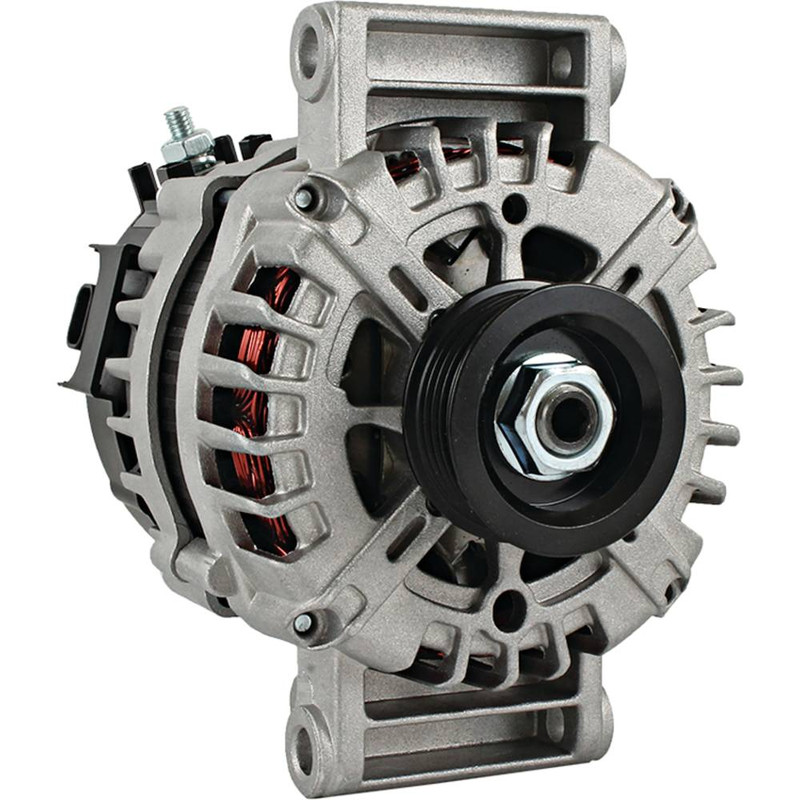

NEW Alternator for BUICK & CHEVROLET Applications; 400-40135, 13500316, 13588321, 2605324A, 849105, FG12S014, FG12S081; LESTER 11652, 11690
$319.99
Specifications
| UNIT TYPE | Alternator |
| VOLT | 12 |
| AMPS | 130 |
| REGULATOR CLOCK | 2:00 |
| ROTATION DIRECTION | Clockwise |
| MOUNT HOLE ID 1 | 8.600mm |
| MOUNT HOLE 1 TYPE | Unthreaded |
| MOUNT HOLE 2 TYPE | Slotted |
| MOUNT HOLE ID 3 | 10.200mm |
| MOUNT HOLE 3 TYPE | Unthreaded |
| MOUNTING EAR THICKNESS | 3.110″ |
| MOUNTING EAR THICKNESS | 79mm |
| MOUNTING EAR 2 THICKNESS | 3.094″ |
| MOUNTING EAR 2 THICKNESS | 78.600mm |
| MOUNTING EAR 3 THICKNESS | 3.094″ |
| MOUNTING EAR 3 THICKNESS | 78.600mm |
| FAN LOCATION | Internal |
| REGULATOR LOCATION | Internal |
| TERMINAL ID 2 | B+ |
| TERMINAL 2 SIZE | M8x1.25 |
| TERMINAL ID 3 | F |
| TERMINAL 3 SIZE | Spade |
| TERMINAL ID 4 | L |
| TERMINAL 4 SIZE | Spade |
| POLARITY | Negative |
| NUMBER OF GROOVES | 5 |
| GROOVE OD | 2.205″ |
| GROOVE OD | 56mm |
| PULLEY TYPE | Solid |
| PULLEY OUTER DIAMETER | 2.402″ |
| PULLEY OUTER DIAMETER | 61mm |
