NEW Alternator for CADILLAC SRX & STS Applications w/ 3.6L Engines; AND0316, 104210-3320, 104210-4350, 210-0536, 25751146, 25756441; LESTER 11046
December 13, 2019
NEW Alternator for CADILLAC Applications; AND0404, 104210-3340, 104210-4380, 25750935, 25766345; LESTER 11037
December 13, 2019

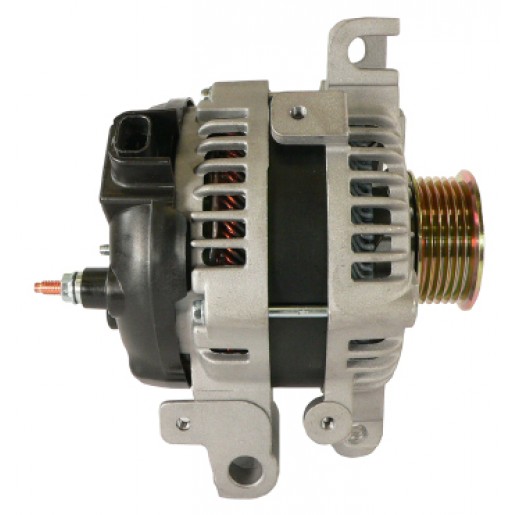

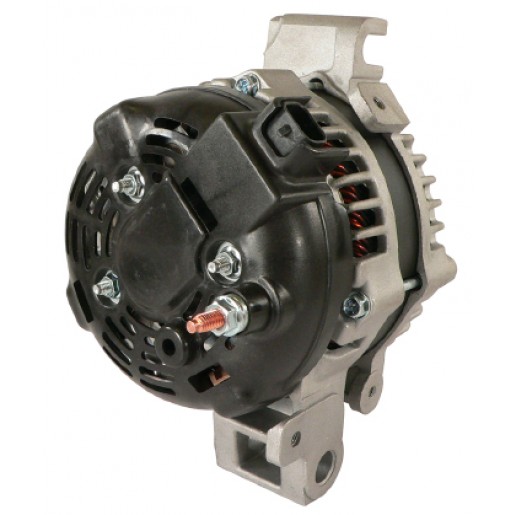

NEW Alternator for CADILAC CTS Applications; AND0338, 104210-3190, 104210-3191, 104210-4430, 210-0531, 25751145, 25756439; LESTER 11044
$289.99
Specifications
| UNIT TYPE | Alternator |
| FAMILY | Denso SC (Hairpin) |
| VOLT | 12 |
| AMPS | 140 |
| REGULATOR CLOCK | 1:00 |
| ROTATION DIRECTION | Clockwise |
| MOUNT HOLE 1 TYPE | Slotted |
| MOUNT HOLE 2 TYPE | Unthreaded |
| MOUNT HOLE ID 3 | 12.400mm |
| MOUNT HOLE 3 TYPE | Unthreaded |
| MOUNTING EAR THICKNESS | 1.972″ |
| MOUNTING EAR THICKNESS | 50.100mm |
| MOUNTING EAR 2 THICKNESS | 0.787″ |
| MOUNTING EAR 2 THICKNESS | 20mm |
| MOUNTING EAR 3 THICKNESS | 1.957″ |
| MOUNTING EAR 3 THICKNESS | 49.700mm |
| FAN LOCATION | Internal |
| REGULATOR LOCATION | Internal |
| TERMINAL ID 2 | B+ |
| TERMINAL 2 SIZE | M6x1.00 |
| TERMINAL ID 3 | F |
| TERMINAL 3 SIZE | Spade |
| TERMINAL ID 4 | L |
| TERMINAL 4 SIZE | Spade |
| POLARITY | Negative |
| NUMBER OF GROOVES | 6 |
| PULLEY TYPE | Solid |
| PULLEY OUTER DIAMETER | 2.244″ |
| PULLEY OUTER DIAMETER | 57mm |
| WARRANTY | 1 Year |
WRITE YOUR OWN REVIEW
We appreciate your feedback about our parts, services experience or anything which may help us to serve you better.
[testimonial_view id=”1″]
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | AND0338 |
| ARROWHEAD (OEM) | BAL8521X |
| ARROWHEAD (OEM) | VND0338 |
| J & N | 400-52164R |
| J & N | 400-52589R |
| LESTER | 11044 |
| BBB | 11044 |
| BBB NEW | 11044 |
| DENSO | 104210-3191 |
| DENSO | 104210-4430 |
| DIXIE | A-80189 |
| EXCEL | 10762 |
| GENERAL MOTORS | 25756439 |
| GENERAL MOTORS | 25751145 |
| NAPA POWER PREMIUM PLUS | 213-9600 |
| REMY LIGHT DUTY | 12794 |
| REMY LIGHT DUTY | 12665 |
| USA INDUSTRIES | A3044 |
| WAI | 11044N |
| WILSON | 90-29-5532 |
| WILSON NEW | 90-29-5532 |
| WORLDWIDE | 12794 |
| WORLDWIDE | 12665 |
Part fit
| Year | Make | Model | Engine |
|---|---|---|---|
| Year | Make | Model | Engine |
| 2004 - 2007 | CADILLAC | CTS | 3.6L(217) V6 |
| 2005 - 2007 | CADILLAC | CTS | 2.8L(170) V6 |
