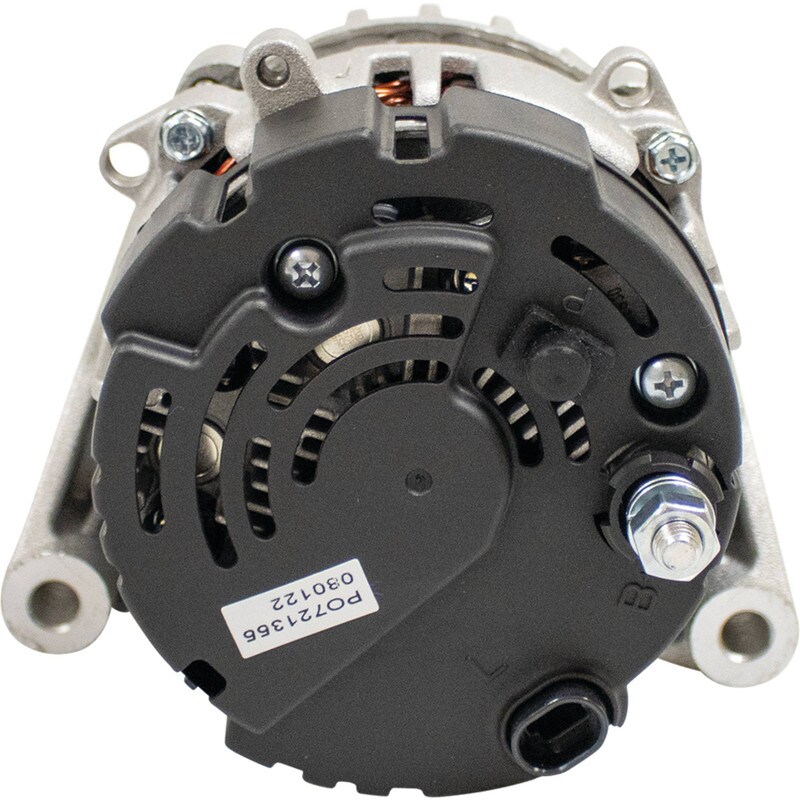

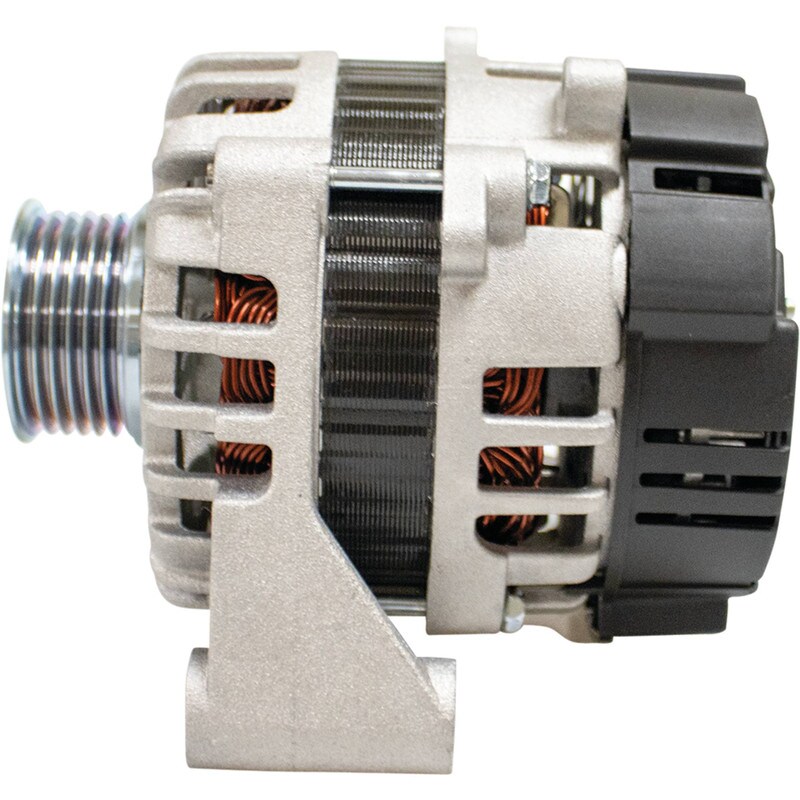

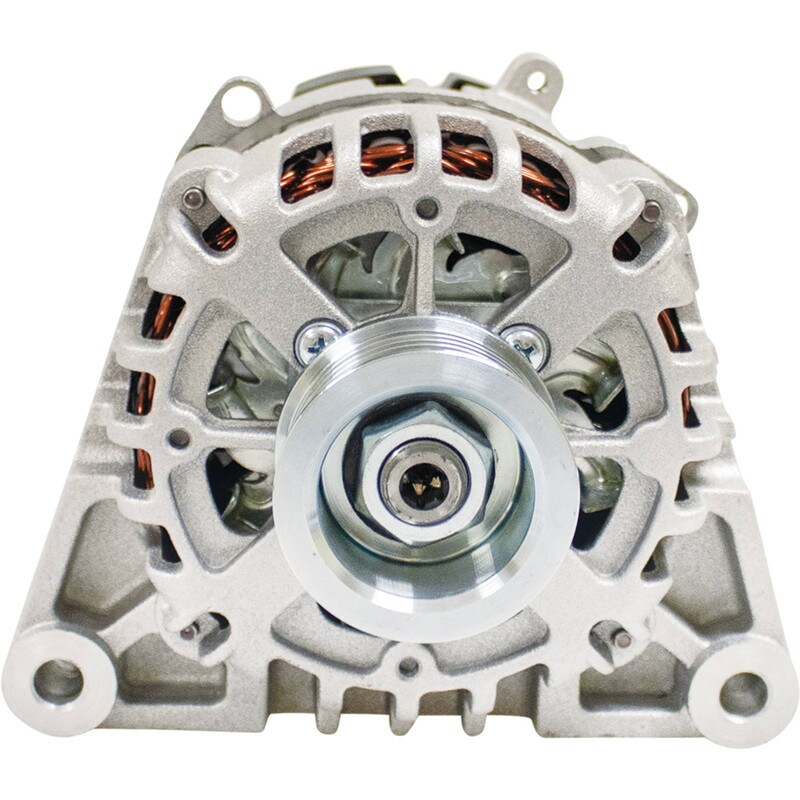

NEW Alternator for Engines - Marine Applications; 400-40056, 2655300, 425300, 600113, A0002655300,3862665, 3884950, 3962665; LESTER 12671

NEW Alternator for Engines - Marine Applications; 400-40056, 2655300, 425300, 600113, A0002655300,3862665, 3884950, 3962665; LESTER 12671 - Image 2

NEW Alternator for Engines – Marine Applications; 400-40056, 2655300, 425300, 600113, A0002655300,3862665, 3884950, 3962665; LESTER 12671

Name: NEW Alternator for Engines - Marine Applications; 400-40056, 2655300, 425300, 600113, A0002655300,3862665, 3884950, 3962665; LESTER 12671
SKU: 9693
Availability: InStock

$209.99

SAE J1171 Certified

Categories: Alternator, Engines - Marine, Marine Inboard, Marine Outboard

Specifications

UNIT TYPE	Alternator
Volt	12
Amps	75
Regulator Clock	3:00
Mount Hole ID 1	10.100mm
Mount Hole 1 Type	Unthreaded
Mount Hole 2 Type	Unthreaded
Mounting Ear Thickness	2.004″
Mounting Ear Thickness	50.900mm
Mounting Ear 2 Thickness	2.004″
Mounting Ear 2 Thickness	50.900mm
Fan Location	Internal
Regulator Location	Internal
Terminal ID 2	B+
Terminal 2 Size	M8x1.25
Terminal ID 3	L
Terminal 3 Size	Spade
Terminal ID 4	N/C
Terminal 4 Size	Spade
Polarity	Negative
Number of Grooves	6
Pulley Type	Solid
Pulley Outer Diameter	2.126″
Pulley Outer Diameter	54mm
Warranty	1 Year

Applications

MAKE	MODEL	ENGINE	YEAR
Volvo Penta	3.0GLM	181cu in, 3.0L 4 cyl, Gas	2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007
Volvo Penta	3.0GLM	3000cc, 3L 4 cyl, Gas	2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007
Volvo Penta	3.0GLP	181cu in, 3.0L 4 cyl, Gas	2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007
Volvo Penta	3.0GLP	3000cc, 3L 4 cyl, Gas	2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007
Volvo Penta	4.3GXi Osi	262cu in, 4.3L 6 cyl, Gas	2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007
Volvo Penta	4.3GXi	4300cc, 4.3L 6 cyl, Gas	2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007
Volvo Penta	4.3Osi	4300cc, 4.3L 6 cyl, Gas	2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007
Volvo Penta	5.0GL	305cu in, 5.0L 8 cyl, Gas	2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007
Volvo Penta	5.0GL	5000cc, 5L 8 cyl	2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007
Volvo Penta	5.0GXi Osi	305cu in, 5.0L 8 cyl, Gas	2001, 2002, 2003, 2004, 2005, 2006, 2007
Volvo Penta	5.0GXi	5000cc, 5L 8 cyl	2001, 2002, 2003, 2004, 2005, 2006, 2007
Volvo Penta	5.0Osi	5000cc, 5L 8 cyl	2001, 2002, 2003, 2004, 2005, 2006, 2007
Volvo Penta	5.7Gi	350cu in, 5.7L 8 cyl, Gas	2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007
Volvo Penta	5.7Gi	350cu in, 5.7L 8 cyl, Gas	2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007
Volvo Penta	5.7Gi	5700cc, 5.7L 8 cyl, Gas	2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007
Volvo Penta	5.7Gi	5700cc, 5.7L 8 cyl, Gas	2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007
Volvo Penta	5.7GiL	350cu in, 5.7L 8 cyl, Gas	2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007
Volvo Penta	5.7GiL	350cu in, 5.7L 8 cyl, Gas	2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007
Volvo Penta	5.7GiL	5700cc, 5.7L 8 cyl, Gas	2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007
Volvo Penta	5.7GiL	5700cc, 5.7L 8 cyl, Gas	2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007
Volvo Penta	5.7GXi	350cu in, 5.7L 8 cyl, Gas	2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007
Volvo Penta	5.7GXi	350cu in, 5.7L 8 cyl, Gas	2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007
Volvo Penta	5.7GXi	5700cc, 5.7L 8 cyl, Gas	2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007
Volvo Penta	5.7GXi	5700cc, 5.7L 8 cyl, Gas	2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007
Volvo Penta	5.7GXiL	350cu in, 5.7L 8 cyl, Gas	2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007
Volvo Penta	5.7GXiL	350cu in, 5.7L 8 cyl, Gas	2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007
Volvo Penta	5.7GXiL	5700cc, 5.7L 8 cyl, Gas	2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007
Volvo Penta	5.7GXiL	5700cc, 5.7L 8 cyl, Gas	2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007
Volvo Penta	5.7OSi	350cu in, 5.7L 8 cyl, Gas	2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007
Volvo Penta	5.7OSi	350cu in, 5.7L 8 cyl, Gas	2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007
Volvo Penta	5.7OSi	5700cc, 5.7L 8 cyl, Gas	2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007
Volvo Penta	5.7OSi	5700cc, 5.7L 8 cyl, Gas	2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007
Volvo Penta	5.7OSXi	350cu in, 5.7L 8 cyl, Gas	2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007
Volvo Penta	5.7OSXi	350cu in, 5.7L 8 cyl, Gas	2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007
Volvo Penta	5.7OSXi	5700cc, 5.7L 8 cyl, Gas	2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007
Volvo Penta	5.7OSXi	5700cc, 5.7L 8 cyl, Gas	2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007
Volvo Penta	8.1Gi	496cu in, 8.1L 8 cyl, Gas	2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007
Volvo Penta	8.1Gi	8100cc, 8.1L 8 cyl, Gas	2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007
Volvo Penta	8.1GiL	496cu in, 8.1L 8 cyl, Gas	2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007
Volvo Penta	8.1GiL	8100cc, 8.1L 8 cyl, Gas	2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007
Volvo Penta	8.1GXi	496cu in, 8.1L 8 cyl, Gas	2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007
Volvo Penta	8.1GXi	8100cc, 8.1L 8 cyl, Gas	2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007
Volvo Penta	8.1GXiL	496cu in, 8.1L 8 cyl, Gas	2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007
Volvo Penta	8.1GXiL	8100cc, 8.1L 8 cyl, Gas	2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007
Volvo Penta	8.1OSI	496cu in, 8.1L 8 cyl, Gas	2001, 2002, 2003, 2004, 2005, 2006, 2007
Volvo Penta	8.1OSI	8100cc, 8.1L 8 cyl, Gas	2001, 2002, 2003, 2004, 2005, 2006, 2007
Volvo Penta	IPS500G	496cu in, 8.1L 8 cyl, Gas	2007
Volvo Penta	IPS500G	8100cc, 8.1L 8 cyl, Gas	2007

Manufacturer Name	Manufacturer Part #
Arrowhead	400-40014, AVA0071
EMP	4-5882
J&N	400-40014, 400-40056
Lester	12671
Lucas Electric	LRA03018
Mercury Marine	8M6007508
Sierra Marine	18-5882
Valeo	2655300, 425300, 600113, A0002655300
Volvo	3862665, 3884950, 3962665
