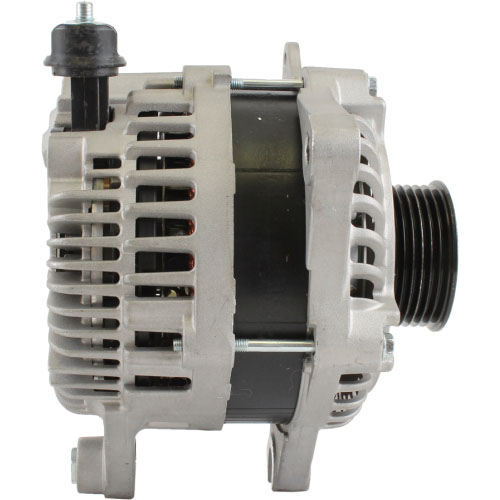

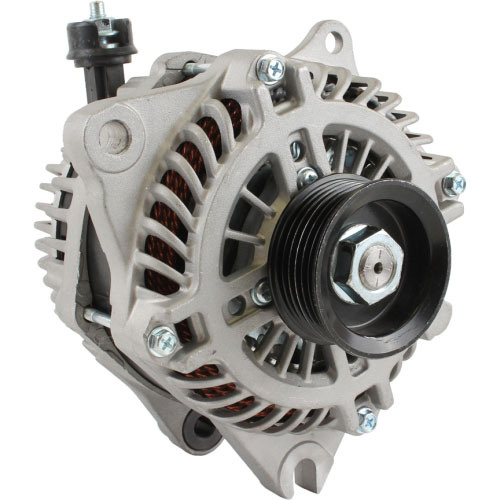

NEW Alternator for FORD & LINCOLN Applications; 400-48166, 8A4T-10300AB, 8A4T-10300-AC, 8A4T-10300-AD, A3TX0091; LESTER 11271
$329.99
Specifications
| UNIT TYPE | Alternator |
| VOLT | 12 |
| AMPS | 175 |
| REGULATOR CLOCK | 11:00 |
| ROTATION DIRECTION | Clockwise |
| MOUNT HOLE ID 1 | 10.500mm |
| MOUNT HOLE 1 TYPE | Unthreaded |
| MOUNT HOLE 2 TYPE | Slotted |
| MOUNT HOLE ID 3 | M10x1.50 |
| MOUNT HOLE 3 TYPE | Threaded |
| MOUNTING EAR THICKNESS | 0.630″ |
| MOUNTING EAR THICKNESS | 16mm |
| MOUNTING EAR 2 THICKNESS | 0.614″ |
| MOUNTING EAR 2 THICKNESS | 15.600mm |
| MOUNTING EAR 3 THICKNESS | 1.024″ |
| MOUNTING EAR 3 THICKNESS | 26mm |
| FAN LOCATION | Internal |
| REGULATOR LOCATION | Internal |
| TERMINAL ID 2 | B+ |
| TERMINAL 2 SIZE | M8x1.25 |
| TERMINAL ID 3 | AS |
| TERMINAL 3 SIZE | Spade |
| TERMINAL ID 4 | RC |
| TERMINAL 4 SIZE | Spade |
| TERMINAL ID 5 | L |
| TERMINAL 5 SIZE | Spade |
| POLARITY | Negative |
| NUMBER OF GROOVES | 6 |
| PULLEY TYPE | Solid |
| PULLEY OUTER DIAMETER | 2.461″ |
| PULLEY OUTER DIAMETER | 62.500mm |
