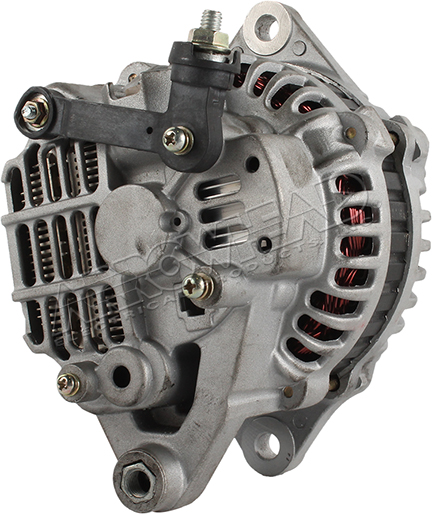

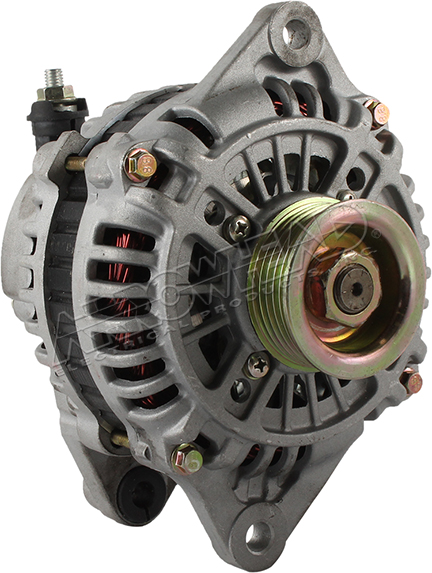

NEW Alternator for MAZDA 6 3.0L V6 Application; 400-48145, AJ57-18-300A, AJ57-18-300B, A3TJ0291, A3TJ0291A; LESTER 11007
December 1, 2019
NEW Alternator for FOR & MAZDA Applications, 400-48024, F32Z10346A, F32Z-10346-A, GLE323, A2T33891, A2T33892, A2TB5891, A2TB5891AC, A2TB5891ZC; LESTER 13445, 13891
December 1, 2019
NEW Alternator for FORD & MAZDA Applications; 400-48282, F02Z-10346-B, F02Z-10346-D, F02Z-10346-F, A002T19991, A002T19991ZC, A2T19991, A2T19991A, A2T20191, A2T20191ZC; LESTER 13297, 13347
$194.99
Available on backorder
Specifications
| UNIT TYPE | Alternator |
| VOLT | 12 |
| AMPS | 70 |
| REGULATOR CLOCK | 2:00 |
| ROTATION DIRECTION | Clockwise |
| MOUNT HOLE ID 1 | M8-1.25 |
| MOUNT HOLE 1 TYPE | Threaded |
| MOUNT HOLE ID 2 | M8-1.25 |
| MOUNT HOLE 2 TYPE | Threaded |
| MOUNT HOLE ID 3 | 10.500mm |
| MOUNT HOLE 3 TYPE | Unthreaded |
| MOUNTING EAR THICKNESS | 0.492″ |
| MOUNTING EAR THICKNESS | 12.500mm |
| MOUNTING EAR 2 THICKNESS | 0.492″ |
| MOUNTING EAR 2 THICKNESS | 12.500mm |
| MOUNTING EAR 3 THICKNESS | 0.630″ |
| MOUNTING EAR 3 THICKNESS | 16mm |
| FAN LOCATION | Internal |
| REGULATOR LOCATION | Internal |
| TERMINAL ID 2 | B+ |
| TERMINAL 2 SIZE | M6-1.0 |
| TERMINAL ID 3 | S |
| TERMINAL 3 SIZE | Spade |
| TERMINAL ID 4 | L |
| TERMINAL 4 SIZE | Spade |
| POLARITY | Negative |
| NUMBER OF GROOVES | 3 |
| GROOVE OD | 2.362″ |
| GROOVE OD | 60mm |
| PULLEY TYPE | Solid |
| PULLEY OUTER DIAMETER | 2.539″ |
| PULLEY OUTER DIAMETER | 64.500mm |
WRITE YOUR OWN REVIEW
We appreciate your feedback about our parts, services experience or anything which may help us to serve you better.
[testimonial_view id=”1″]
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | A2T19991, AMT0038 |
| BOSCH | AL272N, AL272X |
| DENSO | 210-4101, 210-4108 |
| FORD | F02Z-10346-B, F02Z-10346-D, F02Z-10346-F |
| LESTER | 13297, 13347 |
| LUCAS ELECTRIC | LRA00790, LRA02627 |
| MAZDA | E285-18-300B, F285-18-300B, F285-18-300C, F290-18-300, F290-18-300A, F290-18-300B, F290-18-300R00 |
| MITSUBISHI | A002T19991, A002T19991ZC, A2T19991, A2T19991A, A2T20191, A2T20191ZC |
| VALEO | TA000A62002, VA252 |
Part fit
| Year | Make | Model | Engine |
|---|---|---|---|
| Year | Make | Model | Engine |
| 1990 - 1992 | FORD | PROBE | 2.2L(133) L4 |
| 1990 - 1992 | MAZDA | 626 | 2.2L |
| 1990 - 1992 | MAZDA | MX-6 | 2.2L |
