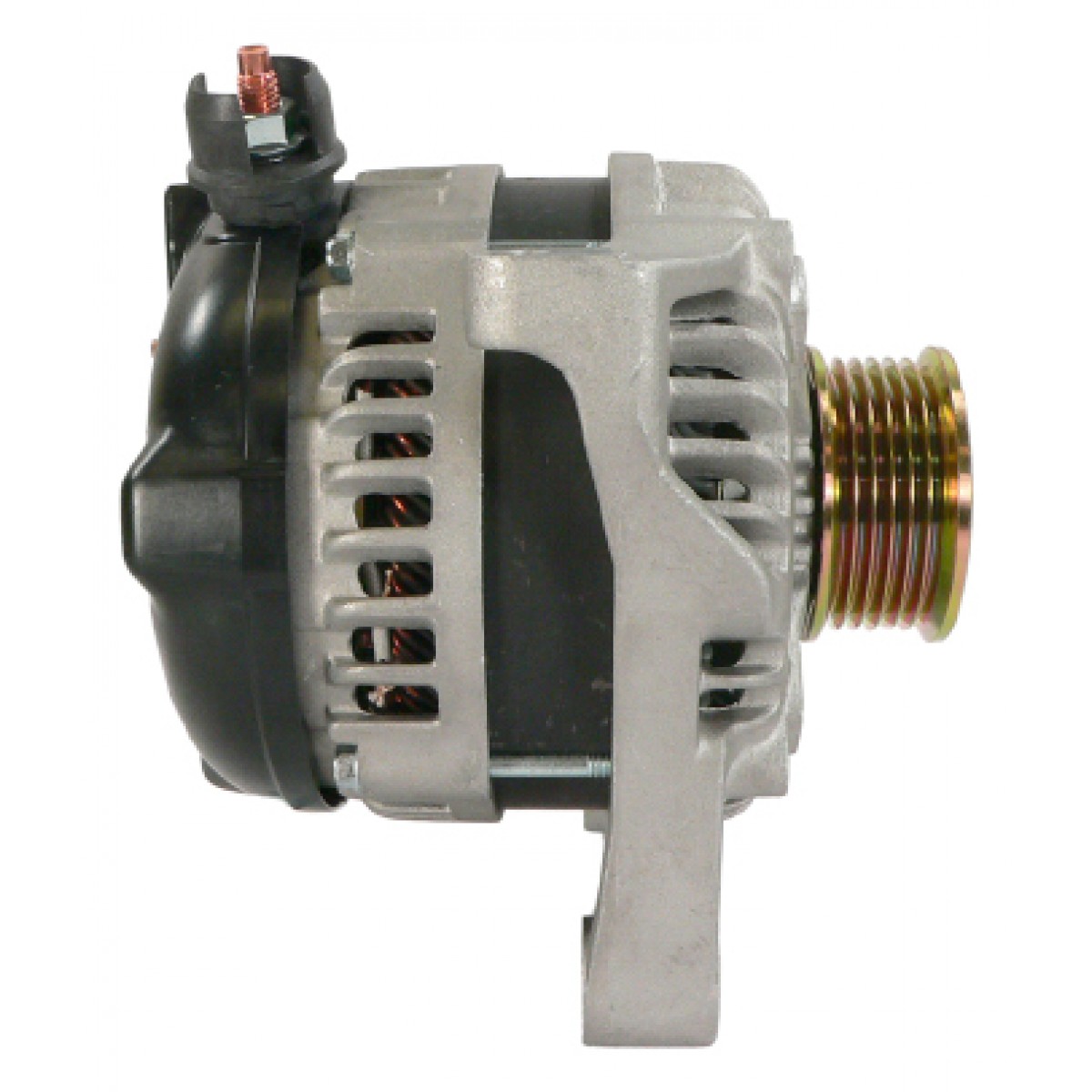

NEW Alternator for FORD, LINCOLN & MERCURY Applications; AND0492, 104210-1110, 104210-5970, 210-0703, 9L3T-10300-CB, 9L3Z-10346-C, AL1T-10300-AA; LESTER 11292
$289.99
Specifications
| UNIT TYPE | Alternator |
| FAMILY | Denso SC (Hairpin) |
| VOLT | 12 |
| AMPS | 150 |
| REGULATOR CLOCK | 11:30 |
| ROTATION DIRECTION | Clockwise |
| MOUNT HOLE ID 1 | M6x1.00 |
| MOUNT HOLE 1 TYPE | Threaded |
| MOUNT HOLE ID 2 | 9mm |
| MOUNT HOLE 2 TYPE | Slotted |
| MOUNT HOLE ID 3 | M6x1.00 |
| MOUNT HOLE 3 TYPE | Threaded |
| MOUNT HOLE ID 4 | 9mm |
| MOUNT HOLE 4 TYPE | Slotted |
| MOUNTING EAR THICKNESS | 0.630″ |
| MOUNTING EAR THICKNESS | 16mm |
| MOUNTING EAR 2 THICKNESS | 1.008″ |
| MOUNTING EAR 2 THICKNESS | 25.600mm |
| MOUNTING EAR 3 THICKNESS | 0.630″ |
| MOUNTING EAR 3 THICKNESS | 16mm |
| MOUNTING EAR 4 THICKNESS | 1.008″ |
| MOUNTING EAR 4 THICKNESS | 25.600mm |
| FAN LOCATION | Internal |
| REGULATOR LOCATION | Internal |
| TERMINAL ID 2 | B+ |
| TERMINAL 2 SIZE | M8x1.25 |
| TERMINAL ID 3 | BVS |
| TERMINAL 3 SIZE | Spade |
| TERMINAL ID 4 | RC |
| TERMINAL 4 SIZE | Spade |
| TERMINAL ID 5 | LI |
| TERMINAL 5 SIZE | Spade |
| POLARITY | Negative |
| NUMBER OF GROOVES | 6 |
| PULLEY TYPE | Solid |
| PULLEY OUTER DIAMETER | 2.339″ |
| PULLEY OUTER DIAMETER | 59.400mm |
