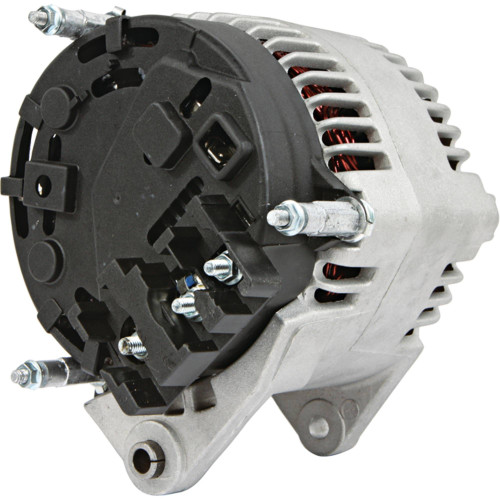

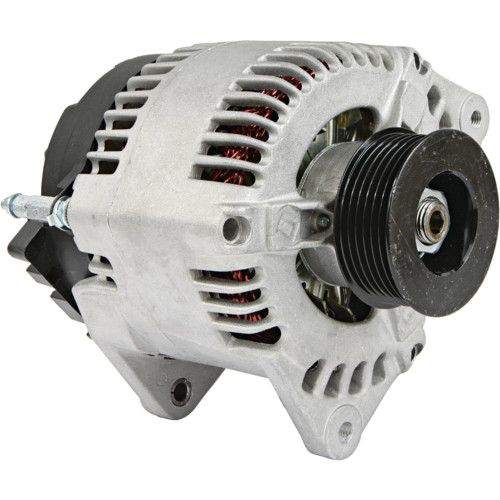

NEW Alternator for FORD / NEW HOLLAND Tractors; 400-30031, 65GB-10300-LA, 82003307, 82010242, [LUCAS ELECTRIC 54022527, 54022568, LRA01374, LRB304]; LESTER 12094
NEW Alternator for FORD / NEW HOLLAND Tractors; 400-30031, 65GB-10300-LA, 82003307, 82010242, [LUCAS ELECTRIC 54022527, 54022568, LRA01374, LRB304]; LESTER 12094 - Image 2

NEW Alternator for FORD / NEW HOLLAND Tractors; 400-30031, 65GB-10300-LA, 82003307, 82010242, [LUCAS ELECTRIC 54022527, 54022568, LRA01374, LRB304]; LESTER 12094

$247.24



Categories: ,

Specifications

UNIT TYPE Alternator
FAMILY Lucas A127
VOLT 12
AMPS 100
REGULATOR CLOCK 5:00
ROTATION DIRECTION Clockwise
MOUNT HOLE ID 1 M8x1.25
MOUNT HOLE 1 TYPE Threaded
MOUNT HOLE 2 TYPE Unthreaded
MOUNT HOLE ID 3 8.400mm
MOUNT HOLE 3 TYPE Unthreaded
MOUNTING EAR THICKNESS 0.531″
MOUNTING EAR THICKNESS 13.500mm
MOUNTING EAR 2 THICKNESS 0.539″
MOUNTING EAR 2 THICKNESS 13.700mm
MOUNTING EAR 3 THICKNESS 0.787″
MOUNTING EAR 3 THICKNESS 20mm
FAN LOCATION Internal
REGULATOR LOCATION Internal
TERMINAL ID 2 B+
TERMINAL 2 SIZE M6x1.00
TERMINAL ID 3 D+
TERMINAL 3 SIZE M5x0.8
TERMINAL ID 4 W
TERMINAL 4 SIZE M5x0.8
NUMBER OF GROOVES 6
PULLEY TYPE Solid
PULLEY OUTER DIAMETER 2.752″
PULLEY OUTER DIAMETER 69.900mm
