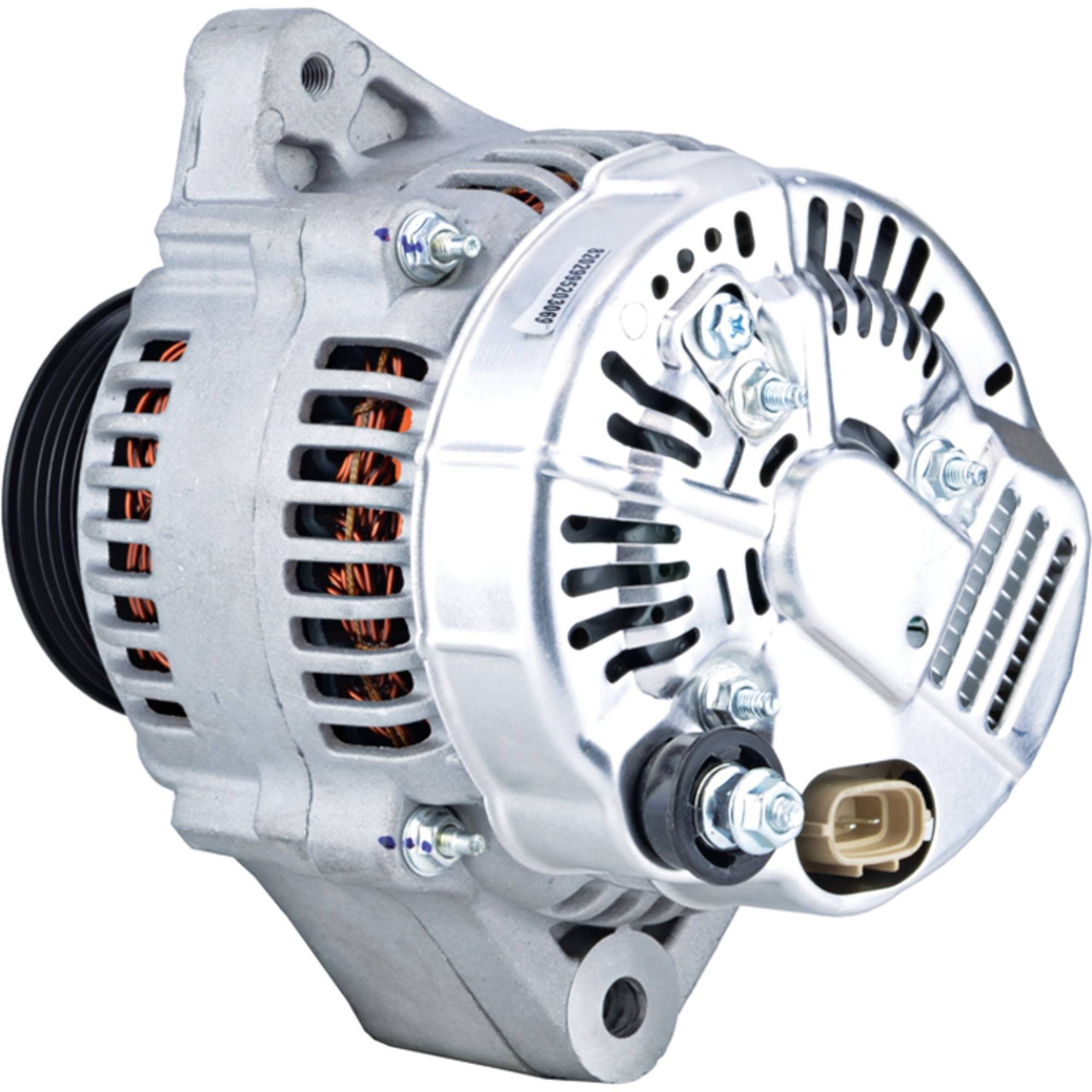

December 11, 2022NEW Alternator for JLG/GRADALL INDUSTRIES & KOMATSU Applications; 400-52442, 102211-3290, 70024276, 600-861-1930; LESTER 20788
$249.99
Specifications
UNIT TYPE | Alternator |
VOLT | 12 |
AMPS | 120 |
REGULATOR CLOCK | 6:00 |
ROTATION DIRECTION | Clockwise |
MOUNT HOLE ID 1 | M8x1.25 |
MOUNT HOLE 1 TYPE | Threaded |
MOUNT HOLE 2 TYPE | Unthreaded |
MOUNTING EAR THICKNESS | 0.874″ |
MOUNTING EAR THICKNESS | 22.200mm |
MOUNTING EAR 2 THICKNESS | 2.256″ |
MOUNTING EAR 2 THICKNESS | 57.300mm |
FAN LOCATION | Internal |
REGULATOR LOCATION | Internal |
TERMINAL ID 2 | B+ |
TERMINAL 2 SIZE | M6x1.00 |
TERMINAL ID 3 | P |
TERMINAL 3 SIZE | Spade |
TERMINAL ID 4 | IG |
TERMINAL 4 SIZE | Spade |
TERMINAL ID 5 | L |
TERMINAL 5 SIZE | Spade |
POLARITY | Negative |
NUMBER OF GROOVES | 8 |
PULLEY TYPE | Solid |
PULLEY OUTER DIAMETER | 3.299″ |
PULLEY OUTER DIAMETER | 83.800mm |
WARRANTY | 1 Year |
Part Number & Interchanges
Manufacturer Name | Manufacturer Part # |
ARROWHEAD | AND0644 |
DENSO | 102211-3290 |
J&N ELECTRICAL PRODUCTS | 400-52442 |
JLG/GRADALL INDUSTRIES | 70024276 |
KOMATSU | 600-861-1930 |
LESTER | 20788 |
