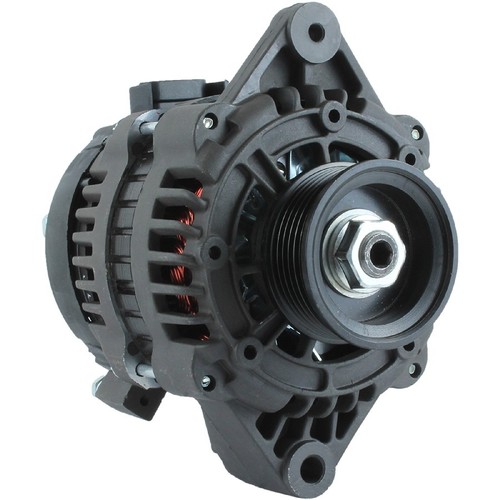

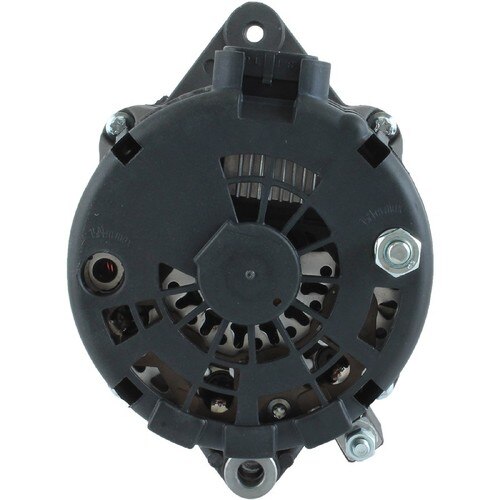

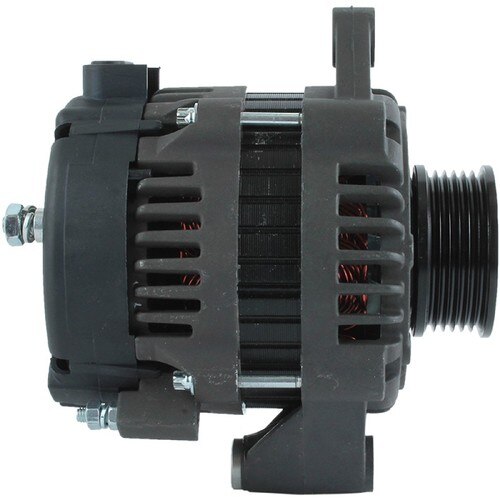

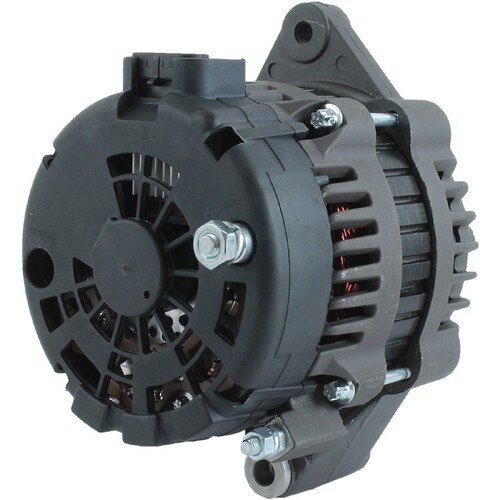

NEW Alternator for MARINE Applications; 400-12410; LESTER 8723
$199.99
Specifications
| UNIT TYPE | Alternator |
| CRITICAL NOTE | Any High Amp Upgrade Needs to Be Professionally Installed, With Special Attention Paid to the Size of the Load Carrying Cables, Battery Condition, and Clean Connections. |
| FAMILY | Delco 11SI |
| COLOR | Black Painted |
| VOLT | 12 |
| AMPS | 150 |
| REGULATOR CLOCK | 12:30 |
| QUALITY TYPE | High Output Standard |
| MOUNT HOLE ID 1 | M8x1.25 |
| MOUNT HOLE 1 TYPE | Threaded |
| MOUNT HOLE 2 TYPE | Unthreaded |
| MOUNTING EAR THICKNESS | 0.650″ |
| MOUNTING EAR THICKNESS | 16.500mm |
| MOUNTING EAR 2 THICKNESS | 2.161″ |
| MOUNTING EAR 2 THICKNESS | 54.900mm |
| FAN LOCATION | Internal |
| REGULATOR LOCATION | Internal |
| TERMINAL ID 2 | B+ |
| TERMINAL 2 SIZE | M8x1.25 |
| TERMINAL ID 3 | P |
| TERMINAL 3 SIZE | Spade |
| TERMINAL ID 4 | L |
| TERMINAL 4 SIZE | Spade |
| TERMINAL ID 5 | IG |
| TERMINAL 5 SIZE | Spade |
| TERMINAL ID 6 | S |
| TERMINAL 6 SIZE | Spade |
| POLARITY | Negative |
| NUMBER OF GROOVES | 6 |
| PULLEY TYPE | Solid |
| PULLEY OUTER DIAMETER | 2.630″ |
| PULLEY OUTER DIAMETER | 66.800mm |
| WARRANTY | 1 Year |
