NEW Winch Motor for RAMSEY WINCH Various Models Applications; 430-21005, W8841N
$379.99
Add’l Info: w/Turbo 135 Amp | Search: w/ & wo/Turbo 120 Amp
Available on backorder

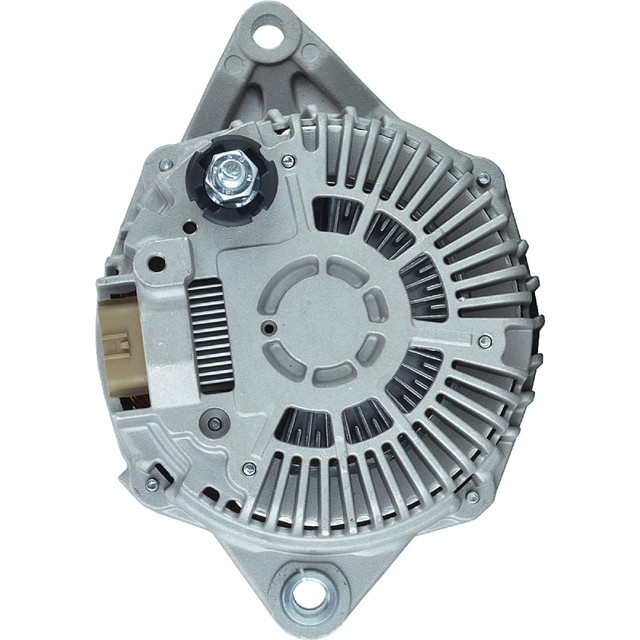

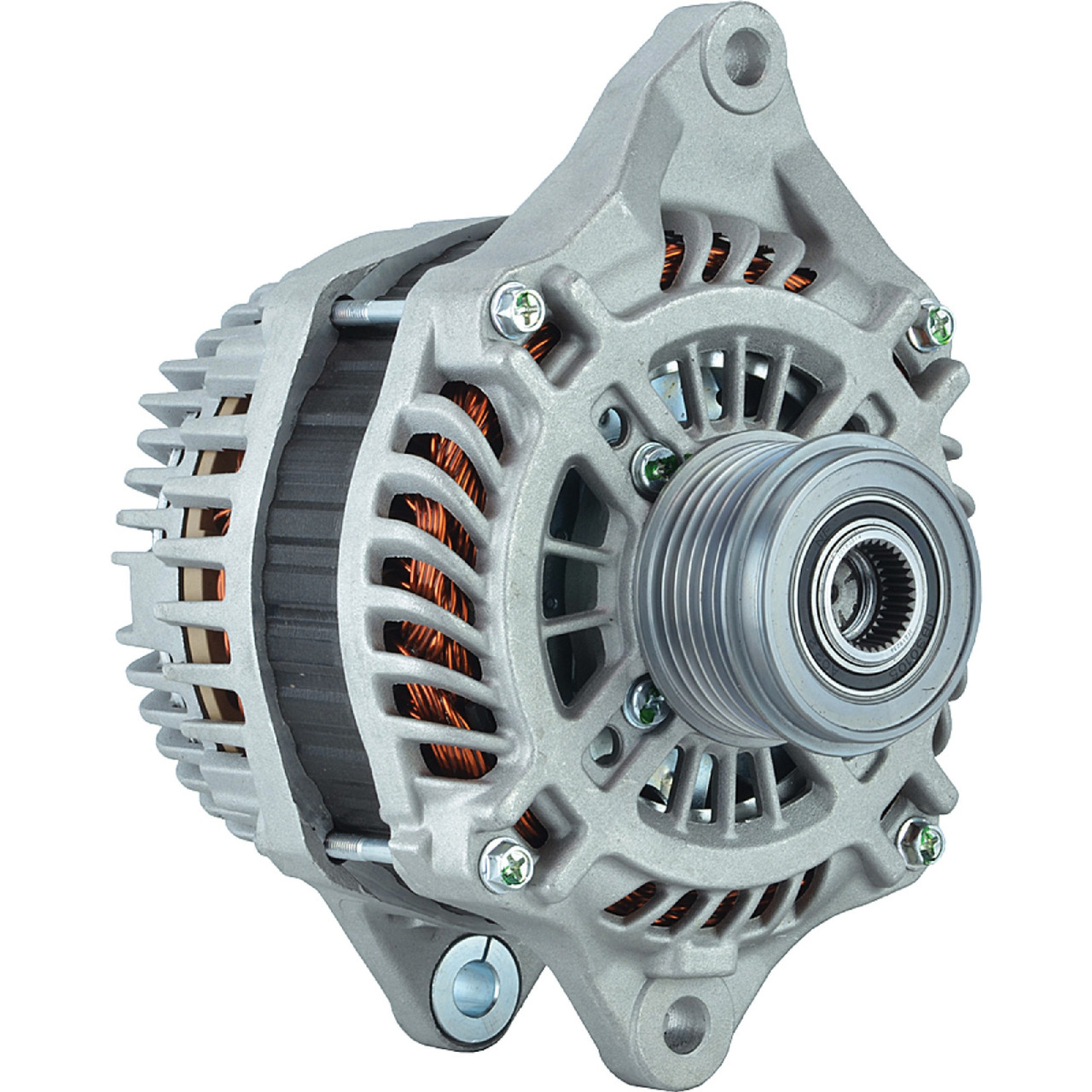

Specifications
| UNIT TYPE | Alternator |
| VOLT | 12 |
| AMPS | 135 |
| REGULATOR CLOCK | 9:00 |
| ROTATION DIRECTION | Clockwise |
| MOUNT HOLE ID 1 | 10.600mm |
| MOUNT HOLE 1 TYPE | Unthreaded |
| MOUNT HOLE 2 TYPE | Unthreaded |
| MOUNT HOLE ID 3 | 10.500mm |
| MOUNT HOLE 3 TYPE | Unthreaded |
| MOUNTING EAR THICKNESS | 0.709″ |
| MOUNTING EAR THICKNESS | 18mm |
| MOUNTING EAR 2 THICKNESS | 0.500″ |
| MOUNTING EAR 2 THICKNESS | 12.700mm |
| MOUNTING EAR 3 THICKNESS | 0.630″ |
| MOUNTING EAR 3 THICKNESS | 16mm |
| FAN LOCATION | Internal |
| REGULATOR LOCATION | Internal |
| TERMINAL ID 2 | B+ |
| TERMINAL 2 SIZE | M8x1.25 |
| TERMINAL ID 3 | G (PWM) |
| TERMINAL 3 SIZE | Spade |
| TERMINAL ID 4 | S |
| TERMINAL 4 SIZE | Spade |
| TERMINAL ID 5 | L |
| TERMINAL 5 SIZE | Spade |
| TERMINAL ID 6 | FR |
| TERMINAL 6 SIZE | Spade |
| POLARITY | Negative |
| NUMBER OF GROOVES | 6 |
| GROOVE OD | 2.165″ |
| GROOVE OD | 55mm |
| PULLEY TYPE | Clutch |
| PULLEY OUTER DIAMETER | 2.323″ |
| PULLEY OUTER DIAMETER | 59mm |
