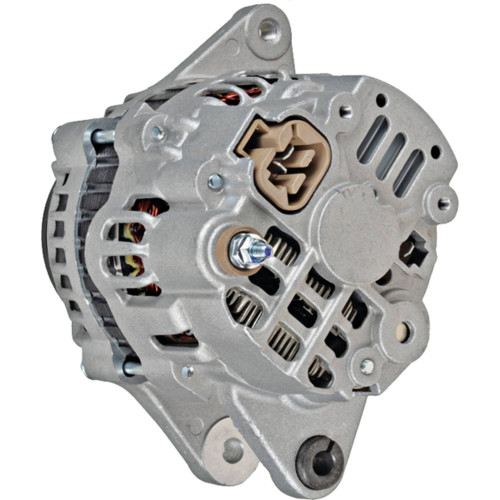

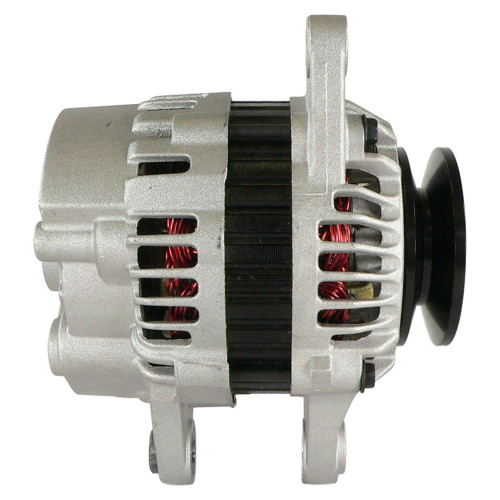

NEW Alternator for MITSUBISHI, VETUS Marine Engines & OTH Applications; 400-48063, VA30A6800801, 30A6800801, 30A68-00800, 30A68-00801, A7TA0171, A7TA0171B; LESTER 12432
$214.36
Specifications
| UNIT TYPE | Alternator |
| VOLT | 12 |
| AMPS | 40 |
| REGULATOR CLOCK | 12:00 |
| ROTATION DIRECTION | Clockwise |
| MOUNT HOLE ID 1 | M5x0.8 |
| MOUNT HOLE 1 TYPE | Threaded |
| MOUNT HOLE 2 TYPE | Unthreaded |
| MOUNT HOLE ID 3 | 8.500mm |
| MOUNT HOLE 3 TYPE | Unthreaded |
| MOUNTING EAR THICKNESS | 0.512″ |
| MOUNTING EAR THICKNESS | 13mm |
| MOUNTING EAR 2 THICKNESS | 0.630″ |
| MOUNTING EAR 2 THICKNESS | 16mm |
| MOUNTING EAR 3 THICKNESS | 0.630″ |
| MOUNTING EAR 3 THICKNESS | 16mm |
| FAN LOCATION | Internal |
| REGULATOR LOCATION | Internal |
| TERMINAL ID 2 | B+ |
| TERMINAL 2 SIZE | M8x1.25 |
| TERMINAL ID 3 | L |
| TERMINAL 3 SIZE | Spade |
| TERMINAL ID 4 | R |
| TERMINAL 4 SIZE | Spade |
| TERMINAL ID 5 | P |
| TERMINAL 5 SIZE | Spade |
| POLARITY | Negative |
| NUMBER OF GROOVES | 1 |
| PULLEY TYPE | Solid |
| Two Spade Regulator Plug and Separate ‘P’ Terminal Spade Connection. |
