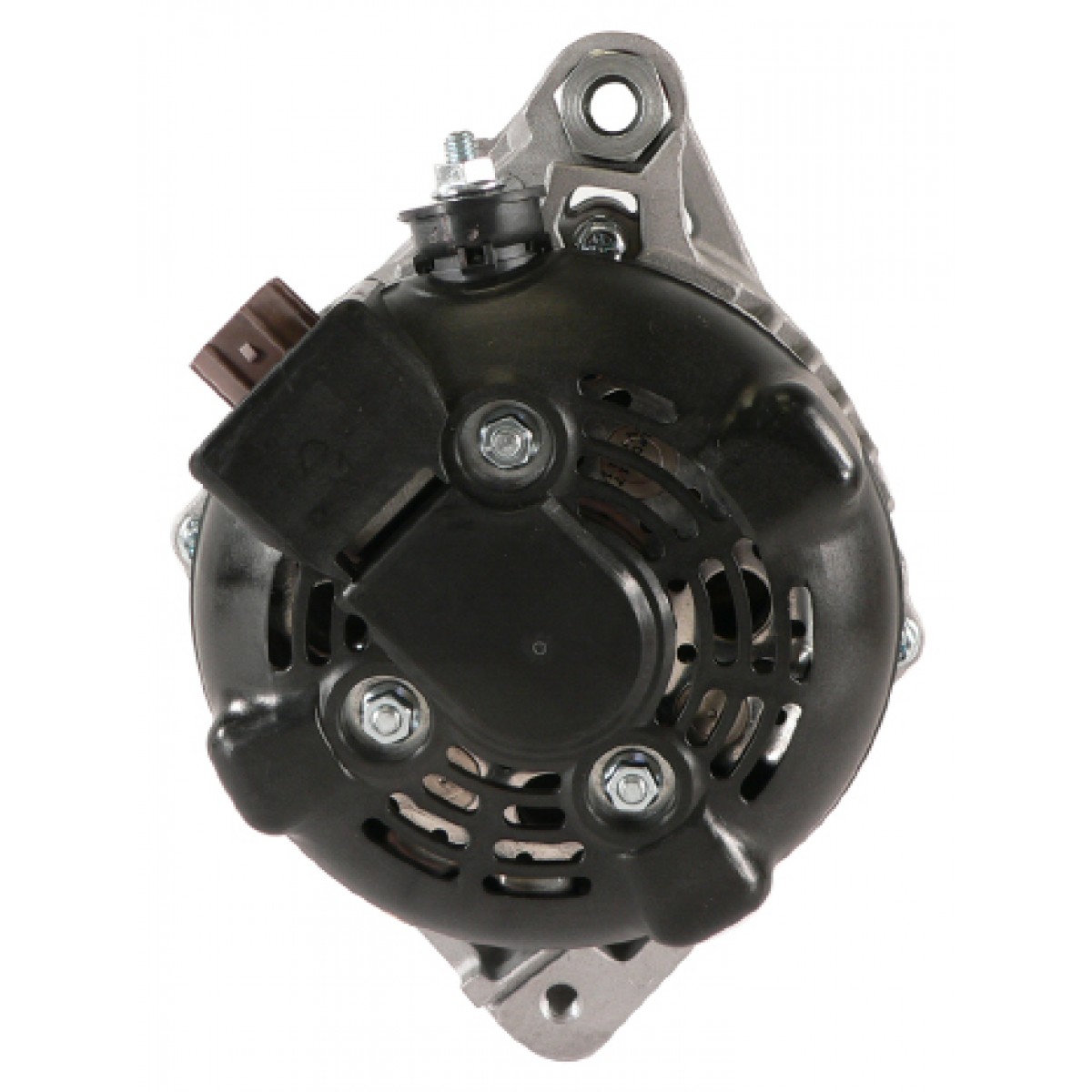

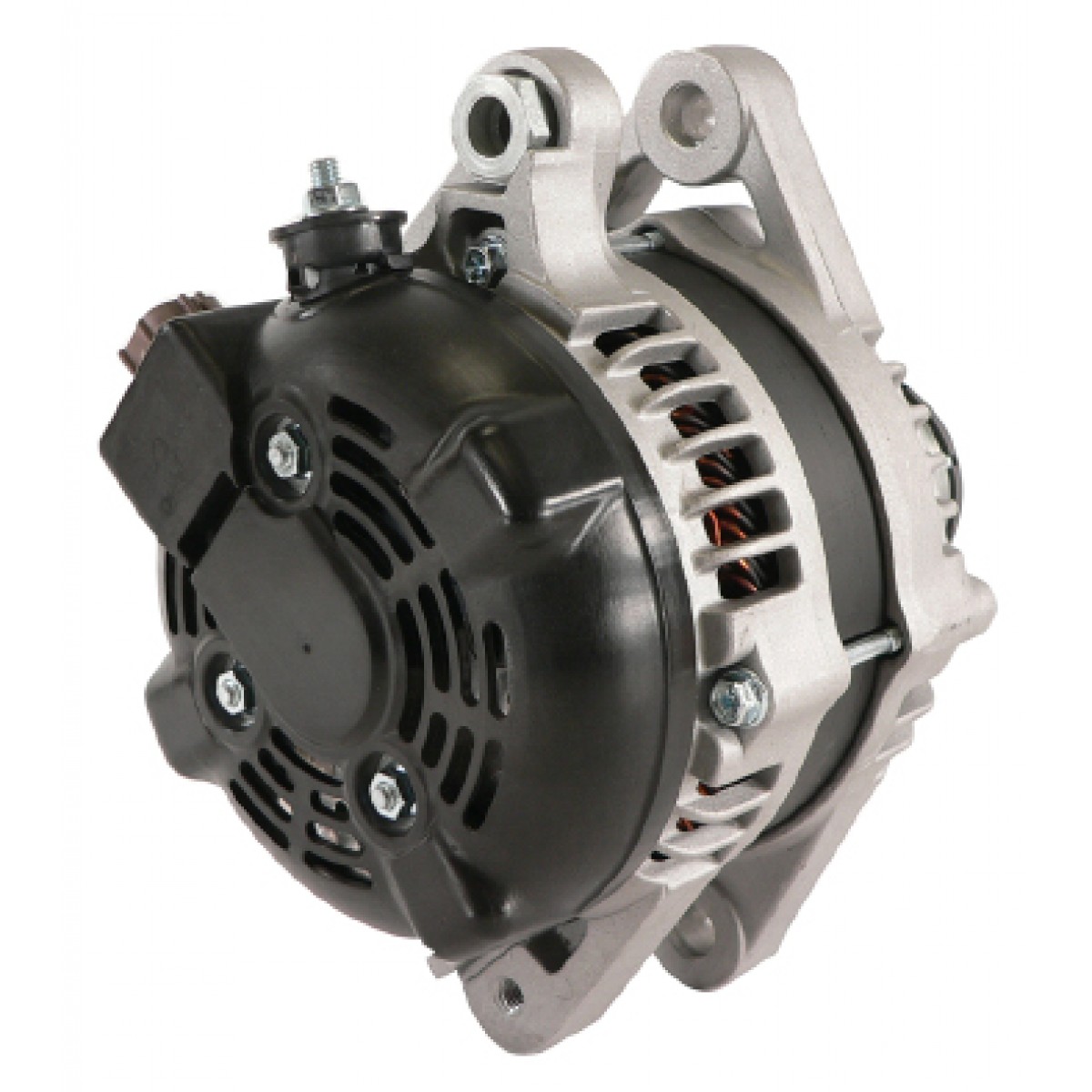

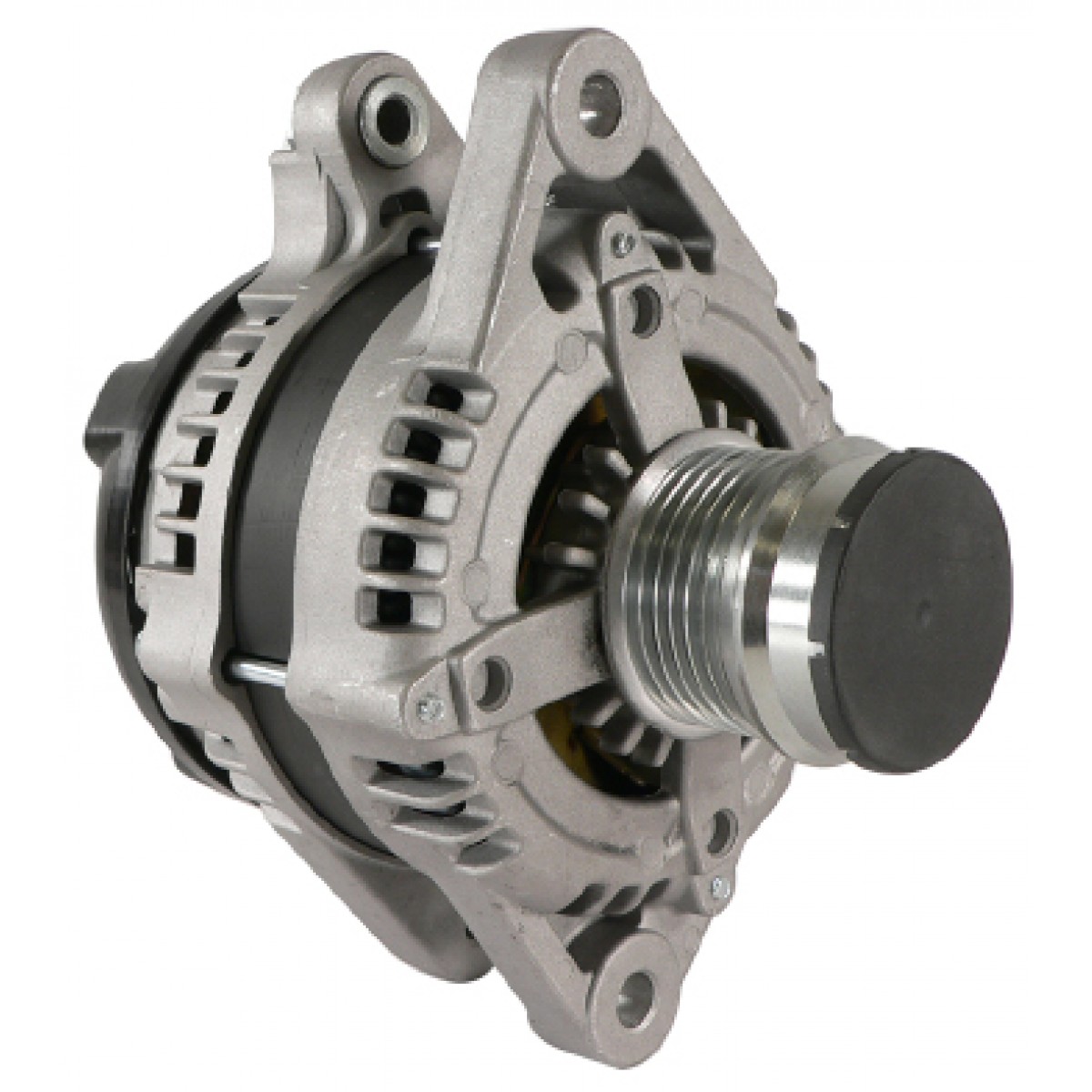

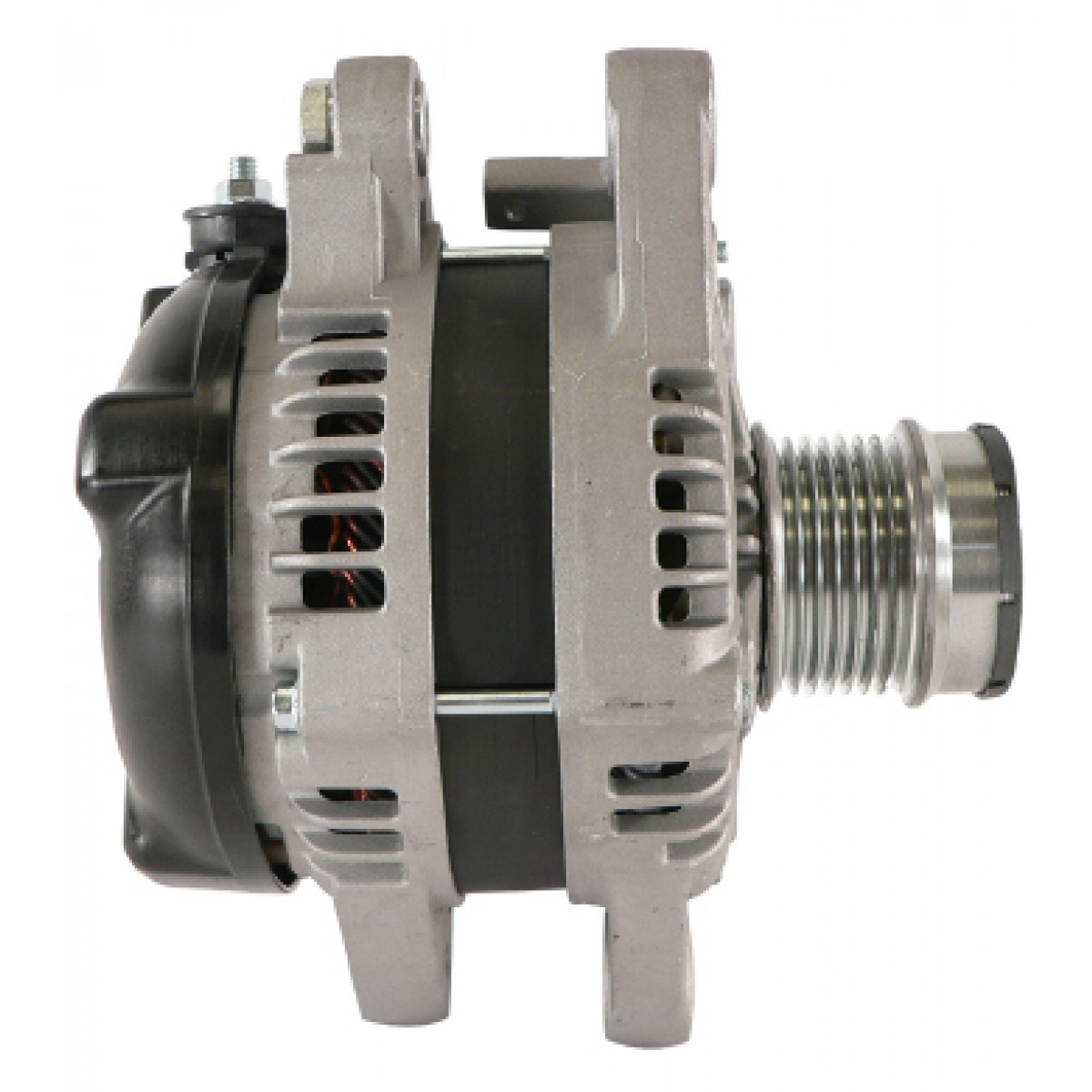

NEW Alternator for TOYOTA Applications; AND0334, 27060-0P140, 27060-0P141, 27060-0P141-84, 27060-31080, 27060-31081, 27060-31082; LESTER 11136
$349.99
Specifications
| UNIT TYPE | Alternator |
| FAMILY | Denso SC (Hairpin) |
| VOLT | 12 |
| AMPS | 100 |
| REGULATOR CLOCK | 5:00 |
| ROTATION DIRECTION | Clockwise |
| MOUNT HOLE ID 1 | 11mm |
| MOUNT HOLE 1 TYPE | Unthreaded |
| MOUNT HOLE ID 2 | M8x1.25 |
| MOUNT HOLE 2 TYPE | Threaded |
| MOUNT HOLE ID 3 | 11mm |
| MOUNT HOLE 3 TYPE | Unthreaded |
| MOUNT HOLE ID 4 | M10x1.25 |
| MOUNT HOLE 4 TYPE | Threaded |
| MOUNTING EAR THICKNESS | 0.709″ |
| MOUNTING EAR THICKNESS | 18mm |
| MOUNTING EAR 2 THICKNESS | 0.709″ |
| MOUNTING EAR 2 THICKNESS | 18mm |
| MOUNTING EAR 3 THICKNESS | 0.787″ |
| MOUNTING EAR 3 THICKNESS | 20mm |
| FAN LOCATION | Internal |
| REGULATOR LOCATION | Internal |
| TERMINAL ID 2 | B+ |
| TERMINAL 2 SIZE | M6x1.00 |
| TERMINAL ID 3 | IG |
| TERMINAL 3 SIZE | Spade |
| TERMINAL ID 4 | S |
| TERMINAL 4 SIZE | Spade |
| TERMINAL ID 5 | L |
| TERMINAL 5 SIZE | Spade |
| TERMINAL ID 6 | FR |
| TERMINAL 6 SIZE | Spade |
| POLARITY | Negative |
| NUMBER OF GROOVES | 7 |
| PULLEY TYPE | Clutch |
| PULLEY OUTER DIAMETER | 2.323″ |
| PULLEY OUTER DIAMETER | 59mm |
| WARRANTY | 1 Year |
WRITE YOUR OWN REVIEW
We appreciate your feedback about our parts, services experience or anything which may help us to serve you better.
[testimonial_view id=”1″]
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | AND0334, VND0334 |
| BOSCH | AL3330X |
| DENSO | 104210-2070, 104210-2071, 104210-4470, 104210-4471, 104210-4472, 104210-4475, 104210-4476, 104210-4830, 210-0654 |
| J&N ELECTRICAL PRODUCTS | 400-52251, 400-52251R, 400-52585, 400-52585R |
| JANNCO | 400-52585R |
| LESTER | 11136 |
| TOYOTA | 27060-0P140, 27060-0P141, 27060-0P141-84, 27060-31080, 27060-31081, 27060-31082 |
| WAI | 1-3009-01ND-3, 11136N |
Part fit
| Year | Make | Model | Engine |
|---|---|---|---|
| Year | Make | Model | Engine |
| 2007 - 2009 | LEXUS | RX350 | 3.5L |
| 2007 - 2009 | TOYOTA | CAMRY | 3.5L |
| 2008 - 2009 | TOYOTA | HIGHLANDER | 3.5L |
| 2009 - 2012 | TOYOTA | RAV4 | 3.5L |
