NEW Alternator for TOYOTA Highlander & Venza Applications; AND0513, 104210-2360, 104210-2570, 27060-0V030, 27060-36040; LESTER 11404, 11407
May 20, 2019
NEW Alternator for TOYOTA Tacoma 2.7L Application; AND0467, 104210-8230, 104210-8231, 104210-8232, 104210-8450, 210-0664, 27060-75410, 27060-75411, 27060-75412; LESTER 11354
May 20, 2019

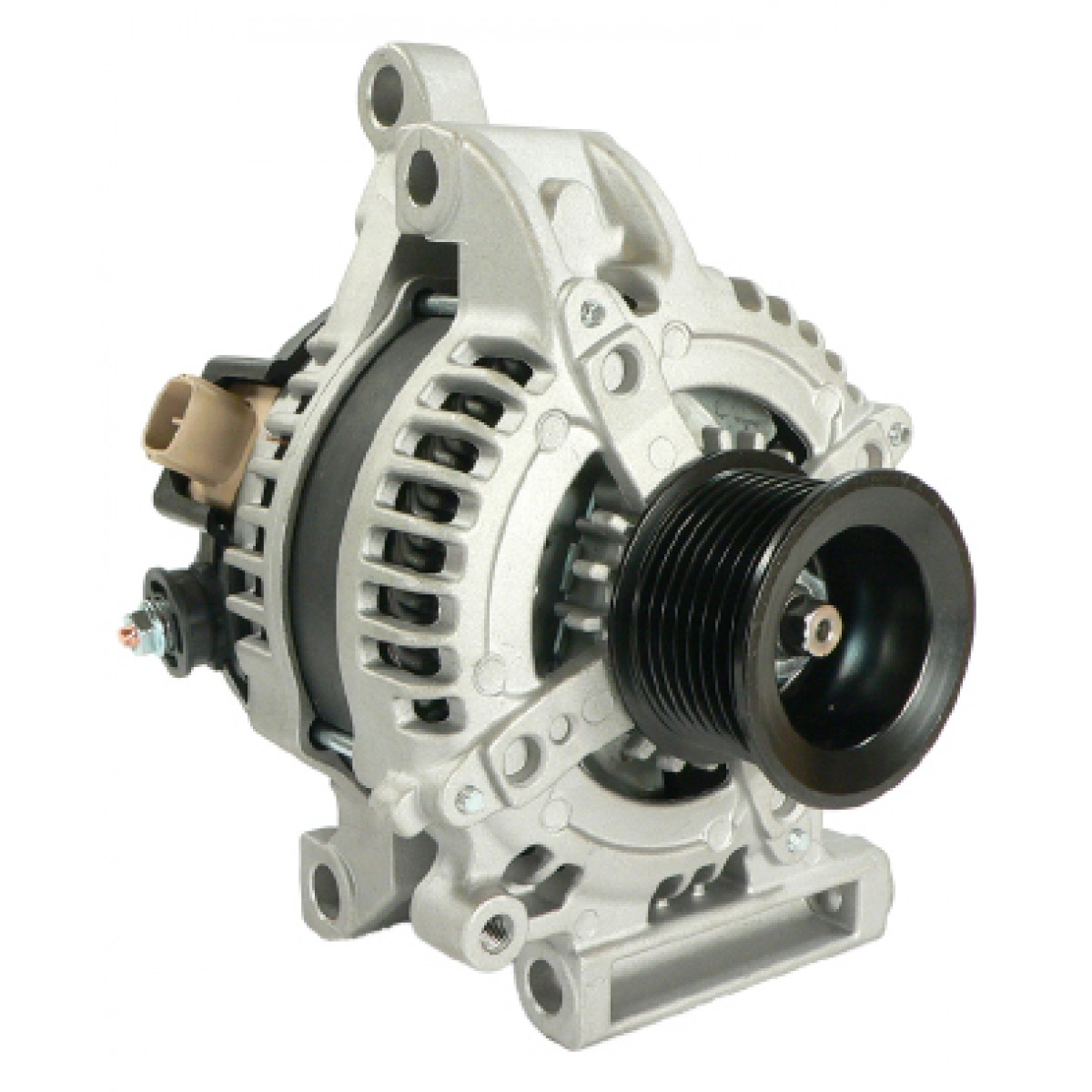

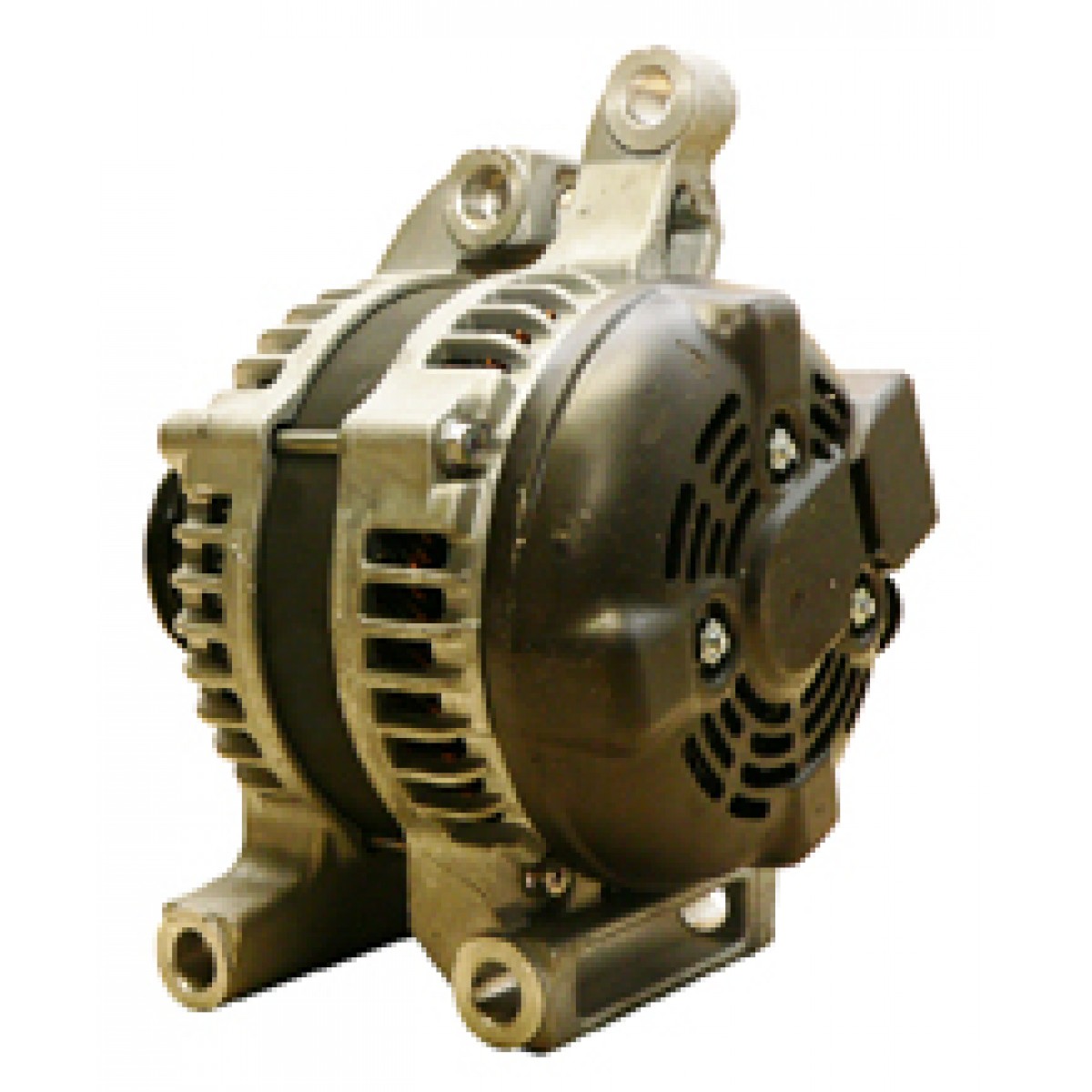

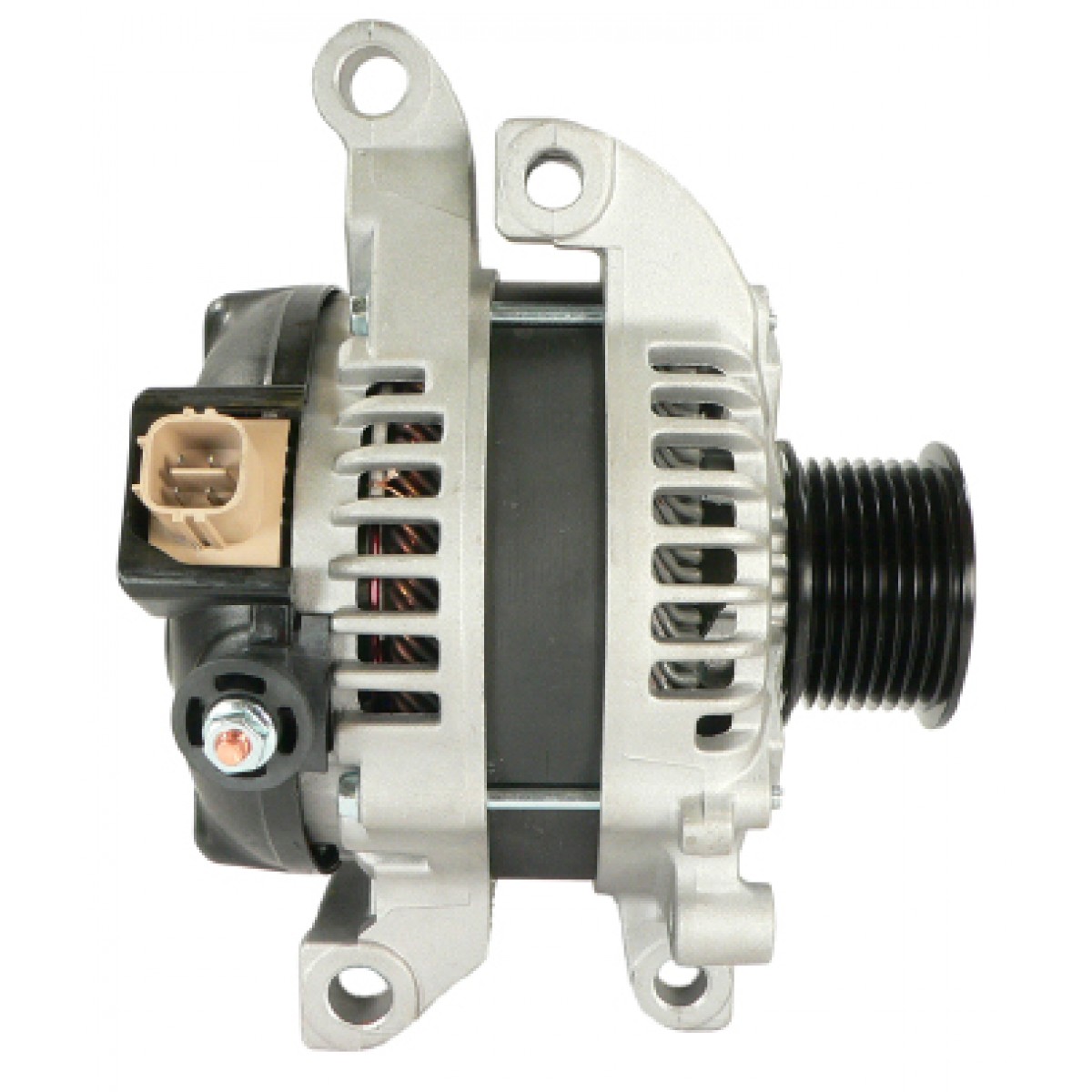

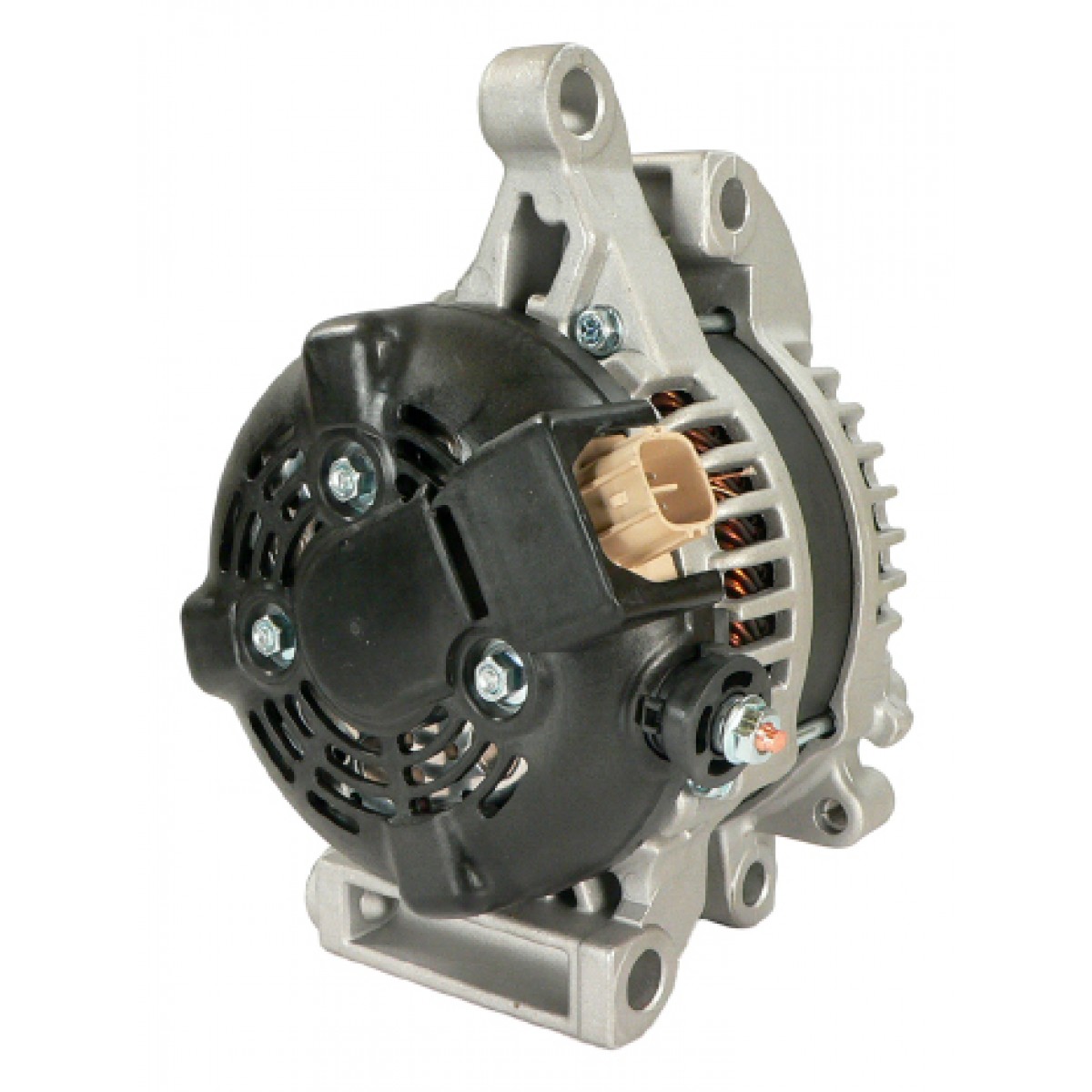

NEW Alternator for TOYOTA Sequoia & Tundra Applications; AND0507, 104210-5090, 104211-8641, 27060-0S020, 27060-38110; LESTER 11352, 11765
$274.99
Specifications
| UNIT TYPE | Alternator |
| FAMILY | Denso SC (Hairpin) |
| VOLT | 12 |
| AMPS | 150 |
| REGULATOR CLOCK | 2:00 |
| MOUNT HOLE ID 1 | 10.500mm |
| MOUNT HOLE 1 TYPE | Unthreaded |
| MOUNT HOLE ID 2 | 12.500mm |
| MOUNT HOLE 2 TYPE | Unthreaded |
| MOUNT HOLE ID 3 | 10.500mm |
| MOUNT HOLE 3 TYPE | Unthreaded |
| MOUNT HOLE ID 4 | 12.500mm |
| MOUNT HOLE 4 TYPE | Unthreaded |
| MOUNTING EAR THICKNESS | 3.866″ |
| MOUNTING EAR THICKNESS | 98.200mm |
| MOUNTING EAR 2 THICKNESS | 3.638″ |
| MOUNTING EAR 2 THICKNESS | 92.400mm |
| MOUNTING EAR 3 THICKNESS | 1.768″ |
| MOUNTING EAR 3 THICKNESS | 44.900mm |
| MOUNTING EAR 4 THICKNESS | 0.709″ |
| MOUNTING EAR 4 THICKNESS | 18mm |
| FAN LOCATION | Internal |
| REGULATOR LOCATION | Internal |
| TERMINAL ID 2 | B+ |
| TERMINAL 2 SIZE | M6x1.00 |
| TERMINAL ID 3 | IGN |
| TERMINAL 3 SIZE | Spade |
| TERMINAL ID 4 | S |
| TERMINAL 4 SIZE | Spade |
| TERMINAL ID 5 | L |
| TERMINAL 5 SIZE | Spade |
| TERMINAL ID 6 | FR |
| TERMINAL 6 SIZE | Spade |
| POLARITY | Negative |
| NUMBER OF GROOVES | 8 |
| PULLEY TYPE | Solid |
| WARRANTY | 1 Year |
WRITE YOUR OWN REVIEW
We appreciate your feedback about our parts, services experience or anything which may help us to serve you better.
[testimonial_view id=”1″]
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | AND0507, VND0507 |
| BOSCH | AL3336X |
| DENSO | 104210-5090, 104211-8641 |
| J&N | 400-52393, 400-52393R, 400-52549, 400-52549R |
| LESTER | 11352, 11765 |
| TOYOTA | 27060-0S020, 27060-38110 |
Part fit
| Year | Make | Model | Engine |
|---|---|---|---|
| Year | Make | Model | Engine |
| 2007 - 2015 | TOYOTA | TUNDRA | 5.7L |
| 2008 - 2014 | TOYOTA | SEQUOIA | 5.7L |
| 2010 - 2012 | TOYOTA | SEQUOIA | 4.6L |
| 2010 - 2015 | TOYOTA | TUNDRA | 4.6L |
