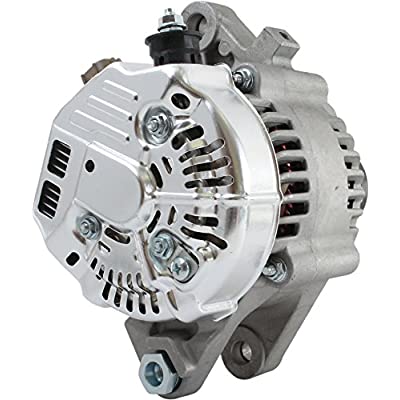

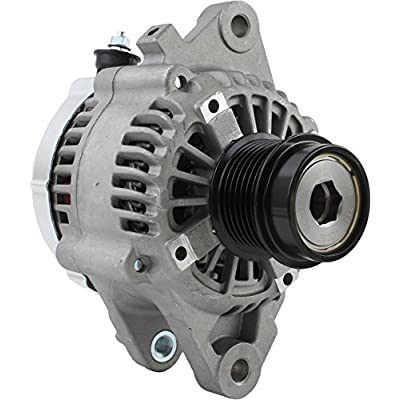

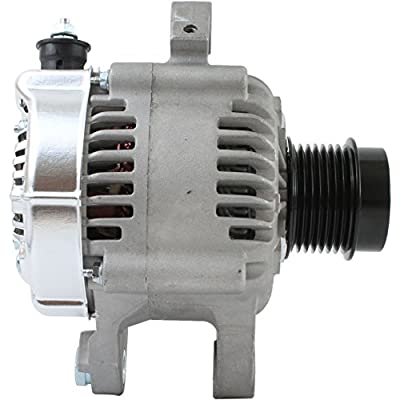

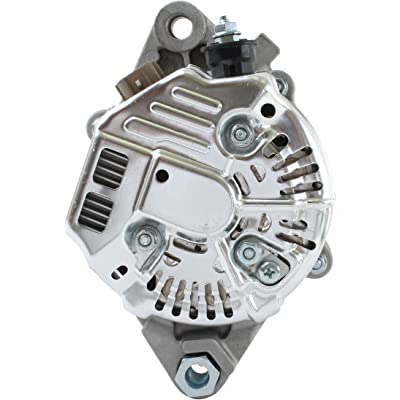

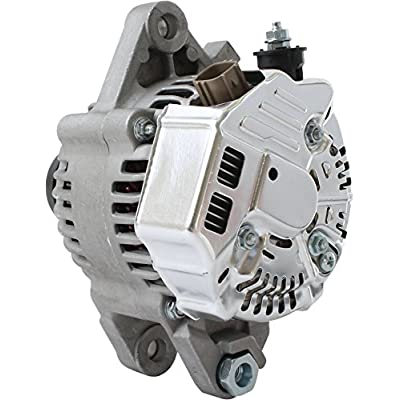

NEW Alternator for TOYOTA Tacoma 2.7L 2011-16; 400-52378, 27060-75410, 27060-75411, 27060-75412; LESTER 11354
$279.99
Specifications
| UNIT TYPE | Alternator |
| FAMILY | Denso SC (Hairpin) |
| VOLT | 12 |
| AMPS | 80 |
| REGULATOR CLOCK | 11:00 |
| ROTATION DIRECTION | Clockwise |
| MOUNT HOLE ID 1 | 11mm |
| MOUNT HOLE 1 TYPE | Unthreaded |
| MOUNT HOLE 2 TYPE | Unthreaded |
| MOUNT HOLE ID 3 | M10x1.25 |
| MOUNT HOLE 3 TYPE | Threaded |
| MOUNTING EAR THICKNESS | 0.787″ |
| MOUNTING EAR THICKNESS | 20mm |
| MOUNTING EAR 2 THICKNESS | 0.787″ |
| MOUNTING EAR 2 THICKNESS | 20mm |
| MOUNTING EAR 3 THICKNESS | 0.906″ |
| MOUNTING EAR 3 THICKNESS | 23mm |
| FAN LOCATION | Internal |
| REGULATOR LOCATION | Internal |
| TERMINAL ID 2 | B+ |
| TERMINAL 2 SIZE | M6x1.00 |
| TERMINAL ID 3 | IG |
| TERMINAL 3 SIZE | Spade |
| TERMINAL ID 4 | S |
| TERMINAL 4 SIZE | Spade |
| TERMINAL ID 5 | L |
| TERMINAL 5 SIZE | Spade |
| TERMINAL ID 6 | FR |
| TERMINAL 6 SIZE | Spade |
| POLARITY | Negative |
| NUMBER OF GROOVES | 7 |
| GROOVE OD | 2.067″ |
| GROOVE OD | 52.500mm |
| PULLEY TYPE | Decoupler |
| PULLEY OUTER DIAMETER | 2.323″ |
| PULLEY OUTER DIAMETER | 59mm |
| WARRANTY | 1 Year |
WRITE YOUR OWN REVIEW
We appreciate your feedback about our parts, services experience or anything which may help us to serve you better.
[testimonial_view id=”1″]
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | AND0467, VND0467 |
| DENSO | 104210-8230, 104210-8231, 104210-8232, 104210-8450, 210-0664 |
| J&N ELECTRICAL PRODUCTS | 400-52378R |
| LESTER | 11354 |
| TOYOTA | 27060-75410, 27060-75411, 27060-75412 |
Part fit
| Year | Make | Model | Engine |
|---|---|---|---|
| Year | Make | Model | Engine |
| 2011 - 2016 | TOYOTA | TACOMA | 2.7L |
