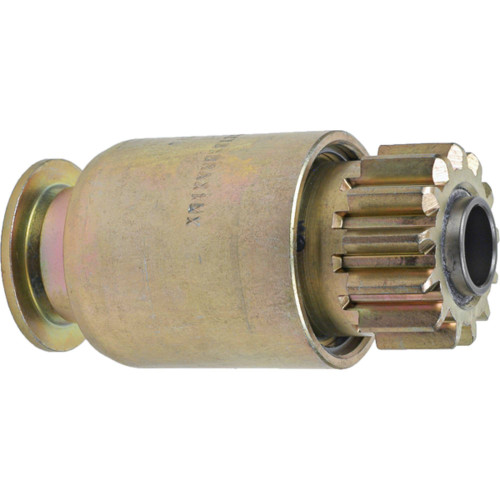

NEW Drive Assembly for DELCO & LEECE NEVILLE Starters; 220-12293, 1932603, 1985131, 13539, 71158, M029013539S, 59-225, PD13A
$84.99
Specifications
| UNIT TYPE | Starter Drive Assembly |
| QUALITY TYPE | Premium (Brazil) |
| ROTATION DIRECTION | Clockwise |
| ID | 0.752″ |
| ID | 19.100 mm |
| GEAR OD | 1.941″ |
| GEAR OD | 49.300mm |
| LENGTH | 117.500 mm |
| LENGTH | 4.626″ |
| NUMBER OF TEETH | 13 |
| NUMBER OF SPLINES | 19 |
| SPLINES TYPE | Straight |
| DRIVE TYPE | Ratchet |
| WET CLUTCH SEAL | FALSE |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | SDR5164, ZN0879 |
| DELCO | 1932603, 1985131 |
| FACET DRIVES | 480170, 480210, 480277, 480415, E480415, EP480415 |
| J&N ELECTRICAL PRODUCTS | 220-12049, 220-12058, 220-12058R |
| LEECE NEVILLE | 13539, 71158, M029013539S |
| PRESTOLITE | 59-225, PD13A |
| ZEN S.A. | 0879, 1.01.0879.0 |
