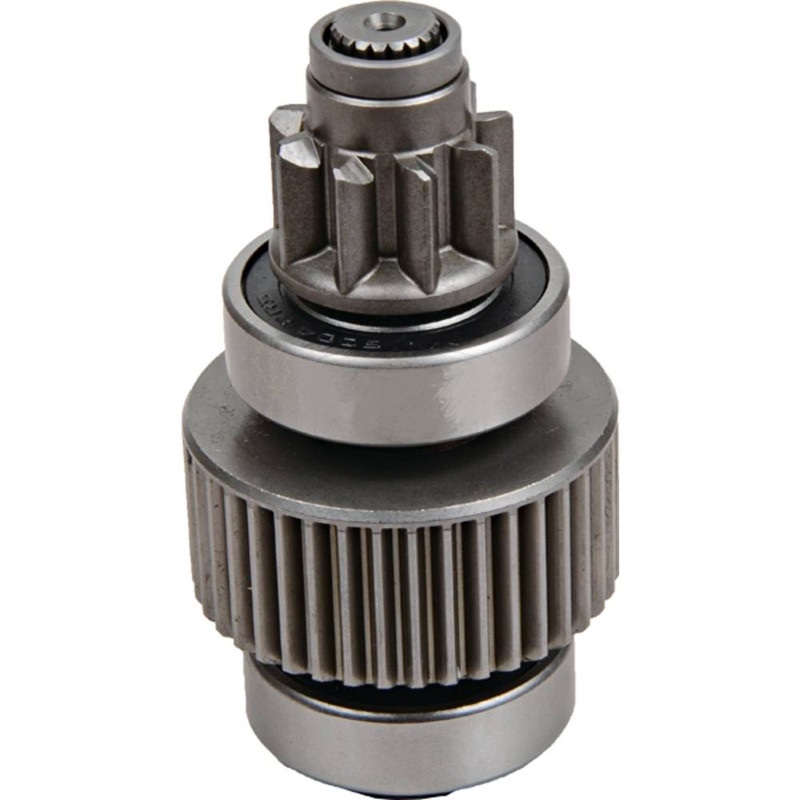

NEW Drive Assembly for DENSO Starters; 220-52004, 028300-1600, 028300-1601, 028300-1602, 028300-1603, 028300-1790, 31204657617, 2801120540, 2801135030, 2810110710
$84.99
Specifications
| UNIT TYPE | Starter Drive Assembly |
| QUALITY TYPE | Premium (Brazil) |
| ROTATION DIRECTION | Clockwise |
| GEAR OD | 1.154″ |
| GEAR OD | 29.300mm |
| LENGTH | 102.400 mm |
| LENGTH | 4.031″ |
| NUMBER OF TEETH | 9 |
| NUMBER OF SPLINES | 10 |
| SPLINES TYPE | Spiral |
| DRIVE TYPE | Roller & Reduction Gear |
| WET CLUTCH SEAL | FALSE |
| (2) Bearings Mounted |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | SND5010, ZN0947 |
| DENSO | 028300-1600, 028300-1601, 028300-1602, 028300-1603, 028300-1790, 028300-1791, 028300-1800, 028300-2000, 028300-2110, 028300-2111, 028300-2270, 028300-3630, 028300-3631, 028300-4160, 028300-6940 |
| HONDA | 31204657617 |
| ISUZU | 8941291870 |
| J&N ELECTRICAL PRODUCTS | 220-52004R, 220-52040 |
| TOYOTA | 2801120540, 2801135030, 2810110710 |
| ZEN S.A. | 0947, 1.01.0947.0 |
