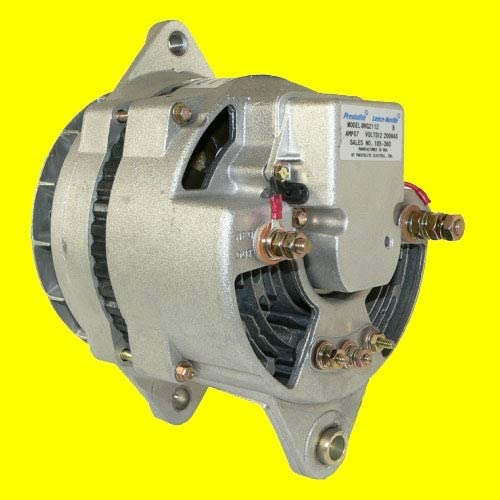

New LEECE NEVILLE Alternator for Medium & Heavy-Duty Trucks; LNP-110-555JHO, 3574551C91, 3604670RX, 3675200RX, 2472110255A, 3D97252G01, 44-8996; LESTER 8328

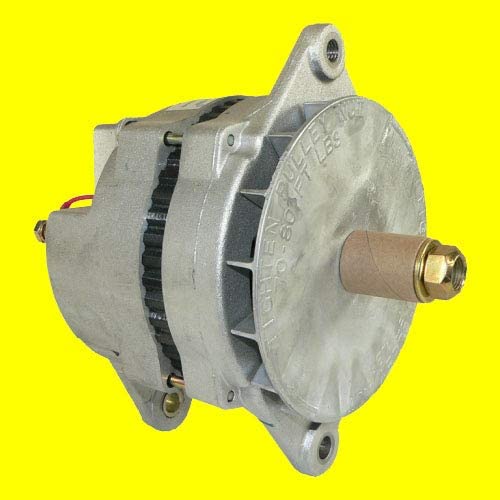

New LEECE NEVILLE Alternator for Medium & Heavy-Duty Trucks; LNP-110-555JHO, 3574551C91, 3604670RX, 3675200RX, 2472110255A, 3D97252G01, 44-8996; LESTER 8328 - Image 2

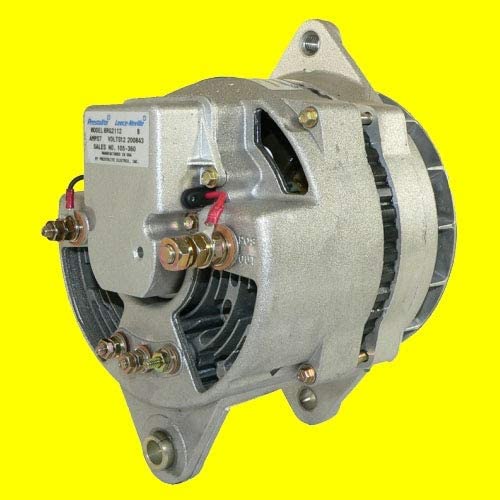

New LEECE NEVILLE Alternator for Medium & Heavy-Duty Trucks; LNP-110-555JHO, 3574551C91, 3604670RX, 3675200RX, 2472110255A, 3D97252G01, 44-8996; LESTER 8328 - Image 3

New LEECE NEVILLE Alternator for Medium & Heavy-Duty Trucks; LNP-110-555JHO, 3574551C91, 3604670RX, 3675200RX, 2472110255A, 3D97252G01, 44-8996; LESTER 8328

$399.99

SEARCH: PRESTOLITE AVI SERIES 170A INTERNAL FAN VERSION

Categories: ,

Specifications

UNIT TYPE Alternator
FAMILY Leece Neville 8LHA
VOLT 12
AMPS 160
REGULATOR CLOCK 12:00
J180 HINGE LENGTH 215.9
ROTATION DIRECTION Clockwise
MOUNT HOLE ID 1 1/2-13
MOUNT HOLE 1 TYPE Threaded
MOUNT HOLE 2 TYPE Unthreaded
MOUNT HOLE ID 3 13mm
MOUNT HOLE 3 TYPE Unthreaded
MOUNTING EAR THICKNESS 0.559″
MOUNTING EAR THICKNESS 14.200mm
MOUNTING EAR 2 THICKNESS 0.559″
MOUNTING EAR 2 THICKNESS 14.200mm
MOUNTING EAR 3 THICKNESS 0.756″
MOUNTING EAR 3 THICKNESS 19.200mm
FAN LOCATION External
REGULATOR LOCATION Internal
TERMINAL ID 2 B+
TERMINAL 2 SIZE 5/16-24
TERMINAL ID 3 B-
TERMINAL 3 SIZE 1/4-28
TERMINAL ID 4 AC
TERMINAL 4 SIZE 10/24-23
TERMINAL ID 5 AC
TERMINAL 5 SIZE 10/24-23
TERMINAL ID 6 AC
TERMINAL 6 SIZE 10/24-23
POLARITY Insulated
SHAFT PULLEY OD 0.875″
SHAFT PULLEY OD 22.230mm
