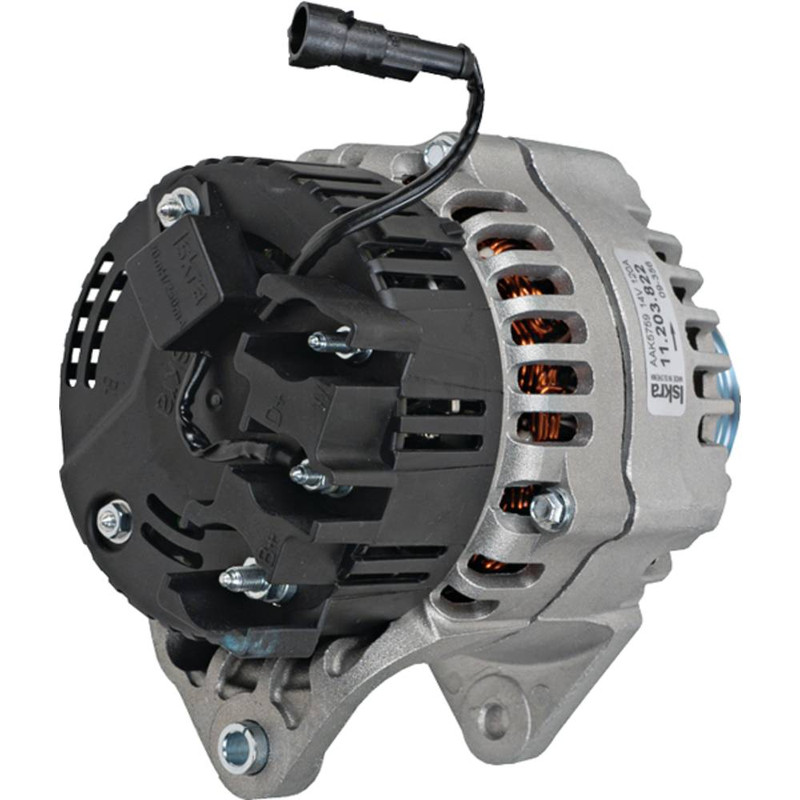

NEW Alternator for JLG/GRADALL INDUSTRIES & KOMATSU Applications; 400-52442, 102211-3290, 70024276, 600-861-1930; LESTER 20788

NEW Alternator for JLG/GRADALL INDUSTRIES & KOMATSU Applications; 400-52442, 102211-3290, 70024276, 600-861-1930; LESTER 20788

$494.88

Categories: , , ,

Specifications

PART TYPE Alternator
FAMILY Letrika/MAHLE AAK
VOLT 12
AMPS 120
ROTATION DIRECTION Clockwise
MOUNT HOLE ID 1 M8x1.25
MOUNT HOLE 1 TYPE Threaded
MOUNT HOLE 2 TYPE Unthreaded
MOUNT HOLE ID 3 8.200mm
MOUNT HOLE 3 TYPE Unthreaded
MOUNTING EAR THICKNESS 0.555″
MOUNTING EAR THICKNESS 14.100mm
MOUNTING EAR 2 THICKNESS 0.555″
MOUNTING EAR 2 THICKNESS 14.100mm
MOUNTING EAR 3 THICKNESS 0.787″
MOUNTING EAR 3 THICKNESS 20mm
FAN LOCATION Internal
REGULATOR LOCATION Internal
TERMINAL ID 2 B+
TERMINAL 2 SIZE M8x1.25
TERMINAL ID 3 D+
TERMINAL 3 SIZE M5x0.8
TERMINAL ID 4 W
TERMINAL 4 SIZE M5x0.8
TERMINAL ID 5 R
TERMINAL 5 SIZE Pigtail Plug
POLARITY Negative
NUMBER OF GROOVES 8
PULLEY TYPE Solid
PULLEY OUTER DIAMETER 2.559″
PULLEY OUTER DIAMETER 65mm
