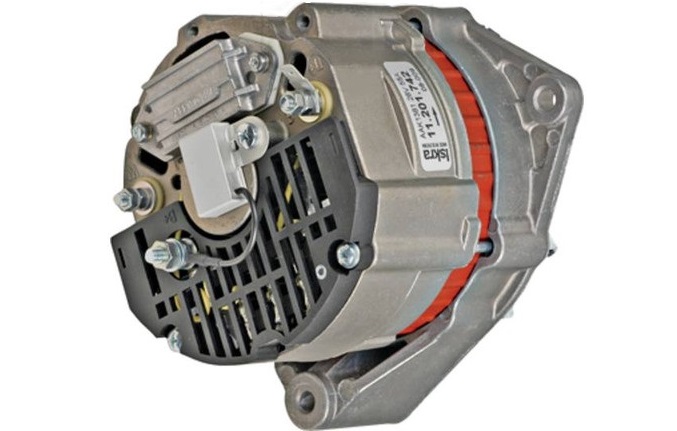

New MAHLE Alternator for VETUS DEN OUDEN Engines – Marine; MAH-MG245, 11.201.742, AAK1381, IA0742, 400-29027; LESTER 11677
$449.99
Specifications
| UNIT | Alternator |
| FAMILY | Letrika/MAHLE AAK |
| VOLT | 24 |
| AMPS | 55 |
| REGULATOR CLOCK | 11:00 |
| ROTATION DIRECTION | Clockwise |
| MOUNT HOLE ID 1 | 8.200mm |
| MOUNT HOLE 1 TYPE | Unthreaded |
| MOUNT HOLE 2 TYPE | Unthreaded |
| MOUNT HOLE ID 3 | 8.200mm |
| MOUNT HOLE 3 TYPE | Unthreaded |
| MOUNTING EAR THICKNESS | 0.472″ |
| MOUNTING EAR THICKNESS | 12mm |
| MOUNTING EAR 2 THICKNESS | 0.472″ |
| MOUNTING EAR 2 THICKNESS | 12mm |
| MOUNTING EAR 3 THICKNESS | 2.205″ |
| MOUNTING EAR 3 THICKNESS | 56mm |
| FAN LOCATION | External |
| REGULATOR LOCATION | Internal |
| TERMINAL ID 2 | B+ |
| TERMINAL 2 SIZE | M6x1.00 |
| TERMINAL ID 3 | D+ |
| TERMINAL 3 SIZE | M5x0.8 Stud/Spade Combo |
| TERMINAL ID 4 | W |
| TERMINAL 4 SIZE | M5x0.8 |
| POLARITY | Negative |
| NUMBER OF GROOVES | 1 |
| PULLEY TYPE | Solid |
| PULLEY OUTER DIAMETER | 2.854″ |
| PULLEY OUTER DIAMETER | 72.500mm |
