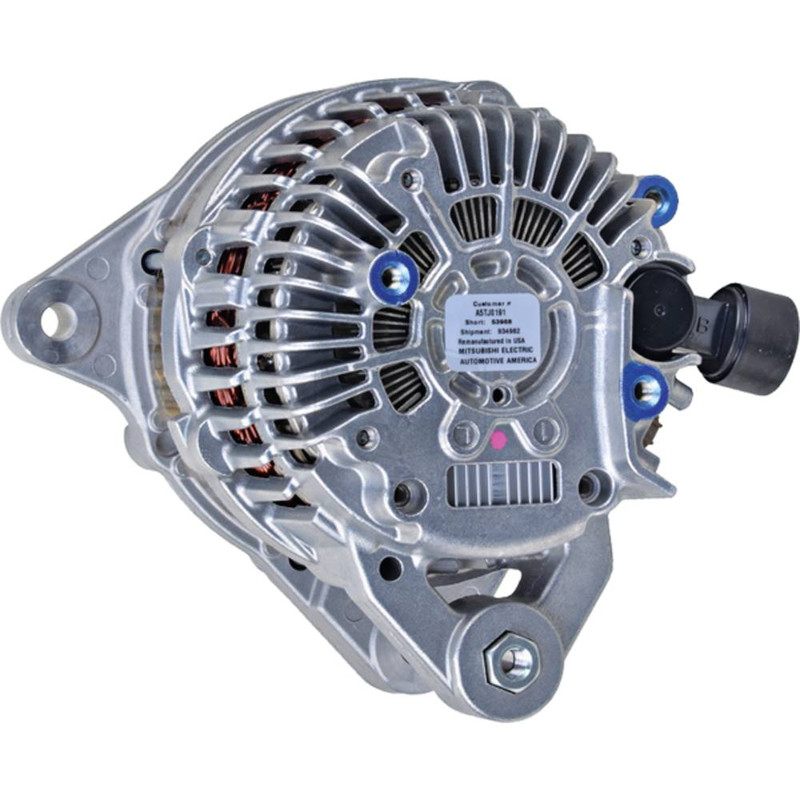

New MITSUBISHI Alternator for ACURA ILX, HONDA CIVIC & HR-V Auto & Light Trucks; MIS-A5TJ0191, 31100R1A-A010, 31100R1A-A011M2, 31100R1A-A01RM, AHGA81, A005TJ0191, A5TJ0191; LESTER 11537
$409.99
Specifications
| UNIT TYPE |
Alternator |
| VOLT |
12 |
| AMPS |
95 |
| REGULATOR CLOCK |
4:00 |
| ROTATION DIRECTION |
Clockwise |
| MOUNT HOLE ID 1 |
8.700mm |
| MOUNT HOLE 1 TYPE |
Unthreaded |
| MOUNT HOLE 2 TYPE |
Unthreaded |
| MOUNT HOLE ID 3 |
M8x1.25 |
| MOUNT HOLE 3 TYPE |
Threaded |
| MOUNTING EAR THICKNESS |
0.622″ |
| MOUNTING EAR THICKNESS |
15.800mm |
| MOUNTING EAR 2 THICKNESS |
0.787″ |
| MOUNTING EAR 2 THICKNESS |
20mm |
| MOUNTING EAR 3 THICKNESS |
1.024″ |
| MOUNTING EAR 3 THICKNESS |
26mm |
| FAN LOCATION |
Internal |
| REGULATOR LOCATION |
Internal |
| TERMINAL ID 2 |
B+ |
| TERMINAL 2 SIZE |
M6x1.00 |
| TERMINAL ID 3 |
LIN |
| TERMINAL 3 SIZE |
Pin |
| NUMBER OF GROOVES |
6 |
| PULLEY TYPE |
Solid |
| PULLEY OUTER DIAMETER |
2.508″ |
| PULLEY OUTER DIAMETER |
63.700mm |
| WARRANTY |
1 Year |
Part Number & Interchanges
| Manufacturer Name |
Manufacturer Part # |
| ARROWHEAD |
A5TJ0191, AMT0278 |
| HONDA |
31100R1A-A010, 31100R1A-A011M2, 31100R1A-A01RM, AHGA81 |
| J&N ELECTRICAL PRODUCTS |
400-48251, 400-48251 |
| LESTER |
11537 |
| MITSUBISHI |
A005TJ0191, A5TJ0191 |
Part fit
| Year |
Make |
Model |
Engine |
| Year |
Make |
Model |
Engine |
| 2012 - 2015 |
HONDA |
CIVIC |
1.8L |
| 2013 - 2015 |
ACURA |
ILX |
2.0L |
| 2016 - 2018 |
HONDA |
HR-V |
1.8L |
