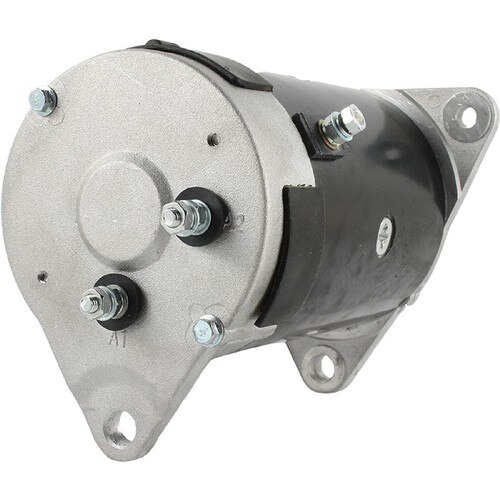

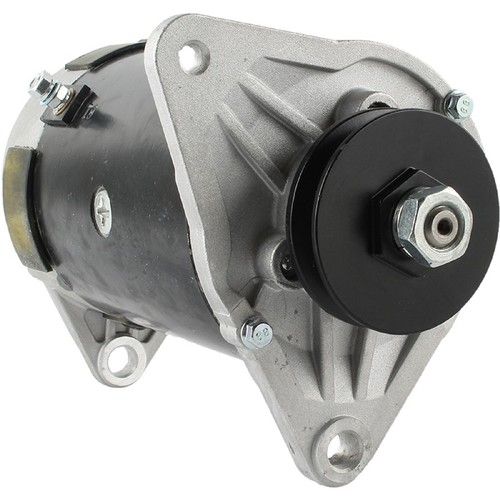

NEW Motor/Generator for CLUB CAR DS Series, FE290 & FE350 Golf Carts 1984-96; 420-46000, 420-46003, M063686, 1018294-01, TMC000A0011, TMC001B0011; LESTER 15435

Name: NEW Motor/Generator for CLUB CAR DS Series, FE290 &amp; FE350 Golf Carts 1984-96; 420-46000, 420-46003, M063686, 1018294-01, TMC000A0011, TMC001B0011; LESTER 15435
SKU: 10665
Availability: InStock

$279.36 $315.68

5 Terminals

Categories: Generator, Golf Cart

Additional information

Weight	8.6 kg
Dimensions	32 × 19 × 17 cm

Part Number & Interchanges

Manufacturer Name	Manufacturer Part #
ARROWHEAD	420-46000
ARROWHEAD	GHI0009
J & N	420-46000
J & N	420-46003
ARROWHEAD (OLD)	GHI0009
ARROWHEAD (S/SEDED)	GHI0009
LESTER	15435
BARSANCO	090-005
BBB SMALL MOTOR	23-15435
CARGO	113148
CLUB CAR	1018294-01
DIXIE	SG-807
DIXIE NEW	341-75102
EMS	G110
IAT	TMC001B0011
JOHN DEERE	AM137931
MANDO	M063686
MINNPAR	37-2268
MPA SMALL MOTOR	P170N
NAPA SMALL MOTOR	RN15435
REMY SMALL MOTOR	RG00509
VALEO	TMC001B0011
VALEO	TMC000A0011
WAI	15435N
WAI	3-1022-01HI-1
WAI (OLD)	3-1022-01HI-1
WILSON SMALL ENGINE	72-25-15435

UNIT TYPE	Starter Generator
CURRENT TYPE	DC
VOLT	12
AMPS	25
ROTATION DIRECTION	Reversible
OD	113 mm
OD	4.449″
SHAFT OD	0.669″
SHAFT OD	17mm
LENGTH	229 mm
LENGTH	9.016″
SHAFT	Keyway
WARRANTY	1 Year
