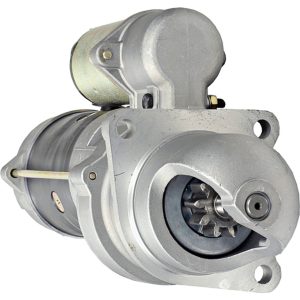

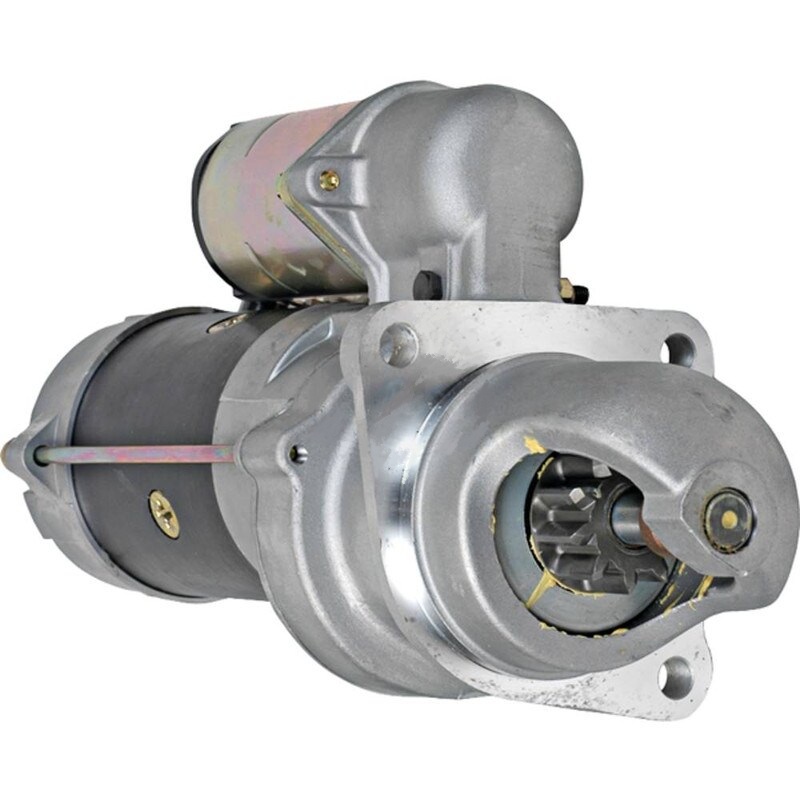

New NIKKO Starter for ALLIS CHALMERS, TORO & Various Applications w/ Cummins, Continental & Perkins Engines; NIK-0-23000-1878, 10461446, 10461447, 10465044, 10465045, 10465046, 10496881, 1107580, 1109542, 1109550, 1113275, 1113278, 1998336, 1998383, 1998387, 1998479, 1998481, 323-438; LESTER 4389, 6167, 6537, 6584

Name: New NIKKO Starter for ALLIS CHALMERS, TORO &amp; Various Applications w/ Cummins, Continental &amp; Perkins Engines; NIK-0-23000-1878, 10461446, 10461447, 10465044, 10465045, 10465046, 10496881, 1107580, 1109542, 1109550, 1113275, 1113278, 1998336, 1998383, 1998387, 1998479, 1998481, 323-438; LESTER 4389, 6167, 6537, 6584
Brand: Nikko
SKU: 12325
Availability: InStock

$298.70 $337.53

Categories: Power Units, Starter Brand: Nikko

Specifications

Unit Type	Starter
Electric Starter Type	Offset Gear Reduction (OSGR)
Rotation Direction	Clockwise
Volt	12
Power	2.900 kw
HP	21:20
Number of Teeth	10
Gear OD	1.575″
Gear OD	40mm
Length	243.600 mm
Length	9.591″
Mount Hole ID 1	11mm
Mount Hole 1 Type	Unthreaded
Mount Hole 2 Type	Unthreaded
Mount Hole ID 3	11mm
Mount Hole 3 Type	Unthreaded

Part Number & Interchanges

Manufacturer Name	Manufacturer Part #
AC DELCO TOOLS	323-438
ALLIS CHALMERS	4917197
ARROWHEAD	IMI25002-002, IS1056, MS486, NK0-23000-1878
DELCO	10461446, 10461447, 10465044, 10465045, 10465046, 10496881, 1107580, 1109542, 1109550, 1113275, 1113278, 1998336, 1998383, 1998387, 1998479, 1998481, 323-438
HYSTER	3001007, 376253
J&N ELECTRICAL PRODUCTS	410-12122, 410-12755
LESTER	4389, 6167, 6537, 6584
LETRIKA/ISKRA	IS 1056
MAHLE	MS486, MS621
NIKKO	02-23-1005, 0-23000-1830, 0-23000-1870, 0-23000-1878, 0-61000-0070

Applications

Make	Model	Engine	Year
Allis Chalmers	5000
Allis Chalmers	AC-C 35	D-175 , Diesel
Allis Chalmers	AC-C 40	D-175 , Diesel
Allis Chalmers	AC-C 45	D-175 , Diesel
Allis Chalmers	AC-C 50	D-175, Diesel
Allis Chalmers	AC-C 50	F-163
Allis Chalmers	AC-C 55	F-163
Allis Chalmers	AC-C 55	G-153
Allis Chalmers	AT-100	D-262, Diesel
Allis Chalmers	AT-120	D-262, Diesel
Allis Chalmers	AT-40	D-175, Diesel
Allis Chalmers	AT-50	D-175, Diesel
Allis Chalmers	AT-60	D-262, Diesel
Allis Chalmers	AT-70	D-262, Diesel
Allis Chalmers	AT-80	D-262, Diesel
Allis Chalmers	FD-100	D-262 , Diesel	1973
Allis Chalmers	FD-120	D-262 , Diesel	1973
Allis Chalmers	FD-30	D-175 , Diesel
Allis Chalmers	FD-40	D-175 , Diesel	1973
Allis Chalmers	FD-50	D-175 , Diesel	1973
Allis Chalmers	FD-60	D-262 , Diesel
Allis Chalmers	FD-70	D-262 , Diesel
Allis Chalmers	FD-80	D-262 , Diesel
Allis Chalmers	FP-40	D-175 , Diesel
Allis Chalmers	FP-50	D-175 , Diesel
Allis Chalmers	FPD-40	D-175 , Diesel	1972
Allis Chalmers	FPD-50	D-175 , Diesel	1972
Allis Chalmers	FPD-60	D-262 , Diesel	1977
Allis Chalmers	FPD-70	D-262 , Diesel	1977
Allis Chalmers	FPD-80	D-262 , Diesel	1977
Allis Chalmers	G	6-301 , Diesel
Allis Chalmers	RT-100	D-262, Diesel
Allis Chalmers	RT-120	D-262, Diesel
Allis Chalmers	RT-40	D-175, Diesel
Allis Chalmers	RT-50	D-175, Diesel
Allis Chalmers	RT-60	D-262, Diesel
Allis Chalmers	RT-70	D-262, Diesel
Allis Chalmers	RT-80	D-262, Diesel
Allis Chalmers	Super A
Allis Chalmers	Super A
Bobcat	1080C	4BT3.9L , Diesel
Bobcat	2400	4-236 , Diesel
Bobcat	3023	V1702 , Diesel
Bobcat	641
Bobcat	731
Bobcat	741
Bobcat	943
Case/International Harvester	4000	239.0, Diesel
Case/International Harvester	5000	239
Case/International Harvester	5000	239
Case/International Harvester	5500	239, Diesel
Case/International Harvester	5500	239, Diesel
Clark	1080C	3.9L	1988
Clark	1080C	3.9L	1988
Clark	1213
Clark	1213
Clark	2000	2.5L
Clark	2000	2.5L
Clark	641	F2L511
Clark	641	F2L511
Clark	741	F2L511
Clark	741	F2L511
Clark	843	2.5L
Clark	843	2.5L
Clark	843B
Clark	843B
Clark	943	4-236
Clark	943	4-236
Clark	974	4-236
Clark	974	4-236
Dodge	All Models (By Engine)	354cu in, 5.8L	1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972
Dorman	3DA
Ford/New Holland	1426
Ford/New Holland	1495	4-236 , Diesel
Ford/New Holland	L783	4-203 , Diesel
Ford/New Holland	L785	4-203 , Diesel
Frank Hough	H-30B	6 cyl UD-236, Diesel
Frank Hough	H-50C	D-282
Galion	10-14 Ton	UD-236	1968
Galion	10-14 Ton	UD-282	1968
Galion	13-20 Ton	UD-236
Galion	13-20 Ton	UD-282
Galion	303G	UD-282
Galion	503D	UD-236
Galion	5-8 Ton	UD-236
Galion	5-8 Ton	UD-282
Galion	8-12 Ton	UD-282
Galion	90-125	UD-282
Galion	90-125	UD-282
Galion	Chief 3	UD-282
Galion	Chief 3	UD-282
Galion	Pneumatic Rollers	UD-236
Galion	Pneumatic Rollers	UD-236
Galion	Warrior 3	UD-236
International	364	154.0, Diesel	1976
International	364	4-144, Diesel	1977
International	715D	D-310 , Diesel
International	H-30B	D-236, Diesel	1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979
International	H-30B	D-282, Diesel	1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979
International	H-30F	D-236, Diesel	1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979
International	H-30F	D-282, Diesel	1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979
International	H-30R	D-236, Diesel	1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979
International	H-30R	D-282, Diesel	1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979
International	H-50C	D-282, Diesel	1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979
International	H-60B	D-301, Diesel	1969
International	S-9	D-310, Diesel	1968, 1969
John Deere	105	404.0, Diesel
John Deere	105	404.0, Diesel
John Deere	1170
John Deere	3020	4-270 , Diesel
John Deere	4000	404.0, Diesel
John Deere	4020	404.0, Diesel
John Deere	4030	329.0, Diesel
John Deere	404	Diesel
John Deere	4230	6-404 , Diesel
John Deere	4320	6-404 , Diesel
John Deere	4400
John Deere	4430	6-404 , Diesel	1978
John Deere	444C	329.0, Diesel
John Deere	4500 Telescopic
John Deere	4520	6-404 , Diesel
John Deere	4620	6-404 , Diesel
John Deere	4630	6-404 , Diesel
John Deere	500	Diesel
John Deere	510
John Deere	544C	414.0, Diesel
John Deere	570	303
John Deere	570A	329
John Deere	6602	404.0, Diesel
John Deere	6700
John Deere	6700
John Deere	6700
John Deere	6700
John Deere	690B
John Deere	7020	404.0, Diesel
John Deere	CD3029DF	3008
John Deere	CD3029DF	3009
John Deere	CD3029DF	3016
John Deere	CD3029DF	Genset – Code 3008
John Deere	CD3029DF	Genset – Code 3009
John Deere	CD3029DF	Genset – Code 3016
John Deere	CD4039DF	3008
John Deere	CD4039DF	3009
John Deere	CD4039DF	3016
John Deere	CD4039TF	3008
John Deere	CD4039TF	3009
John Deere	CD4039TF	3016
John Deere	CD4045TF	3008
John Deere	CD4045TF	3009
John Deere	CD4045TF	Genset – Code 3008
John Deere	CD4045TF	Genset – Code 3009
John Deere	CD6059TF	3008
John Deere	CD6059TF	3009
John Deere	CD6059TF	Genset – Code 3008
John Deere	CD6059TF	Genset – Code 3009
John Deere	CD6068TF	3008
John Deere	CD6068TF	3009
John Deere	CD6068TF	Genset – Code 3008
John Deere	CD6068TF	Genset – Code 3009
John Deere	JD500C	Diesel
John Deere	JD646
Lincoln Welder	Perkins Engine
Lincoln Welder	Perkins Engine
Lincoln Welder	SA250
Lister	HB1
Massey Ferguson	MF1080	AD4-318 , Diesel
Massey Ferguson	MF1085	AD4-318 , Diesel
Massey Ferguson	MF11 Wheel Loader	A4-248 , Diesel
Massey Ferguson	MF1100	A6-354 , Diesel
Massey Ferguson	MF1105	A6-354 , Diesel
Massey Ferguson	MF1130	A6-354 , Diesel
Massey Ferguson	MF1135	A6-354 , Diesel
Massey Ferguson	MF220 Log Skidder	A4-248 , Diesel
Massey Ferguson	MF275	AD4-248 , Diesel
Massey Ferguson	MF285	4-318 , Diesel
Massey Ferguson	MF295	AD4-318 , Diesel
Massey Ferguson	MF300
Massey Ferguson	MF300	A4-248 , Diesel
Massey Ferguson	MF33 Wheel Loader	A4-248 , Diesel
Massey Ferguson	MF3303
Massey Ferguson	MF3305
Massey Ferguson	MF3366	4-300 , Diesel
Massey Ferguson	MF3366	4-302 , Diesel
Massey Ferguson	MF3366	A4-318 , Diesel
Massey Ferguson	MF350
Massey Ferguson	MF400
Massey Ferguson	MF410	A4-300 , Diesel
Massey Ferguson	MF44B
Massey Ferguson	MF450	A6-354 , Diesel
Massey Ferguson	MF50E	A4-248 , Diesel
Massey Ferguson	MF510	A6-354 , Diesel
Massey Ferguson	MF540	A4-318 , Diesel
Massey Ferguson	MF550	A6-354 , Diesel
Massey Ferguson	MF60	4-236 , Diesel
Massey Ferguson	MF60	A4-248 , Diesel
Massey Ferguson	MF60B	A4-248 , Diesel
Massey Ferguson	MF60C	A4-248 , Diesel
Massey Ferguson	MF60E	Diesel
Massey Ferguson	MF70	AD4-318 , Diesel
Massey Ferguson	MF740	A6-354 , Diesel
Massey Ferguson	MF750	A6-372 , Diesel
Massey Ferguson	MF760	A6-354 , Diesel
Massey Ferguson	MF850	AT6-354
Massey Ferguson	MF855	AT6-354
Massey Ferguson	MF860	AT6-354
Massey Ferguson	MF865	AT6-354
Massey Ferguson	MF90 (Super 90)	4A-300, Diesel
Massey Ferguson	MF90 (Super 90)	4A-300, Diesel
Massey Ferguson	MF92
Oliver	1550	232.0, Diesel
Oliver	1555	232.0, Diesel
Oliver	1650	283.0, Diesel	1969
Oliver	1655	265.0, Diesel	1974
Oliver	1750	310.0, Diesel
Oliver	1755	320.0, Diesel
Oliver	1755	320.0, Diesel
Oliver	1755D	320.0, Diesel
Oliver	1850	354.0, Diesel
Oliver	1855	310.0, Diesel
Oliver	1950T	310.0, Diesel
Oliver	1955T	310.0, Diesel
Oliver	770	Diesel
Perkins	3.152	2489cc, 3 cyl
Perkins	4.203
Perkins	4.236
Perkins	4.236	3860cc
Perkins	4-236	4 cyl
Perkins	4-236	4 cyl	1983, 1984, 1985, 1986, 1987, 1988
Perkins	6.354	5.8L
Perkins	TV8-540	8 cyl	1983, 1984
Tug	660-13	1004
Tug	660-23	1104C-44
Tug	660-4	4.236
Tug	M1A-13	1004
Tug	M1A-23	1104
Tug	MA-13	1004
Tug	MA-23	1104
Tug	MA-4	4.236
Tug	MC-13	1004
Tug	MC-23	1104
Tug	MH-13	1004
Waukesha	VRD-155	Diesel
Westerbeke	108B Six	6 cyl, Diesel	1991, 1992, 1993, 1994
Westerbeke	108C Six	247cu in, 4.1L 6 cyl, Diesel	1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007
Westerbeke	16.0 BED	4 cyl, Diesel	1990, 1991, 1992, 1993, 1994, 1995
Westerbeke	16.0 BEDA	154cu in, 2.5L 4 cyl, Diesel	1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007
Westerbeke	16.0 BEG	133cu in, 2.2L 4 cyl, Gas	1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004
Westerbeke	16.0 BEGA	133cu in, 2.2L 4 cyl, Gas	2004, 2005, 2006, 2007
Westerbeke	16.0 SBEG	133cu in, 2.2L 4 cyl, Gas	2005, 2006, 2007
Westerbeke	18.7 SBEG	133cu in, 2.2L 4 cyl, Gas	2005, 2006, 2007
Westerbeke	20.0 BED (50 Hertz)	182cu in, 3.0L 4 cyl, Diesel	1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007
Westerbeke	20.0 BED (60 Hertz)	4 cyl, Diesel	1990, 1991, 1992, 1993, 1994, 1995
Westerbeke	20.0 BEDA	154cu in, 2.5L 4 cyl, Diesel	1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007
Westerbeke	20.0 BEG (50 Hertz)	133cu in, 2.2L 4 cyl, Gas	1999, 2000, 2001, 2002, 2003, 2004
Westerbeke	20.0 BEG (60 Hertz)	133cu in, 2.2L 4 cyl, Gas	1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004
Westerbeke	20.0 BEGA (50 Hertz)	133cu in, 2.2L 4 cyl, Gas	2004, 2005, 2006, 2007
Westerbeke	20.0 BEGA (60 Hertz)	133cu in, 2.2L 4 cyl, Gas	2004, 2005, 2006, 2007
Westerbeke	20.0 SBEG	133cu in, 2.2L 4 cyl, Gas	2005, 2006, 2007
Westerbeke	22.5 SBEG	133cu in, 2.2L 4 cyl, Gas	2005, 2006, 2007
Westerbeke	25.0 BED (50 Hertz)	Diesel	1993, 1994
Westerbeke	25.0 BED (60 Hertz)	182cu in, 3.0L 4 cyl, Diesel	1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007
Westerbeke	25.0 BEDA	211cu in, 3.5L 4 cyl, Diesel	1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007
Westerbeke	25.0 BEDB	Diesel	1994
Westerbeke	25.0 BEG	133cu in, 2.2L 4 cyl, Gas	1999, 2000, 2001, 2002, 2003, 2004
Westerbeke	25.0 BEGA	133cu in, 2.2L 4 cyl, Gas	2004, 2005, 2006, 2007
Westerbeke	25.0 WMF (50 Hertz)	Diesel	1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993
Westerbeke	32.0 BED	Diesel	1993, 1994
Westerbeke	32.0 BEDA	211cu in, 3.5L 4 cyl, Diesel	1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007
Westerbeke	32.0 BEDB	Diesel	1994
Westerbeke	32.0 WMF	Diesel	1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993
Westerbeke	32.0 WTA	Diesel	1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993
Westerbeke	64A Four	182cu in, 3.0L 4 cyl, Diesel	2003, 2004, 2005, 2006, 2007
Westerbeke	71C Four	154cu in, 2.5L 4 cyl, Diesel	1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007
Westerbeke	82B Four	182cu in, 3.0L 4 cyl, Diesel	1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007
Westerbeke	90A Four	211cu in, 3.5L 4 cyl, Diesel	1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007
White	1555 diesel	232, Diesel	1975
White	1655 diesel	283, Diesel
White	1750 diesel	Diesel
White	1755 diesel	320, Diesel
White	1755 diesel	320, Diesel
White	1850 diesel	Diesel
White	1855 diesel	Diesel
White	1950T diesel	Diesel	1974
White	1955T diesel	Diesel
White	2-105	6-354
White	2-110	6-354
White	Feb-85	6-354
White	Feb-88	6-354
White	770 diesel	216, Diesel
White	770 diesel	216, Diesel
White	880 diesel	216, Diesel	1966

+1 (800) 978 4880

[email protected]

Login

Specifications

Part Number & Interchanges

Applications

You may also like…

NEW Starter for JOHN DEERE CD3029DF, CD4039DF, CD4045TF, CD6059TF & CD6068TF Power Units Applications; 410-12122, 10461446, 10461447, 10465044, 10465045, 10465046, 10496881, 1107580, 1109542, 1109550, 1113275, 1113278, 1998336; LESTER 4389, 6167, 6537, 6584

1-Year Warranty
– All Units Covered

Get in Touch

Fulfillment Facility

Specifications

Related products

You may also like…
