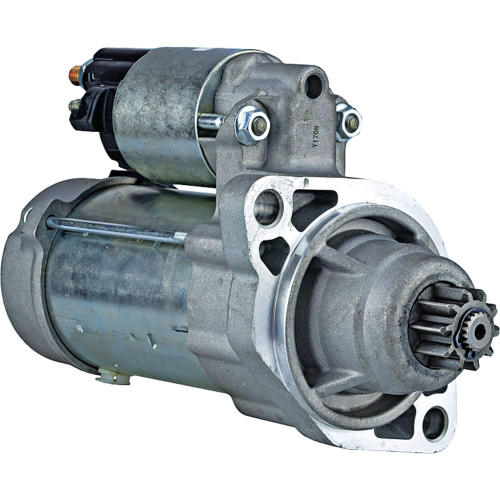

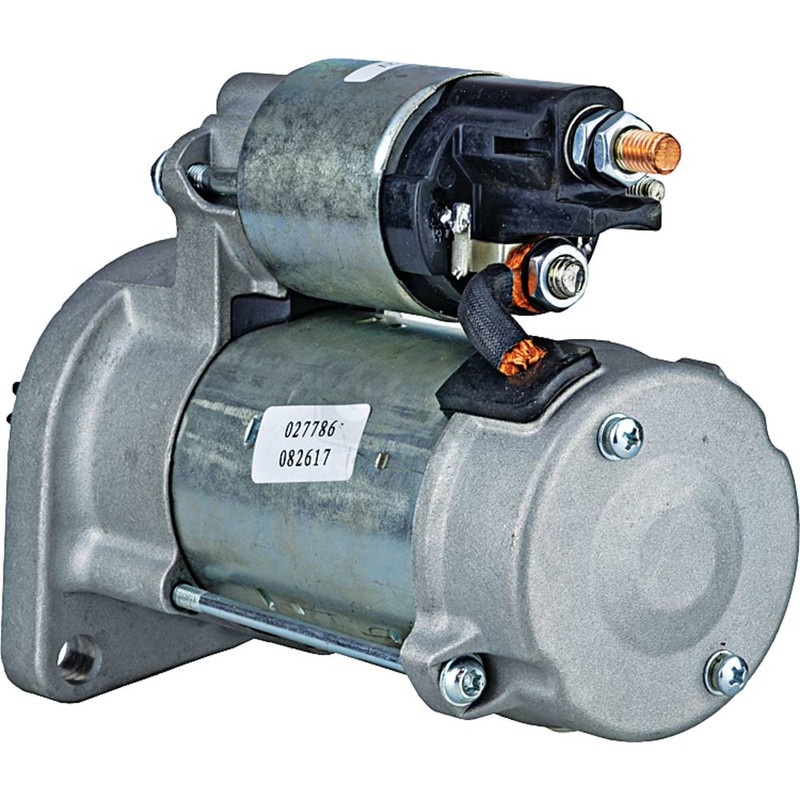

NEW Starter c/w START-STOP System for PORSCHE 911 Series, Boxster & Cayman Auto & Light Truck; 410-52543, 428000-5580, 9A1-604-103-00; LESTER 17607
$219.99
Specifications
| UNIT TYPE | Starter |
| ELECTRIC STARTER TYPE | Permanent Magnet Gear Reduction (PMGR) |
| START STOP SYSTEM COMPATIBLE | TRUE |
| VOLT | 12 |
| POWER | 1.200 kw |
| HP | 1.609 |
| ROTATION DIRECTION | Clockwise |
| NUMBER OF TEETH | 10 |
| GEAR OD | 1.091″ |
| GEAR OD | 27.700mm |
| LENGTH | 165 mm |
| LENGTH | 6.496″ |
| MOUNT HOLE ID 1 | 11.100mm |
| MOUNT HOLE 1 TYPE | Unthreaded |
| MOUNT HOLE 2 TYPE | Unthreaded |
| REGISTRY OD | 2.992″ |
| REGISTRY OD | 76mm |
| MOUNTING EAR DISTANCE 1 | 111.100mm |
| MOUNTING EAR DISTANCE 1 | 4.374″ |
| WARRANTY | 1 Year |
| ADD’L INFO | M8 B+ & Motor Studs, M6 S Stud |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | SND0807 |
| DENSO | 428000-5580 |
| J&N ELECTRICAL PRODUCTS | 410-52543 |
| LESTER | 17607 |
| LUCAS ELECTRIC | LRS03882 |
| PORSCHE | 9A1-604-103-00 |
