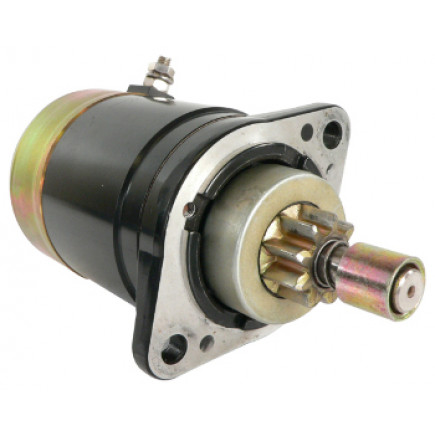

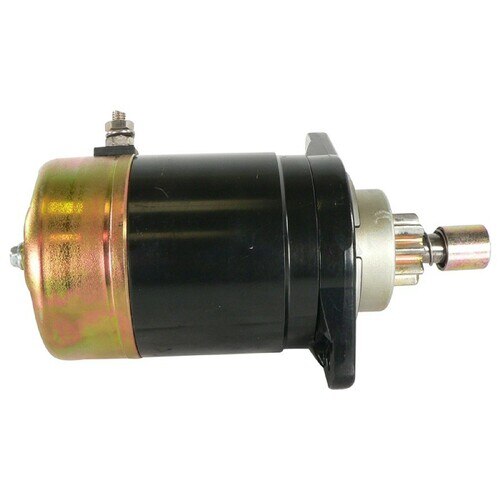

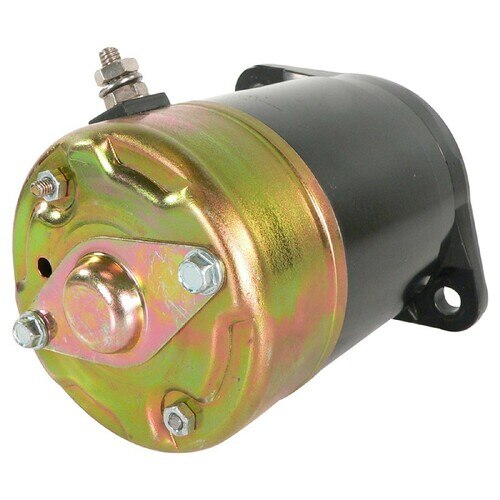

NEW Starter for NISSAN, TOHATSU Engines - Marine Outboard; SHI0164, 410-44087; HITACHI S108-98, S108-98N; TOHATSU346-76010-0, 346-76010-0A0, 346-76010-0M; LESTER 19710

NEW Starter for NISSAN, TOHATSU Engines – Marine Outboard; SHI0164, 410-44087; HITACHI S108-98, S108-98N; TOHATSU346-76010-0, 346-76010-0A0, 346-76010-0M; LESTER 19710

Name: NEW Starter for NISSAN, TOHATSU Engines - Marine Outboard; SHI0164, 410-44087; HITACHI S108-98, S108-98N; TOHATSU346-76010-0, 346-76010-0A0, 346-76010-0M; LESTER 19710
SKU: 10925
Availability: InStock

$299.99 $338.99

Category: Starter

Additional information

Weight	2.35 kg
Dimensions	21 × 11 × 12 cm

Specifications

UNIT TYPE	Starter
VOLT	12
ROTATION DIRECTION	Counter Clockwise
ELECTRIC STARTER TYPE	Direct Drive (DD)
NUMBER OF TEETH	9
GEAR OD	1.134″
GEAR OD	28.800mm
LENGTH	121 mm
LENGTH	4.764″
MOUNT HOLE ID 1	8.600mm
MOUNT HOLE 1 TYPE	Unthreaded
MOUNT HOLE 2 TYPE	Unthreaded
REGISTRY OD	2.445″
REGISTRY OD	62.100mm
WARRANTY	1 Year
ADD’L INFO	NISSAN / TOHATSU MARINE 25-30HP

Applications

MAKE	MODEL	ENGINE	YEAR
Nissan	NS25	25H	1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003
Nissan	NS25	2-Strok	1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003
Nissan	NS30	2-Strok	1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003
Nissan	NS30	30H	1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003
Tohatsu	M25	25H	1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005
Tohatsu	M30	30H	1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003
Tohatsu	MS25	2-Strok	1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003
Tohatsu	MS30	2-Strok	1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003

Manufacturer Name	Manufacturer Part #
ARROWHEAD	S108-98, SHI0164
EMP	Apr-31
HITACHI	S108-98, S108-98N
J&N ELECTRICAL PRODUCTS	410-44087
LESTER	19710
SIERRA MARINE	18-6431
TOHATSU	346-76010-0, 346-76010-0A0, 346-76010-0M
