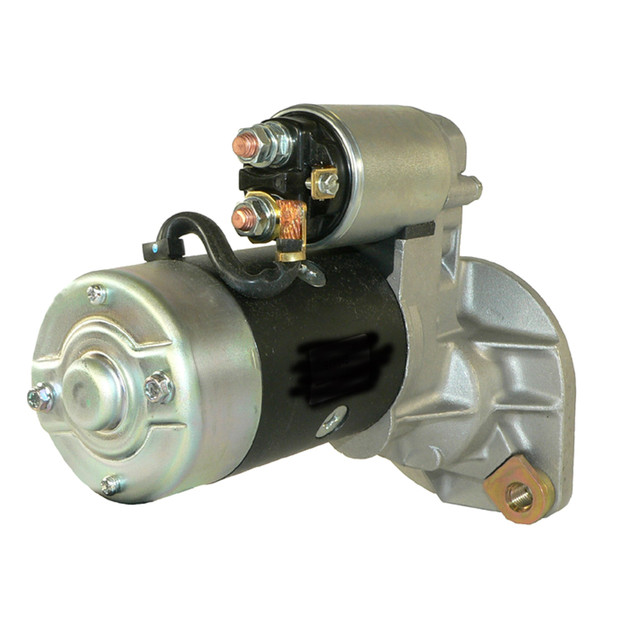

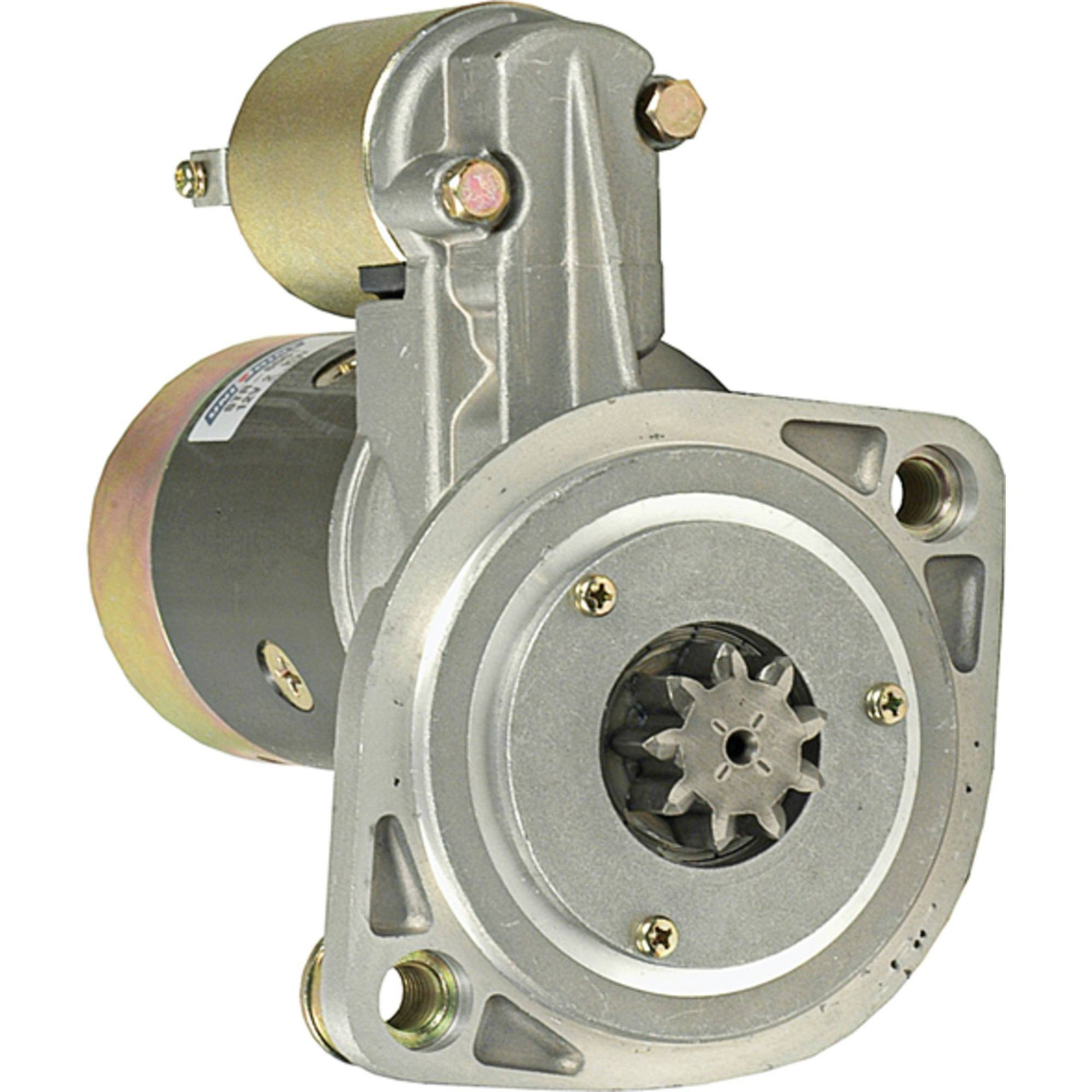

NEW Starter for THERMO KING CG-II M12, CG-II M20, CG-II M22, CG-II M30 Generators & OTH Applications; 410-44003, 20-45-1285, 45-1229, 45-1285, 845-1285, 8941492490, 8944299780; LESTER 17088
$209.99
Specifications
| UNIT/PART TYPE | Starter |
| ELECTRIC STARTER TYPE | Offset Gear Reduction (OSGR) |
| VOLT | 12 |
| POWER | 2 kw |
| HP | 2.682 |
| ROTATION DIRECTION | Clockwise |
| NUMBER OF TEETH | 9 |
| GEAR OD | 1.276″ |
| GEAR OD | 32.400mm |
| MOUNT HOLE ID 1 | M12x1.75 |
| MOUNT HOLE 1 TYPE | Threaded |
| MOUNT HOLE ID 2 | M12x1.75 |
| MOUNT HOLE 2 TYPE | Threaded |
| WARRANTY | 1 Year |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | IMI214-004, IS9321, MS663, ND281-9301, S13-84B, SHI0021 |
| BOSCH | SR396X |
| CARRIER TRANSICOLD | 20-45-1285 |
| CUMMINS | 3675149RX |
| DELCO | 10465437 |
| HITACHI | S13-84, S13-84A, S13-84B |
| ISUZU | 8941492490, 8944299780 |
| J&N ELECTRICAL PRODUCTS | 410-44001, 410-44003 |
| LESTER | 17088 |
| LETRIKA/ISKRA | IS 9321 |
| LUCAS ELECTRIC | LRS01293, S9606TK |
| MAHLE | MS663 |
| THERMO KING | 10-45-1285, 45-1229, 45-1285, 845-1285 |
Applications
| MAKE | MODEL | ENGINE | YEAR |
| Carrier Transicold | Various Models | Isuzu C20 | |
| Chevrolet | LUV | 2.2L(134) L4 Diesel | 1981, 1982 |
| Chevrolet | LUV | 2200cc, 2.2L/134CI L4 | 1981, 1982 |
| Chevrolet | LUV | 2200cc, 2.2L/134CI L4 Diesel | 1981, 1982 |
| Chevrolet | S10 BLAZER | 2.2L(134) L4 (Diesel | 1984 |
| Chevrolet | S10 Blazer | 2200cc, 2.2L/134CI L4 Diesel | 1984 |
| Chevrolet | S10 Blazer | 2200cc, 4WD, 2.2L/134CI L4 | 1984 |
| Chevrolet | S10 PICKUP | 2.2L(134) L4 Diesel | 1983, 1984, 1985 |
| Chevrolet | S10 | 2200cc, 2.2L/134CI L4 | 1983, 1984, 1985 |
| Chevrolet | S10 | 2200cc, 2.2L/134CI L4 Diesel | 1983, 1984, 1985 |
| Elgin Sweeper | Eagle | Isuzu C-240 Ds | |
| Elgin Sweeper | Rear Sweeper | C240 Isuzu Engine | |
| Gehl | MG747B | Diesel | |
| GMC | S-15 PICKUP | 2.2L(134) L4 Diesel | 1984, 1985 |
| GMC | S15 | 2200cc, 2.2L/134CI L4 | 1984, 1985 |
| GMC | S15 | 2200cc, 2.2L/134CI L4 Diesel | 1984, 1985 |
| Hyster | S-30XL | Ga | |
| Hyster | S-30XM | Ga | |
| Hyster | S-40XL | GM 4-153 Ga | |
| Hyster | S-50XL | GM 4-153 Ga | |
| Hyster | S-60XL | GM 4-153 Ga | |
| Isuzu | Misc. Industrial Equipment | 2AB1 Engine | |
| Isuzu | Misc. Industrial Equipment | 3AB1 Engine | |
| Isuzu | Misc. Industrial Equipment | 4FA1 Engine | |
| Isuzu | Misc. Industrial Equipment | 4FB1 Engine | |
| Isuzu | Misc. Industrial Equipment | C-190 Engine | |
| Isuzu | Misc. Industrial Equipment | C-201 Engine | |
| Isuzu | Misc. Industrial Equipment | C-223 Engine | |
| Isuzu | Misc. Industrial Equipment | C-240 Engine | |
| Isuzu | Misc. Industrial Equipment | KDB Engine | |
| Isuzu | PICKUP | 2.2L Diesel | 1981, 1982, 1983, 1984, 1985, 1986, 1987 |
| Isuzu | Pickup | 2238cc, 2.2L L4 | 1981, 1982, 1983, 1984, 1985, 1986, 1987 |
| Isuzu | Pickup | 2238cc, 2.2L L4 Diesel | 1981, 1982, 1983, 1984, 1985, 1986, 1987 |
| Isuzu | TROOPER | 2.2L Diesel | 1984, 1986, 1987 |
| Isuzu | Trooper | 2238cc, 2.2L L4 | 1984, 1986, 1987 |
| Isuzu | Trooper | 2238cc, 2.2L L4 Diesel | 1984, 1986, 1987 |
| John Deere | 125 | 2000cc, 40HP 2L Diesel | 1984 |
| John Deere | 24A | Isuzu 36HP Diesel | 1979, 1980, 1981, 1982, 1983 |
| John Deere | JD24A | Isuzu 36HP Diesel | 1977, 1978, 1979 |
| Thermo King | CG-II M12 | 2200cc, 2.2L TK DI-SE Diesel | |
| Thermo King | CG-II M20 | 2200cc, 2.2L TK DI-SE Diesel | |
| Thermo King | CG-II M22 | 2200cc, 2.2L TK DI-SE Diesel | |
| Thermo King | CG-II M30 | 2200cc, 2.2L TK DI-SE Diesel | |
| Thermo King | NWD Series | Isuzu 2.0L (TK C201) Diesel | |
| Thermo King | SB-I | ||
| Thermo King | SB-II 30 di / TC | ||
| Thermo King | SB-II 30 MAX | ||
| Thermo King | SB-II 30 TC | ||
| Thermo King | SB-III MAX | ||
| Thermo King | SB-III | Isuzu 2.0L (TK C201) Diesel | |
| Thermo King | Sentry 30 di / TC | ||
| Thermo King | Sentry 30 di | ||
| Thermo King | Sentry 30 TC | ||
| Thermo King | Sentry SD1200 | Isuzu C20 | |
| Thermo King | Sentry | Isuzu 2.0L (TK C201) Diesel | |
| Thermo King | SNWD | ||
| Thermo King | Super II 30 / MAX | ||
| Thermo King | Super II 30 Max | ||
| Thermo King | Super II 30 | ||
| Thermo King | Super II | ||
| Thermo King | Super NWD | Isuzu 2.0L (TK C201) Diesel | |
| White | 43 4WD Field Boss | Isuzu 4-145 Ds | |
| White | 43 Field Boss | Isuzu 4-145 Ds | |
| White | 43 Field Boss | Isuzu 4-145 Ds |
