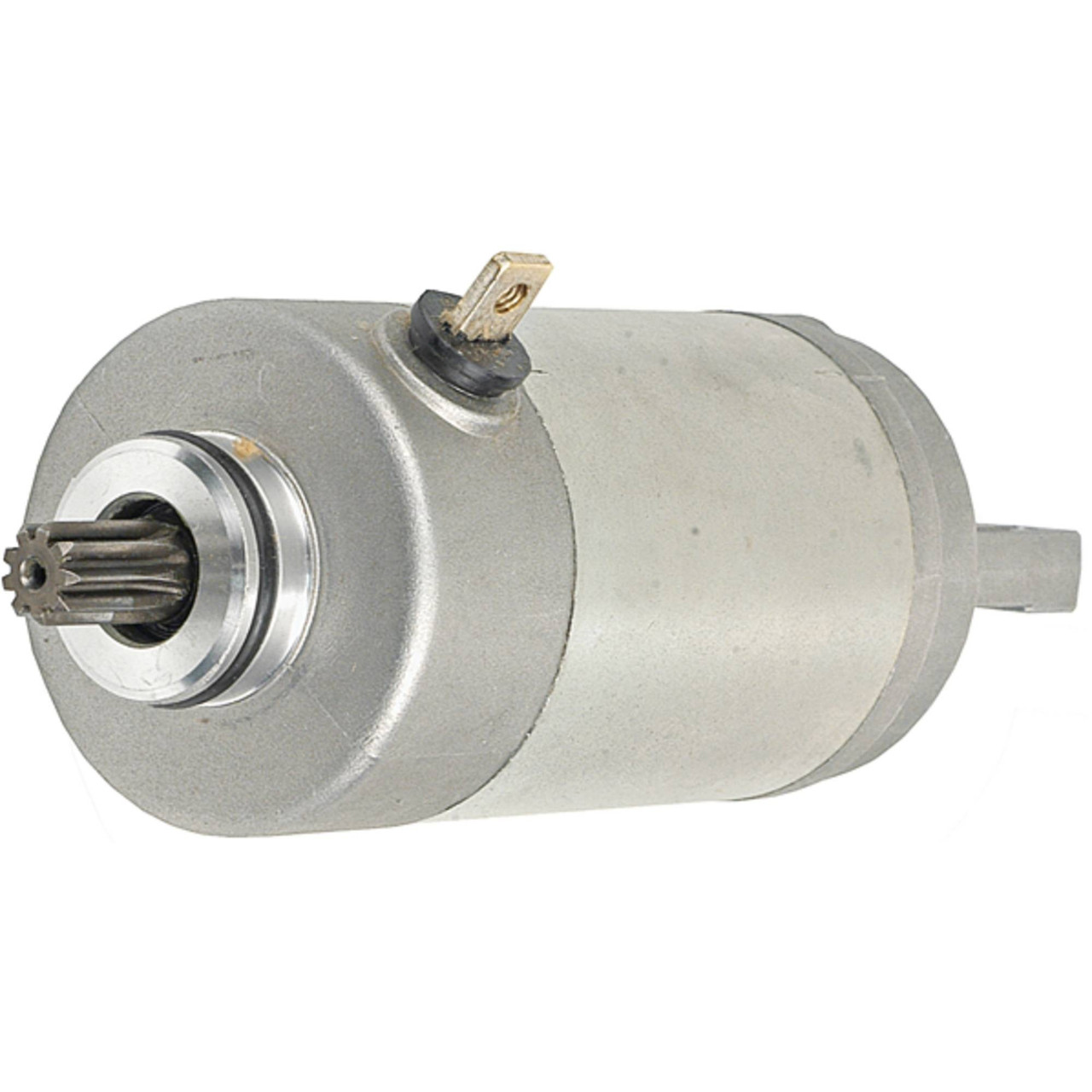

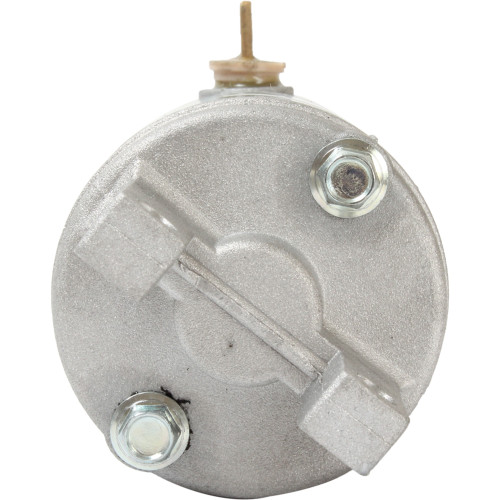

NEW Starter for YAMAHA YFA1 125 Breeze & YFM 125 Grizzly ATV; 410-54015, STY0062, 3FA81800-01-00; LESTER 18755
$99.99
Specifications
| UNIT TYPE |
Starter |
| ELECTRIC STARTER TYPE |
Permanent Magnet Direct Drive (PMDD) |
| VOLT |
12 |
| ROTATION DIRECTION |
Counter Clockwise |
| NUMBER OF TEETH |
9 |
| GEAR OD |
0.453″ |
| GEAR OD |
11.500mm |
| MOUNT HOLE ID 1 |
6.600mm |
| MOUNT HOLE 1 TYPE |
Unthreaded |
| MOUNT HOLE 2 TYPE |
Unthreaded |
| WARRANTY |
1 Year |
|
M5-0.8 Threaded Tab for Battery Connection |
Part Number & Interchanges
| Manufacturer Name |
Manufacturer Part # |
| ARROWHEAD |
SMU0062 |
| HI LEVEL |
STY0062 |
| J&N ELECTRICAL PRODUCTS |
410-54015 |
| LESTER |
18755 |
| YAMAHA |
3FA81800-01-00 |
Applications
| MAKE |
MODEL |
ENGINE |
YEAR |
| Yamaha |
YFA1 125 Breeze |
|
1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004 |
| Yamaha |
YFM 125 Grizzly |
|
2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013 |
