NEW Starter Kit for ARCTIC CAT 366 FIS & 400 TRV FIS ATVs; 410-22076, 0837-009, 3313-433; LESTER 19086
$139.99 $158.19
Specifications
| PART TYPE | Starter |
| CRITICAL NOTE | Arctic Cat Has replaced 3313-433 With Kit 0837-009. |
| ELECTRIC STARTER TYPE | Permanent Magnet Direct Drive (PMDD) |
| ROTATION DIRECTION | Clockwise |
| VOLT | 12 |
| NUMBER OF TEETH | 10 |
| GEAR OD | 0.504″ |
| GEAR OD | 12.800mm |
| LENGTH | 145.300 mm |
| LENGTH | 5.720″ |
| MOUNT HOLE ID 1 | 6.100mm |
| MOUNT HOLE 1 TYPE | Unthreaded |
| MOUNT HOLE 2 TYPE | Unthreaded |
| MOUNTING EAR DISTANCE 1 | 3.819″ |
| MOUNTING EAR DISTANCE 1 | 97mm |
| MOUNTING EAR DISTANCE 2 | 3.819″ |
| MOUNTING EAR DISTANCE 2 | 97mm |
| REGISTRY OD | 1.185″ |
| REGISTRY OD | 30.100mm |
| WARRANTY | 1 Year |

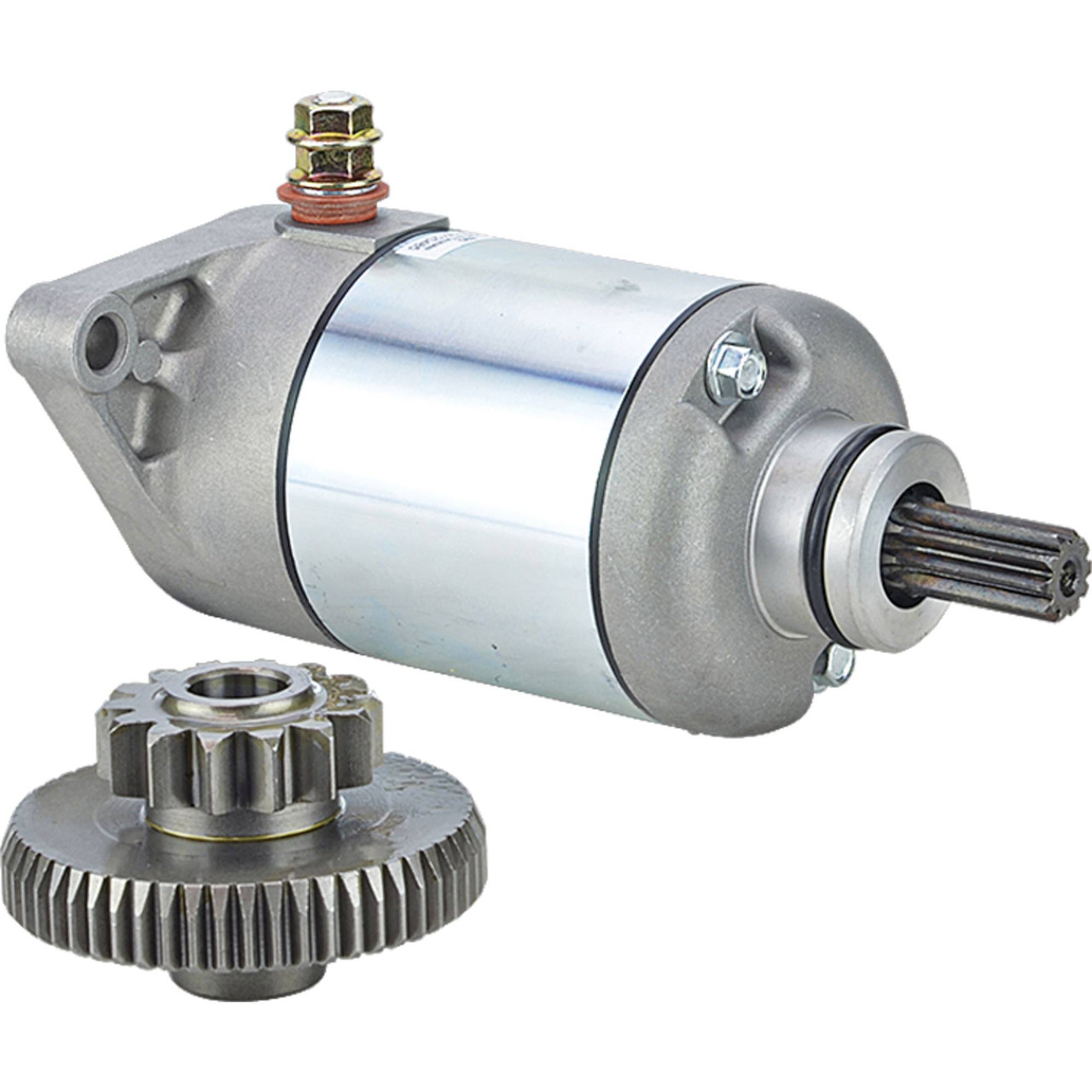

| The Kit Includes a starter, Drive and a Cover Gasket. @The Drive MUST Be Replaced With the Starter. |
