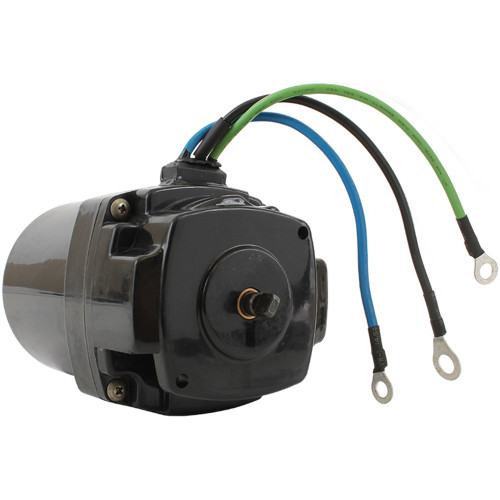

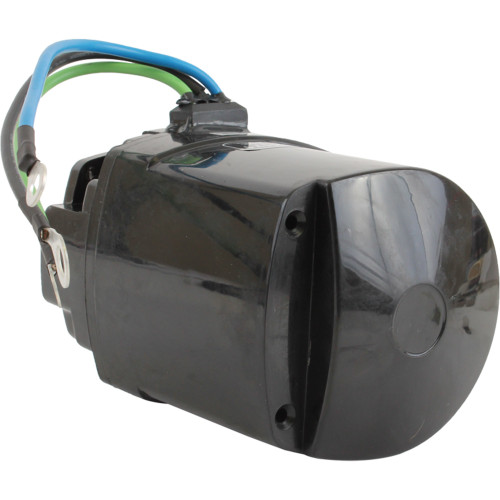

NEW Tilt/Trim Motor for MERCURY MARINE Outboard Engines; 430-22005, 17649, 17649A02, 17649A1, 17649T, 87828, 891736T, 18-6722; LESTER 10822M
$172.99
Specifications
| UNIT TYPE | Tilt/Trim Motor |
| CURRENT TYPE | DC |
| ROTATION DIRECTION | Reversible |
| VOLT | 12 |
| OD | 3.622″ |
| OD | 92 mm |
| SHAFT OD | 0.378″ |
| SHAFT OD | 9.600mm |
| LENGTH | 171 mm |
| LENGTH | 6.732″ |
| TERMINAL 2 SIZE | Wire |
| TERMINAL 3 SIZE | Wire |
| TERMINAL 4 SIZE | Wire |
| SHAFT | 3.8mm Thick Tang |
| WARRANTY | 1 Year |
| Includes (3) 175mm Long Leads With Ring Terminals & Late Style-Will Replace Early Style |
