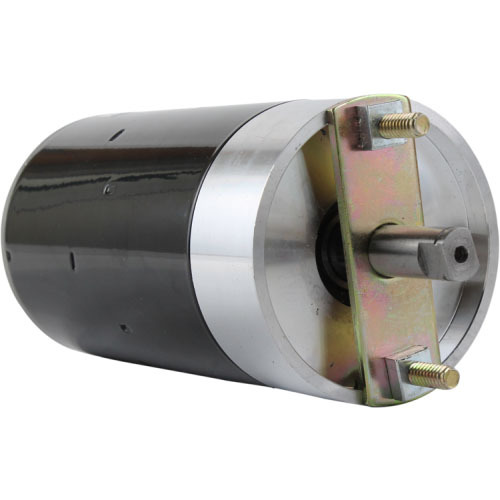

NEW Winch Motor for PERMANENT MAGNET & WARN WINCH Applications; 430-21004, 4348828, 4348828M030MM, 4348828-M030MM, MM43488; LESTER 10756
$349.99
Double Ball Bearing
Specifications
| UNIT TYPE | Winch Motor |
| CURRENT TYPE | DC |
| VOLT | 12 |
| ROTATION DIRECTION | Reversible |
| OD | 3.134″ |
| OD | 79.600 mm |
| SHAFT OD | 0.520″ |
| SHAFT OD | 13.200mm |
| LENGTH | 199 mm |
| LENGTH | 7.835″ |
| TERMINAL 2 SIZE | M6-1.0 |
| TERMINAL 3 SIZE | M6-1.0 |
| SHAFT | Tang |
| WARRANTY | 1 Year |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | SAB0119 |
| J & N | 430-21004 |
| LESTER | 10756 |
| MINNPAR | 57-2241 |
| REFERENCE NUMBER | 13880 |
| REFERENCE NUMBER | 25311 |
| UNITED TECH | 4348828, 4348828M030MM, 4348828-M030MM, MM43488 |
| WESTERN MOTORS | W-8804 |
| WESTERN MOTORS | W-8804B |
