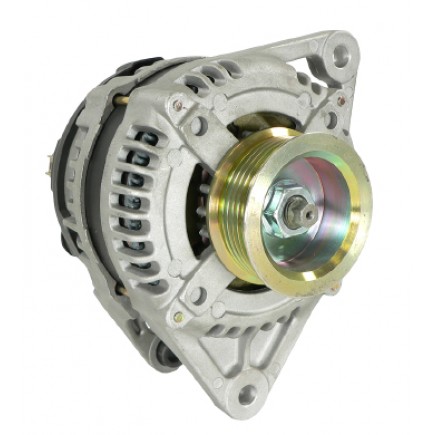

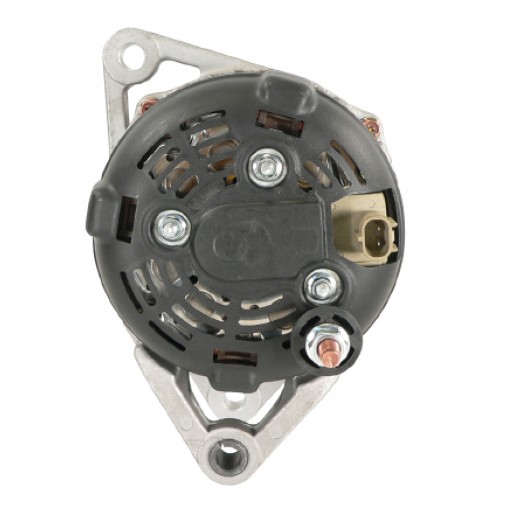

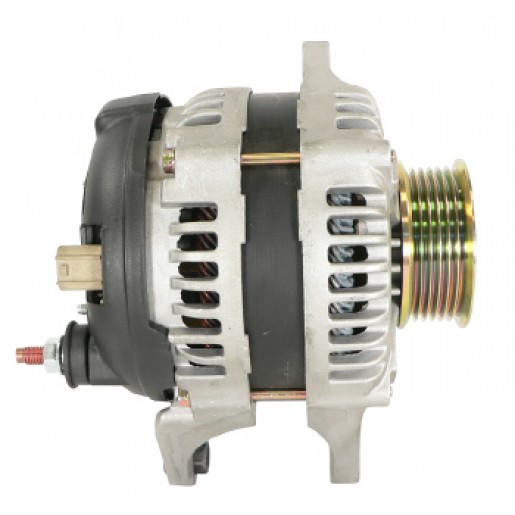

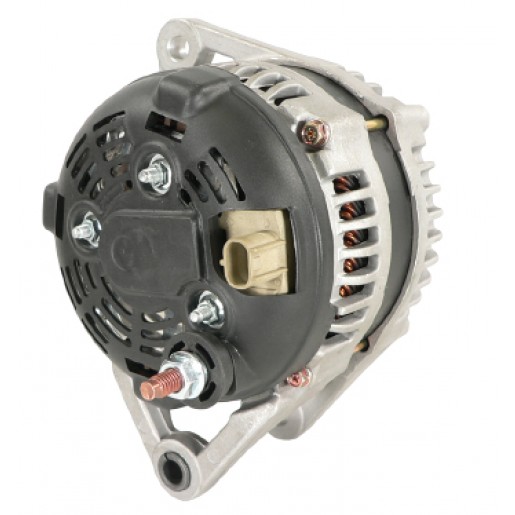

NEW Alternator for CHRYSLER & DODGE Applications; AND0383, 4606622AA, 210-0487, 421000-0120, 421000-0121; LESTER 13923

$299.99

Email
Categories: ,

Specifications

UNIT TYPE Alternator
FAMILY Denso SC (Hairpin)
VOLT 12
AMPS 130
REGULATOR CLOCK 3:00
QUALITY TYPE Standard
ROTATION DIRECTION Clockwise
MOUNT HOLE ID 1 11.200mm
MOUNT HOLE 1 TYPE Unthreaded
MOUNT HOLE 2 TYPE Unthreaded
MOUNT HOLE ID 3 10.600mm
MOUNT HOLE 3 TYPE Unthreaded
MOUNTING EAR THICKNESS 0.512″
MOUNTING EAR THICKNESS 13mm
MOUNTING EAR 2 THICKNESS 0.528″
MOUNTING EAR 2 THICKNESS 13.400mm
MOUNTING EAR 3 THICKNESS 0.787″
MOUNTING EAR 3 THICKNESS 20mm
FAN LOCATION Internal
REGULATOR LOCATION External
TERMINAL ID 2 B+
TERMINAL 2 SIZE M8x1.25
TERMINAL ID 3 F1
TERMINAL 3 SIZE Spade
TERMINAL ID 4 F2
TERMINAL 4 SIZE Spade
POLARITY Negative
NUMBER OF GROOVES 6
GROOVE OD 2.559″
GROOVE OD 65mm
PULLEY TYPE Solid
PULLEY OUTER DIAMETER 2.807″
PULLEY OUTER DIAMETER 71.300mm
WARRANTY 1 Year



WRITE YOUR OWN REVIEW

We appreciate your feedback about our parts, services experience or anything which may help us to serve you better.
[testimonial_view id=”1″]

Part Number & Interchanges

Manufacturer Name Manufacturer Part #
ARROWHEAD AND0383, VND0383
CHRYSLER MOTORS 4606622AA
DELCO 334-1451
DENSO 210-0487, 421000-0120, 421000-0121
J&N ELECTRICAL PRODUCTS 400-52593, 400-52594
JANNCO 400-52594R
LESTER 13923

Part fit

Year Make Model Engine
Year Make Model Engine
2002 - 2004 CHRYSLER 300 SERIES 3.5L(215) V6
2002 - 2004 CHRYSLER CONCORDE 3.5L(215) V6
2002 - 2004 CHRYSLER INTREPID 3.5L(215) V6
2002 - 2004 DODGE INTREPID 3.5L(215) V6
