NEW Alternator for CHRYSLER & DODGE Applications; AND0383, 4606622AA, 210-0487, 421000-0120, 421000-0121; LESTER 13923
October 19, 2019
NEW Alternator for CHRYSLER 300 & DODGE Charger Applications; AND0499, 4896803AB, 4896803AC, 421000-0630; LESTER 11382, 11506
October 19, 2019

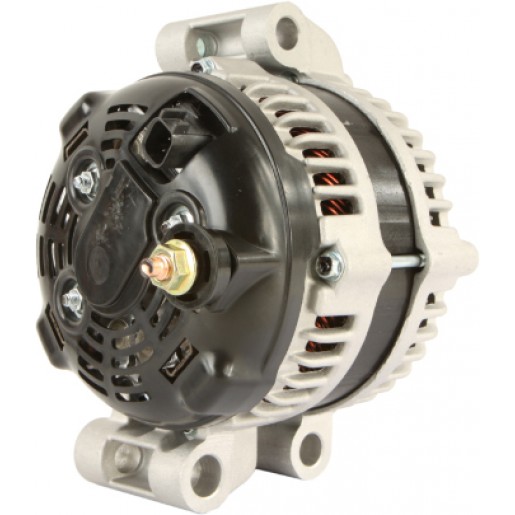

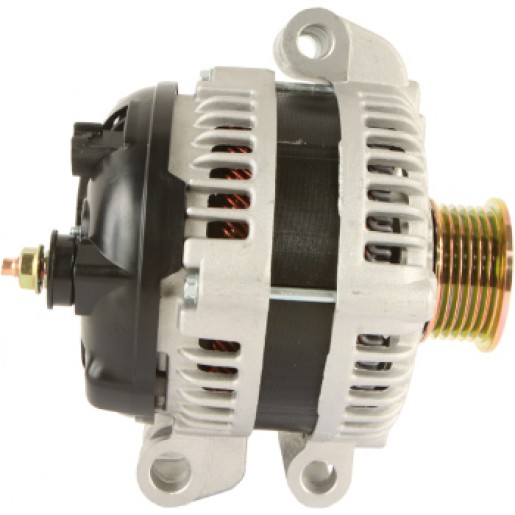

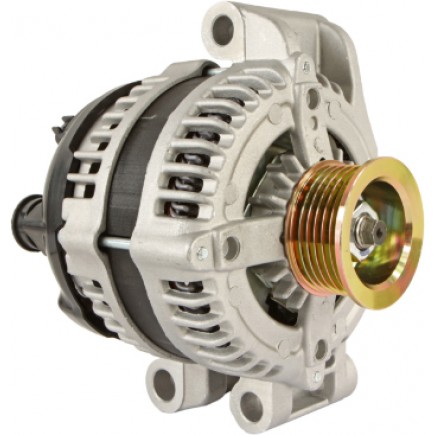

NEW Alternator for CHRYSLER & DODGE Applications; AND0476, 4896805AD, 4896805AE, 210-0653, 210-1126, 421000-0620, 421000-0621; LESTER 11383
$264.99
Specifications
| UNIT TYPE | Alternator |
| FAMILY | Denso SC (Hairpin) |
| VOLT | 12 |
| AMPS | 160 |
| REGULATOR CLOCK | 1:00 |
| ROTATION DIRECTION | Clockwise |
| MOUNT HOLE ID 1 | 10.800mm |
| MOUNT HOLE 1 TYPE | Unthreaded |
| MOUNT HOLE 2 TYPE | Unthreaded |
| MOUNT HOLE ID 3 | 12.600mm |
| MOUNT HOLE 3 TYPE | Unthreaded |
| MOUNTING EAR THICKNESS | 2.697″ |
| MOUNTING EAR THICKNESS | 68.500mm |
| MOUNTING EAR 2 THICKNESS | 2.559″ |
| MOUNTING EAR 2 THICKNESS | 65mm |
| MOUNTING EAR 3 THICKNESS | 2.559″ |
| MOUNTING EAR 3 THICKNESS | 65mm |
| FAN LOCATION | Internal |
| REGULATOR LOCATION | External |
| TERMINAL ID 2 | B+ |
| TERMINAL 2 SIZE | M8x1.25 |
| TERMINAL ID 3 | F1 |
| TERMINAL 3 SIZE | Spade |
| TERMINAL ID 4 | S |
| TERMINAL 4 SIZE | Spade |
| POLARITY | Negative |
| NUMBER OF GROOVES | 6 |
| PULLEY TYPE | Solid |
| PULLEY OUTER DIAMETER | 2.362″ |
| PULLEY OUTER DIAMETER | 60mm |
| WARRANTY | 1 Year |
WRITE YOUR OWN REVIEW
We appreciate your feedback about our parts, services experience or anything which may help us to serve you better.
[testimonial_view id=”1″]
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | AND0476, VND0476 |
| BOSCH | AL6469X |
| CHRYSLER MOTORS | 4896805AD, 4896805AE |
| DENSO | 210-0653, 210-1126, 421000-0620, 421000-0621 |
| J&N ELECTRICAL PRODUCTS | 400-52194, 400-52194R |
| LESTER | 11383 |
| LUCAS ELECTRIC | LRA04147 |
Part fit
| Year | Make | Model | Engine |
|---|---|---|---|
| Year | Make | Model | Engine |
| 2008 | DODGE | MAGNUM | 2.7L(167) V6 |
| 2008 | DODGE | MAGNUM | 3.5L(215) V8 |
| 2008 | DODGE | MAGNUM | 5.7L(345) V8 |
| 2008 | DODGE | MAGNUM | 6.1L(370) V8 |
| 2009 - 2010 | CHRYSLER | 300 SERIES | 2.7L(167) V6 |
| 2009 - 2010 | CHRYSLER | 300 SERIES | 3.5L(215) V6 |
| 2009 - 2010 | CHRYSLER | 300 SERIES | 5.7L(345) V8 |
| 2009 - 2010 | CHRYSLER | 300 SERIES | 6.1L(370) V8 |
| 2009 - 2010 | DODGE | CHALLENGER | 3.5L(215) V6 |
| 2009 - 2010 | DODGE | CHALLENGER | 5.7L(345) V8 |
| 2009 - 2010 | DODGE | CHALLENGER | 6.1L(370) V8 |
| 2009 - 2010 | DODGE | CHARGER | 2.7L(167) V6 |
| 2009 - 2010 | DODGE | CHARGER | 3.5L(215) V6 |
| 2009 - 2010 | DODGE | CHARGER | 5.7L(345) V8 |
| 2009 - 2010 | DODGE | CHARGER | 6.1L(370) V8 |
| 2012 - 2014 | CHRYSLER | 300 SERIES | 6.4L (392) V8 |
