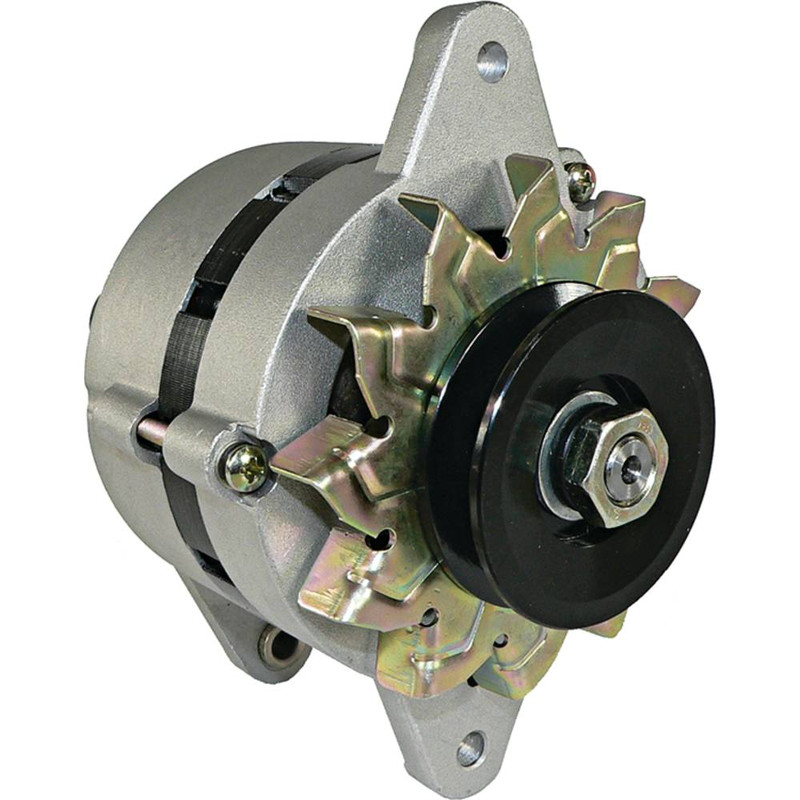

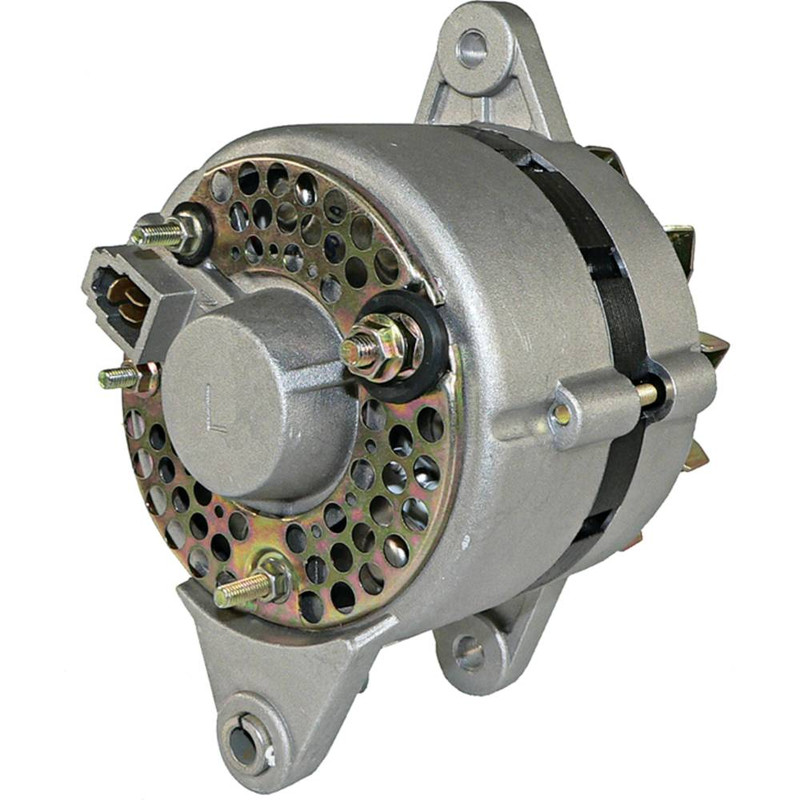

NEW Alternator for KUBOTA Engines - Industrial & Tractors, TOYOTA Forklift/ Lift Truck; 400-52294, 021000-2840, 021000-5670, 021000-6840, 5321-64010, 15321-64011, 15321-64012; LESTER 12053, 14502, 14510

NEW Alternator for KUBOTA Engines – Industrial & Tractors, TOYOTA Forklift/ Lift Truck; 400-52294, 021000-2840, 021000-5670, 021000-6840, 5321-64010, 15321-64011, 15321-64012; LESTER 12053, 14502, 14510

Name: NEW Alternator for KUBOTA Engines - Industrial &amp; Tractors, TOYOTA Forklift/ Lift Truck; 400-52294, 021000-2840, 021000-5670, 021000-6840, 5321-64010, 15321-64011, 15321-64012; LESTER 12053, 14502, 14510
SKU: 8873
Availability: InStock

$99.99

Categories: Alternator, Engines - Industrial, Excavator, Forklift/ Lift Truck, Tractor

Specifications

UNIT TYPE	Alternator
VOLT	12
AMPS	35
REGULATOR CLOCK	10:00
ROTATION DIRECTION	Clockwise
MOUNT HOLE ID 1	8.300mm
MOUNT HOLE 1 TYPE	Unthreaded
MOUNT HOLE 2 TYPE	Unthreaded
MOUNT HOLE ID 3	8.400mm
MOUNT HOLE 3 TYPE	Unthreaded
MOUNTING EAR THICKNESS	0.500″
MOUNTING EAR THICKNESS	12.700mm
MOUNTING EAR 2 THICKNESS	0.500″
MOUNTING EAR 2 THICKNESS	12.700mm
MOUNTING EAR 3 THICKNESS	0.654″
MOUNTING EAR 3 THICKNESS	16.600mm
FAN LOCATION	Internal
REGULATOR LOCATION	External

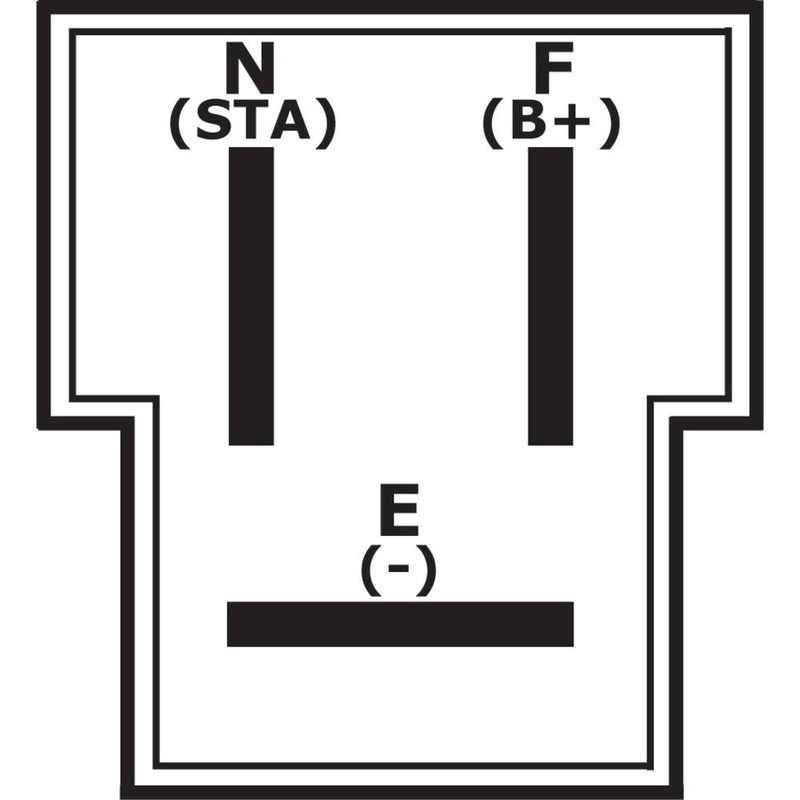

TERMINAL ID 2	B+
TERMINAL 2 SIZE	M6x1.00
TERMINAL ID 3	N Type
TERMINAL 3 SIZE	Spade
TERMINAL ID 4	F
TERMINAL 4 SIZE	Spade
TERMINAL ID 5	E-
TERMINAL 5 SIZE	Spade
POLARITY	Negative
NUMBER OF GROOVES	1
PULLEY TYPE	Solid
PULLEY OUTER DIAMETER	2.764″
PULLEY OUTER DIAMETER	70.200mm

Applications

Part fit

MAKE	MODEL	Engine	YEAR
Kubota	B5100DT	12HP Z500-B Diesel	1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995
Kubota	B5100DT	Kubota Z500-B 12HP Ds	1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995
Kubota	B5100E	12HP Z500-B Diesel	1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986
Kubota	B5100E	Kubota Z500-B 12HP Ds	1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986
Kubota	B6000DT	14HP L6 ZL600 Diesel	1973, 1974, 1975, 1976, 1977
Kubota	B6000DT	Kubota ZL600 14.5HP Ds	1973, 1974, 1975, 1976, 1977
Kubota	B6000DTC	14HP L6 ZL600 Diesel	1975, 1976, 1977, 1978
Kubota	B6000DTC	Kubota ZL600 14.5HP Ds	1975, 1976, 1977, 1978
Kubota	B6000E	14HP L6 ZL600 Diesel	1978, 1979, 1980, 1981, 1982, 1983, 1984
Kubota	B6000E	Kubota ZL600 14.5HP Ds	1978, 1979, 1980, 1981, 1982, 1983, 1984
Kubota	B6100D	14HP D650B Diesel	1978, 1979, 1980, 1981, 1982, 1983, 1984
Kubota	B6100D	Kubota D650-B 14HP Ds	1978, 1979, 1980, 1981, 1982, 1983, 1984
Kubota	B6100DT	14HP D650B Diesel	1978, 1979, 1980, 1981, 1982, 1983, 1984
Kubota	B6100DT	Kubota D650-B 14HP Ds	1978, 1979, 1980, 1981, 1982, 1983, 1984
Kubota	B6100E	14HP D650B Diesel	1978, 1979, 1980, 1981, 1982, 1983, 1984
Kubota	B6100E	Kubota D650-B 14HP Ds	1978, 1979, 1980, 1981, 1982, 1983, 1984
Kubota	B6100HSD	14HP D650B Diesel	1981, 1982, 1983, 1984
Kubota	B6100HSD	Kubota D650-B 14HP Ds	1981, 1982, 1983, 1984
Kubota	B6100HSE	14HP D650B Diesel	1981, 1982, 1983, 1984
Kubota	B6100HSE	Kubota D650-B 14HP Ds	1981, 1982, 1983, 1984
Kubota	B6100HST	14HP D650B Diesel	1981, 1982, 1983, 1984
Kubota	B6100HST	Kubota D650-B 14HP Ds	1981, 1982, 1983, 1984
Kubota	B6100HSTE	14HP D650B Diesel	1981, 1982, 1983, 1984
Kubota	B6100HSTE	Kubota D650-B 14HP Ds	1981, 1982, 1983, 1984
Kubota	B6100T	14HP D650B Diesel	1981, 1982, 1983, 1984
Kubota	B6100T	Kubota D650-B 14HP Ds	1981, 1982, 1983, 1984
Kubota	B7100DT	16HP D750B Diesel	1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984
Kubota	B7100DT	Kubota D750-B 16HP Ds	1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984
Kubota	B7100E	16HP D750B Diesel	1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984
Kubota	B7100E	Kubota D750-B 16HP Ds	1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984
Kubota	B7100HSD	16HP D750B Diesel	1980, 1981, 1982, 1983, 1984
Kubota	B7100HSD	Kubota D750-B 16HP Ds	1980, 1981, 1982, 1983, 1984
Kubota	B7100HSE	16HP D750B Diesel	1980, 1981, 1982, 1983, 1984
Kubota	B7100HSE	Kubota D750-B 16HP Ds	1980, 1981, 1982, 1983, 1984
Kubota	B7100HST	16HP D750B Diesel	1980, 1981, 1982, 1983, 1984
Kubota	B7100HST	Kubota D750-B 16HP Ds	1980, 1981, 1982, 1983, 1984
Kubota	B7100HSTE	16HP D750B Diesel	1980, 1981, 1982, 1983, 1984
Kubota	B7100HSTE	Kubota D750-B 16HP Ds	1980, 1981, 1982, 1983, 1984
Kubota	B7200DT	17HP Diesel	1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990
Kubota	B7200DT	Kubota D950 17HP Ds	1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990
Kubota	B7200E	17HP Diesel	1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990
Kubota	B7200E	Kubota D950 17HP Ds	1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990
Kubota	B7200EGP	17HP Diesel	1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990
Kubota	B7200EGP	Kubota D950 17HP Ds	1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990
Kubota	B7200HSD	17HP Diesel	1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990
Kubota	B7200HSD	Kubota D950 17HP Ds	1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990
Kubota	B7200HSDT	17HP Diesel	1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990
Kubota	B7200HSDT	Kubota D950 17HP Ds	1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990
Kubota	B7200HSE	17HP Diesel	1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990
Kubota	B7200HSE	Kubota D950 17HP Ds	1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990
Kubota	D1100		1972
Kubota	D1100 Engine	All
Kubota	F2302 Engine	All
Kubota	GV3190QSW	24HP V2203 Diesel	1992
Kubota	GV3190QSW	Kubota V2203 24.7HP Ds
Kubota	GV3240-SW	33HP S2800B Diesel	1986
Kubota	GV3240-SW	S2800B 33HP Ds
Kubota	GV3250QSW	F2803B 31.6HP Ds
Kubota	GV3250QSW	F2803B Diesel	1995
Kubota	KH10	18HP D1101 Diesel	1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993
Kubota	KH10	Kubota D1101 18HP Ds	1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993
Kubota	KH101
Kubota	KH11H	D1302 Diesel	1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993
Kubota	KH11H	Kubota D1302 Ds	1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993
Kubota	KH12FD	D1402 Diesel	1982
Kubota	KH12FD	Kubota D1402 Ds
Kubota	KH14	D1301 Diesel	1977, 1978, 1979, 1980
Kubota	KH14	Kubota D1301 Ds	1977, 1978, 1979, 1980
Kubota	KH151	43HP V1902BH Diesel	1988
Kubota	KH151	Kubota V1902BH 43.3HP Ds
Kubota	KH170L	48HP S2600 Diesel	1985
Kubota	KH170L	S2600 48HP Ds
Kubota	KH18	35HP S2200 Diesel	1981
Kubota	KH18	S2200 35HP Ds
Kubota	KH18
Kubota	KH191	S2800D 59HP Ds
Kubota	KH20	Kubota V1902 Ds
Kubota	KH20	V1902 Diesel	1981
Kubota	KH28	48HP S2600 Diesel	1984
Kubota	KH28	S2600 48HP Ds
Kubota	KH28L		0
Kubota	KH60	27HP D1302 Diesel	1986
Kubota	KH60	Kubota D1302 27.1HP Ds
Kubota	KH60
Kubota	KH90	34HP V1702 Diesel	1985
Kubota	KH90	Kubota V1702 34.7HP Ds
Kubota	KH90
Kubota	KH91	30HP D1402BH Diesel	1988
Kubota	KH91	Kubota D1402BH 30.1HP Ds
Kubota	KH91
Kubota	KX101	36HP V1902BH Diesel	1992
Kubota	KX101	Kubota V1902BH 36.6HP Ds
Kubota	KX151	42HP V1902BH Diesel	1993
Kubota	KX151	Kubota V1902BH 42.7HP Ds
Kubota	KX151
Kubota	L175F	17HP Z750A Diesel	1973, 1974, 1975, 1976
Kubota	L175F	Kubota Z750A 17HP Ds	1973, 1974, 1975, 1976
Kubota	L185	17HP Z751A Diesel	1977, 1978, 1979, 1980, 1981, 1982
Kubota	L185	Kubota Z751A 17HP Ds	1977, 1978, 1979, 1980, 1981, 1982
Kubota	L185DT	17HP Z751A Diesel	1977, 1978, 1979, 1980, 1981, 1982
Kubota	L185DT	Kubota Z751A 17HP Ds	1977, 1978, 1979, 1980, 1981, 1982
Kubota	L185F	17HP Z751A Diesel	1977, 1978, 1979, 1980, 1981, 1982
Kubota	L185F	Kubota Z751A 17HP Ds	1977, 1978, 1979, 1980, 1981, 1982
Kubota	L185F
Kubota	L200	21HP Z1100 Diesel	1972, 1973
Kubota	L200	Kubota Z1100 21HP Ds	1972, 1973
Kubota	L2050DT	25HP D1102AE Diesel	1989, 1990
Kubota	L2050DT	Kubota D1102AE 25HP Ds	1989, 1990
Kubota	L2050F	25HP D1102AE Diesel	1989, 1990
Kubota	L2050F	Kubota D1102AE 25HP Ds	1989, 1990
Kubota	L210	21HP Z1100A Diesel	1972, 1973
Kubota	L210	Kubota Z1100A 21HP Ds	1972, 1973
Kubota	L225	24HP D1100A Diesel	1973, 1974, 1975, 1976, 1977
Kubota	L225	Kubota D1100A 24HP Ds	1973, 1974, 1975, 1976, 1977
Kubota	L2250DT	Kubota D1302DI 26.5HP Ds	1985, 1986, 1987, 1988, 1989, 1990
Kubota	L2250F	Kubota D1302DI 26.5HP Ds	1985, 1986, 1987, 1988, 1989, 1990
Kubota	L225DT	24HP D1100A Diesel	1973, 1974, 1975, 1976, 1977
Kubota	L225DT	Kubota D1100A 24HP Ds	1973, 1974, 1975, 1976, 1977
Kubota	L225F	24HP D1100A Diesel	1973, 1974, 1975, 1976, 1977
Kubota	L225F	Kubota D1100A 24HP Ds	1973, 1974, 1975, 1976, 1977
Kubota	L2350DT	25HP D1102AE Diesel	1991, 1992, 1993, 1994, 1995, 1996, 1997
Kubota	L2350DT	Kubota D1102AE 25HP Ds	1991, 1992, 1993, 1994, 1995, 1996, 1997
Kubota	L2350DT
Kubota	L2350F	25HP D1102AE Diesel	1991, 1992, 1993, 1994, 1995, 1996, 1997
Kubota	L2350F	Kubota D1102AE 25HP Ds	1991, 1992, 1993, 1994, 1995, 1996, 1997
Kubota	L2350F
Kubota	L235DT	23HP D1102A Diesel	1981, 1982, 1983, 1984, 1985
Kubota	L235DT	Kubota D1102A 23.5HP Ds	1981, 1982, 1983, 1984, 1985
Kubota	L235F	23HP D1102A Diesel	1981, 1982, 1983, 1984, 1985
Kubota	L235F	Kubota D1102A 23.5HP Ds	1981, 1982, 1983, 1984, 1985
Kubota	L245	25HP Diesel	1977, 1978, 1979, 1980, 1981, 1982
Kubota	L245	Kubota DH1101A 25HP Ds	1977, 1978, 1979, 1980, 1981, 1982
Kubota	L245DT	25HP Diesel	1977, 1978, 1979, 1980, 1981, 1982
Kubota	L245DT	Kubota DH1101A 25HP Ds	1977, 1978, 1979, 1980, 1981, 1982
Kubota	L245F
Kubota	L245HC	25HP Diesel	1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989
Kubota	L245HC	Kubota DH1101A 25HP Ds	1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989
Kubota	L2550DT	Kubota D1402DIA 29.5HP Ds	1985, 1986, 1987, 1988, 1989, 1990
Kubota	L2550DTGST	Kubota D1402DIA 29.5HP Ds	1985, 1986, 1987
Kubota	L2550F	Kubota D1402DIA 29.5HP Ds	1985, 1986, 1987, 1988, 1989, 1990
Kubota	L2550GST	Kubota D1402DIA 29.5HP Ds	1986, 1987, 1988, 1989, 1990
Kubota	L260F	24HP Z1300 Diesel	1973, 1974, 1975, 1976
Kubota	L260F	Kubota Z1300 24HP Ds	1973, 1974, 1975, 1976
Kubota	L275DT	27HP D1302A Diesel	1981, 1982, 1983, 1984, 1985
Kubota	L275DT	Kubota D1302A 27.5HP Ds	1981, 1982, 1983, 1984, 1985
Kubota	L275DT
Kubota	L275F	27HP D1302A Diesel	1981, 1982, 1983, 1984, 1985
Kubota	L275F	Kubota D1302A 27.5HP Ds	1981, 1982, 1983, 1984, 1985
Kubota	L275F
Kubota	L2850DT	Kubota V1702DIA 34HP Ds	1985, 1986, 1987, 1988, 1989, 1990
Kubota	L2850DTGST	Kubota V1702DIA 34HP Ds	1985, 1986, 1987, 1988, 1989, 1990
Kubota	L2850F	Kubota V1702DIA 34HP Ds	1985, 1986, 1987, 1988, 1989, 1990
Kubota	L2850GST	Kubota V1702DIA 34HP Ds	1985, 1986, 1987, 1988, 1989, 1990
Kubota	L285DT	30HP V1500A Diesel	1975, 1976, 1977, 1978, 1979, 1980, 1981
Kubota	L285DT	Kubota V1500A 30HP Ds	1975, 1976, 1977, 1978, 1979, 1980, 1981
Kubota	L285F	30HP V1500A Diesel	1975, 1976, 1977, 1978, 1979, 1980, 1981
Kubota	L285F	Kubota V1500A 30HP Ds	1975, 1976, 1977, 1978, 1979, 1980, 1981
Kubota	L285HF	30HP V1500A Diesel	1975, 1976, 1977, 1978, 1979, 1980, 1981
Kubota	L285HF	Kubota V1500A 30HP Ds	1975, 1976, 1977, 1978, 1979, 1980, 1981
Kubota	L295DT	30HP D1301A Diesel	1978, 1979, 1980, 1981, 1982
Kubota	L295DT	Kubota D1301A 30HP Ds	1978, 1979, 1980, 1981, 1982
Kubota	L295F	30HP D1301A Diesel	1979, 1980, 1981, 1982
Kubota	L295F	Kubota D1301A 30HP Ds	1979, 1980, 1981, 1982
Kubota	L305DT	30HP D1301DA Diesel	1979, 1980, 1981, 1982
Kubota	L305DT	Kubota D1301DA 30HP Ds	1979, 1980, 1981, 1982
Kubota	L305F	30HP D1301DA Diesel	1979, 1980, 1981, 1982
Kubota	L305F	Kubota D1301DA 30HP Ds	1979, 1980, 1981, 1982
Kubota	L305F
Kubota	L3250DT	Kubota V1902DIA 40HP Ds	1989, 1990
Kubota	L3250F	Kubota V1902DIA 40HP Ds	1989, 1990
Kubota	L3350HDT	Kubota V1902DIA 40HP Ds	1985, 1986, 1987, 1988, 1989, 1990
Kubota	L3350MDT	Kubota V1902DIA 40HP Ds	1985, 1986, 1987, 1988, 1989, 1990
Kubota	L345
Kubota	L345DT	34HP V1501DA Diesel	1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985
Kubota	L345DT	Kubota V1501DA 34HP Ds	1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985
Kubota	L345F	34HP V1501DA Diesel	1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986
Kubota	L345F	Kubota V1501DA 34HP Ds	1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986
Kubota	L345FW	34HP V1501DA Diesel	1985
Kubota	L345FW	Kubota V1501DA 34HP Ds	1985
Kubota	L355DTSS	36HP V1702A Diesel	1982, 1983, 1984, 1985, 1986, 1987
Kubota	L355DTSS	Kubota V1702A 36HP Ds	1982, 1983, 1984, 1985, 1986, 1987
Kubota	L355SS	36HP V1702A Diesel	1982, 1983, 1984, 1985, 1986, 1987
Kubota	L355SS	Kubota V1702A 36HP Ds	1982, 1983, 1984, 1985, 1986, 1987
Kubota	L355SS
Kubota	L3750HDT	Kubota F2302DIL 45HP Ds	1984, 1985, 1986, 1987, 1988, 1989, 1990
Kubota	L3750HF	Kubota F2302DIL 45HP Ds	1984, 1985, 1986, 1987, 1988, 1989, 1990
Kubota	L3750MDT	Kubota F2302DIL 45HP Ds	1984, 1985, 1986, 1987, 1988, 1989, 1990
Kubota	L3750MF	Kubota F2302DIL 45HP Ds	1984, 1985, 1986, 1987, 1988, 1989, 1990
Kubota	L4150DTN	Kubota F2302DI 50HP Ds	1988, 1989, 1990
Kubota	L4150F	Kubota F2302DI 50HP Ds	1990, 1991, 1992
Kubota	L4150HDT	Kubota F2302DI 50HP Ds	1984, 1985, 1986, 1987, 1988, 1989, 1990
Kubota	L4150HF	Kubota F2302DI 50HP Ds	1984, 1985, 1986, 1987, 1988, 1989, 1990
Kubota	L4150MDT	Kubota F2302DI 50HP Ds	1984, 1985, 1986, 1987, 1988, 1989, 1990
Kubota	L4150MF	Kubota F2302DI 50HP Ds	1984, 1985, 1986, 1987, 1988, 1989, 1990
Kubota	M4000	40HP S2200A Diesel	1977, 1978, 1979, 1980, 1981
Kubota	M4000	Kubota S2200A 40HP Ds	1977, 1978, 1979, 1980, 1981
Kubota	M4000
Kubota	M4030	Kubota S2602DIA 43HP Ds	1986, 1987, 1988, 1989
Kubota	M4030DT	Kubota S2602DIA 51HP Ds	1986, 1987, 1988, 1989
Kubota	M4030F	Kubota S2602DIA 51HP Ds	1986, 1987, 1988, 1989
Kubota	M4030MDT	Kubota S2602DIA 51HP Ds	1986, 1987, 1988, 1989
Kubota	M4030MF	Kubota S2602DIA 51HP Ds	1986, 1987, 1988, 1989
Kubota	M4030SU	Kubota S2602DIA 51HP Ds	1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996
Kubota	M4030TF	Kubota S2602DIA 51HP Ds	1986, 1987, 1988, 1989
Kubota	M4050	48HP S2600 Diesel	1982, 1983, 1984, 1985
Kubota	M4050	Kubota S2600 48HP Ds	1982, 1983, 1984, 1985
Kubota	M4050DT	48HP S2600 Diesel	1982, 1983, 1984, 1985
Kubota	M4050DT	Kubota S2600 48HP Ds	1982, 1983, 1984, 1985
Kubota	M4050DT
Kubota	M4050F	48HP S2600 Diesel	1982, 1983, 1984, 1985
Kubota	M4050F	Kubota S2600 48HP Ds	1982, 1983, 1984, 1985
Kubota	M4050T	48HP S2600 Diesel	1982, 1983, 1984, 1985
Kubota	M4050T	Kubota S2600 48HP Ds	1982, 1983, 1984, 1985
Kubota	M4500
Kubota	M4500DC	55HP S2600 Diesel	1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985
Kubota	M4500DC	Kubota S2600 55.5HP Ds	1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985
Kubota	M4500DT	55HP S2600 Diesel	1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985
Kubota	M4500DT	Kubota S2600 55.5HP Ds	1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985
Kubota	M4500F	55HP S2600 Diesel	1979, 1980, 1981, 1982, 1983, 1984
Kubota	M4500F	Kubota S2600 55.5HP Ds	1979, 1980, 1981, 1982, 1983, 1984
Kubota	M4950DT	Kubota S2800A 55HP Ds	1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993
Kubota	M4950DTC	Kubota S2800A 55HP Ds	1983, 1984, 1985
Kubota	M4950F	Kubota S2800A 55HP Ds	1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993
Kubota	M4950FC	Kubota S2800A 55HP Ds	1983, 1984, 1985
Kubota	M4950S	Kubota S2800A 55HP Ds	1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993
Kubota	M5030DT	Kubota S2800A 60HP Ds	1986, 1987, 1988, 1989
Kubota	M5030DTL	Kubota S2800A 60HP Ds	1986, 1987, 1988, 1989
Kubota	M5030F	Kubota S2800A 60HP Ds	1986, 1987, 1988, 1989
Kubota	M5030L	Kubota S2800A 60HP Ds	1986, 1987, 1988, 1989
Kubota	M5030MDT	Kubota S2800A 60HP Ds	1986, 1987, 1988, 1989
Kubota	M5030MDTL	Kubota S2800A 60HP Ds	1986, 1987, 1988, 1989
Kubota	M5030MF	Kubota S2800A 60HP Ds	1986, 1987, 1988, 1989
Kubota	M5030SU	Kubota S2800A 60HP Ds	1990, 1991, 1992, 1993, 1994, 1995, 1996
Kubota	M5030SUDT	Kubota S2800A 60HP Ds	1990, 1991, 1992, 1993, 1994, 1995, 1996
Kubota	M5030SUMDT	Kubota S2800A 60HP Ds	1990, 1991, 1992, 1993, 1994, 1995, 1996
Kubota	NSU25	All
Kubota	NSU35	S220
Kubota	NSU35	S220	1976
Kubota	NX3000	D130	1977, 1978, 1979, 1980, 1981
Kubota	NX3000	D1301 Engine	1977, 1978, 1979, 1980, 1981
Kubota	R400	38HP V1902 Diesel	1986
Kubota	R400	Kubota V1902 38HP Ds
Kubota	R400
Kubota	R410	39HP V1902 Diesel	1989
Kubota	R410	Kubota V1902 39.5HP Ds
Kubota	RW25	V150	1980
Kubota	RW25	V1500 Engine
Kubota	RW30	V190	1982
Kubota	RW30	V1902 Engine
Kubota	RX3600	V1502	1981
Kubota	RX3600	V1502C Engine
Kubota	S2200E Engine	All
Kubota	S2800 Engine	All
Kubota	V1501 Engine	All
Kubota	V1702 Engine	All
Kubota	VT1502 Engine	All
Kubota	Z751-AW Engine	All
Thomas Equipment	T103	D1402B Diesel
Thomas Equipment	T133	V1902B Diesel
Thomas Equipment	T173	V1902B Diesel
Thomas Equipment	T232
Thomas Equipment	T233	S2800B Diesel
Toyota	2FD-10	4P Engine
Toyota	2FD-7	V150	1981
Toyota	2FD-7	V1502 Engine
Toyota	2FD-9	V150	1981
Toyota	2FD-9	V1502 Engine
Toyota	2FG-7	3	1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992
Toyota	2FG-7	3P Engine	1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992
Toyota	2FG-9	3	1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992
Toyota	2FG-9	3P Engine	1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992
Toyota	2FGL-7	3	1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992
Toyota	2FGL-7	3P Engine	1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992
Toyota	2FGL-9	3	1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992
Toyota	2FGL-9	3P Engine	1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992
Toyota	3FD-10	V150	1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988
Toyota	3FD-10	V1502 Engine	1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988
Toyota	3FD-14	V150	1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988
Toyota	3FD-14	V1502 Engine	1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988
Toyota	3FD-15	V150	1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988
Toyota	3FD-15	V1502 Engine	1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988
Toyota	3FD-18	V150	1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988
Toyota	3FD-18	V1502 Engine	1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988
Toyota	3FDL-10	V150	1980, 1981, 1982, 1983, 1984, 1985, 1986
Toyota	3FDL-10	V1502 Engine	1980, 1981, 1982, 1983, 1984, 1985, 1986
Toyota	3FDL-14	V150	1980, 1981, 1982, 1983, 1984, 1985, 1986
Toyota	3FDL-14	V1502 Engine	1980, 1981, 1982, 1983, 1984, 1985, 1986
Toyota	3FDL-15	V150	1980, 1981, 1982, 1983, 1984, 1985, 1986
Toyota	3FDL-15	V1502 Engine	1980, 1981, 1982, 1983, 1984, 1985, 1986
Toyota	3FDL-18	V150	1982, 1983, 1984, 1985, 1986
Toyota	3FDL-18	V1502 Engine	1982, 1983, 1984, 1985, 1986
Toyota	3FDL-20	V150	1982, 1983, 1984, 1985, 1986
Toyota	3FDL-20	V1502 Engine	1982, 1983, 1984, 1985, 1986
Toyota	3FDL-25	V150	1982, 1983, 1984, 1985, 1986
Toyota	3FDL-25	V1502 Engine	1982, 1983, 1984, 1985, 1986
Toyota	3FG-20	4	1978, 1979, 1980, 1981, 1982
Toyota	3FG-20	4P Engine	1978, 1979, 1980, 1981, 1982
Toyota	3FG-20	5	1978, 1979, 1980, 1981, 1982
Toyota	3FG-20	5R Engine	1978, 1979, 1980, 1981, 1982
Toyota	3FG-23	4	1979, 1980, 1981, 1982
Toyota	3FG-23	4P Engine	1979, 1980, 1981, 1982
Toyota	3FG-25	4	1979, 1980, 1981, 1982
Toyota	3FG-25	4P Engine	1979, 1980, 1981, 1982
Toyota	3FG-25	5	1978, 1979, 1980, 1981, 1982
Toyota	3FG-25	5R Engine	1978, 1979, 1980, 1981, 1982
Toyota	3FGC-10	5	1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988
Toyota	3FGC-10	5R Engine	1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988
Toyota	3FGC-13	5	1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988
Toyota	3FGC-13	5R Engine	1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988
Toyota	3FGC-15	5	1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988
Toyota	3FGC-15	5R Engine	1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988
Toyota	3FGL-20	4	1978, 1979, 1980, 1981, 1982
Toyota	3FGL-20	4P Engine	1978, 1979, 1980, 1981, 1982
Toyota	3FGL-23	4	1978, 1979, 1980, 1981, 1982
Toyota	3FGL-23	4P Engine	1978, 1979, 1980, 1981, 1982
Toyota	3FGL-25	4	1978, 1979, 1980, 1981, 1982
Toyota	3FGL-25	4P Engine	1978, 1979, 1980, 1981, 1982
Toyota	4FDL-20	V150	1982, 1983, 1984, 1985, 1986
Toyota	4FDL-20	V1502 Engine	1982, 1983, 1984, 1985, 1986
Toyota	4FDL-23	V150	1982, 1983, 1984, 1985, 1986
Toyota	4FDL-23	V1502 Engine	1982, 1983, 1984, 1985, 1986
Toyota	4FDL-25	V150	1982, 1983, 1984, 1985, 1986
Toyota	4FDL-25	V1502 Engine	1982, 1983, 1984, 1985, 1986
Toyota	4FG-10	4	1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986
Toyota	4FG-10	4P Engine	1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986
Toyota	4FG-10	5	1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986
Toyota	4FG-10	5R Engine	1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986
Toyota	4FG-14	4	1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986
Toyota	4FG-14	4P Engine	1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986
Toyota	4FG-14	5	1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986
Toyota	4FG-14	5R Engine	1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986
Toyota	4FG-15	4	1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986
Toyota	4FG-15	4P Engine	1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986
Toyota	4FG-15	5	1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986
Toyota	4FG-15	5R Engine	1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986
Toyota	4FG-18	4	1982, 1983, 1984, 1985, 1986
Toyota	4FG-18	4P Engine	1982, 1983, 1984, 1985, 1986
Toyota	4FG-18	5	1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986
Toyota	4FG-18	5R Engine	1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986
Toyota	4FG-20	4	1982, 1983, 1984, 1985, 1986
Toyota	4FG-20	4P Engine	1982, 1983, 1984, 1985, 1986
Toyota	4FG-20	5	1982, 1983, 1984, 1985, 1986
Toyota	4FG-20	5R Engine	1982, 1983, 1984, 1985, 1986
Toyota	4FG-23	4	1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986
Toyota	4FG-23	4P Engine	1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986
Toyota	4FG-23	5	1978, 1979, 1980, 1981, 1982
Toyota	4FG-23	5R Engine	1978, 1979, 1980, 1981, 1982
Toyota	4FG-25	4	1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986
Toyota	4FG-25	4P Engine	1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986
Toyota	4FG-25	5	1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986
Toyota	4FG-25	5R Engine	1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986
Toyota	4FGC-10		1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980
Toyota	4FGC-14		1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980
Toyota	4FGC-15		1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980
Toyota	4FGC-18		1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980
Toyota	4FGC-20	4	1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988
Toyota	4FGC-20	4P Engine	1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988
Toyota	4FGC-20	5	1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988
Toyota	4FGC-20	5R Engine	1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988
Toyota	4FGC-23		1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979
Toyota	4FGC-25	4	1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988
Toyota	4FGC-25	4P Engine	1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988
Toyota	4FGC-25	5	1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988
Toyota	4FGC-25	5R Engine	1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988
Toyota	4FGL-10	4	1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986
Toyota	4FGL-10	4P Engine	1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986
Toyota	4FGL-14	4	1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986
Toyota	4FGL-14	4P Engine	1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986
Toyota	4FGL-15	4	1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986
Toyota	4FGL-15	4P Engine	1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986
Toyota	4FGL-18	4	1982, 1983, 1984, 1985, 1986
Toyota	4FGL-18	4P Engine	1982, 1983, 1984, 1985, 1986
Toyota	4FGL-20	4	1982, 1983, 1984, 1985, 1986
Toyota	4FGL-20	4P Engine	1982, 1983, 1984, 1985, 1986
Toyota	4FGL-23	4	1982, 1983, 1984, 1985, 1986
Toyota	4FGL-23	4P Engine	1982, 1983, 1984, 1985, 1986
Toyota	COROLLA	1.1	1968, 1969
Toyota	COROLLA	1.2	1970, 1971, 1972, 1973, 1974
Toyota	Corolla	1077cc, 1.1L L4	1968, 1969
Toyota	Corolla	1077cc, 1.1L/66CI L4	1968, 1969
Toyota	Corolla	1166cc, 1.2L L4	1970, 1971, 1972, 1973, 1974
Toyota	Corolla	1166cc, 1.2L/71CI L4	1970, 1971, 1972, 1973, 1974
Toyota	FD-18	V150	1980, 1981, 1982, 1983, 1984, 1985, 1986
Toyota	FD-18	V1502 Engine	1980, 1981, 1982, 1983, 1984, 1985, 1986
Toyota	FDL-18	V150	1980, 1981, 1982
Toyota	FDL-18	V1502 Engine	1980, 1981, 1982
Toyota	FDL-23	V150	1980, 1981, 1982
Toyota	FDL-23	V1502 Engine	1980, 1981, 1982
Toyota	FG-18	4	1978, 1979, 1980, 1981, 1982
Toyota	FG-18	4P Engine	1978, 1979, 1980, 1981, 1982
Toyota	FG-18	5	1978, 1979, 1980, 1981, 1982
Toyota	FG-18	5R Engine	1978, 1979, 1980, 1981, 1982
Toyota	FG-23	4	1978, 1979, 1980, 1981, 1982
Toyota	FG-23	4P Engine	1978, 1979, 1980, 1981, 1982
Toyota	FG-23	5	1978, 1979, 1980, 1981, 1982
Toyota	FG-23	5R Engine	1978, 1979, 1980, 1981, 1982
Toyota	FGC-18	4	1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988
Toyota	FGC-18	4P Engine	1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988
Toyota	FGC-18	5	1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988
Toyota	FGC-18	5R Engine	1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988
Toyota	FGC-23	4	1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988
Toyota	FGC-23	4P Engine	1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988
Toyota	FGC-23	5	1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988
Toyota	FGC-23	5R Engine	1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988
Toyota	FGL-18	4	1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986
Toyota	FGL-18	4P Engine	1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986
Toyota	FGL-20	4	1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986
Toyota	FGL-20	4P Engine	1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986
Toyota	FGL-23	4	1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986
Toyota	FGL-23	4P Engine	1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986
Toyota	FGL-25	4	1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986
Toyota	FGL-25	4P Engine	1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986
Toyota	FGS-23		1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980

Manufacturer Name	Manufacturer Part #
ARROWHEAD	ND021000-2840, ND021000-5670, ND021000-6840, ND021000-8620, ND9702109-862
BOSCH	AL204X
DENSO	021000-2840, 021000-5670, 021000-6840, 021000-8620, 9702109-862
KUBOTA	15321-64010, 15321-64011, 15321-64012, 15411-64010, 15411-64011, 15471-64010, 15471-64011, 15606-64010, 15606-64011
LESTER	12053, 14502, 14510

+1 (800) 978 4880

info@partszone.ca

Login

NEW Alternator for KUBOTA Engines – Industrial & Tractors, TOYOTA Forklift/ Lift Truck; 400-52294, 021000-2840, 021000-5670, 021000-6840, 5321-64010, 15321-64011, 15321-64012; LESTER 12053, 14502, 14510

Specifications

Part Number & Interchanges

Applications

Our Goal

Store Policies

Contact Us

Fulfillment Facility

NEW Alternator for KUBOTA Engines – Industrial & Tractors, TOYOTA Forklift/ Lift Truck; 400-52294, 021000-2840, 021000-5670, 021000-6840, 5321-64010, 15321-64011, 15321-64012; LESTER 12053, 14502, 14510

Specifications

Related products
