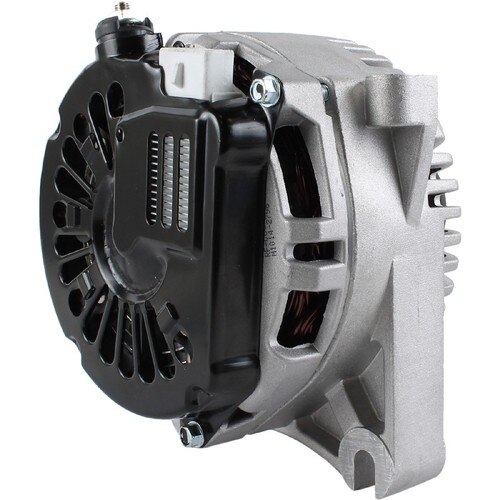

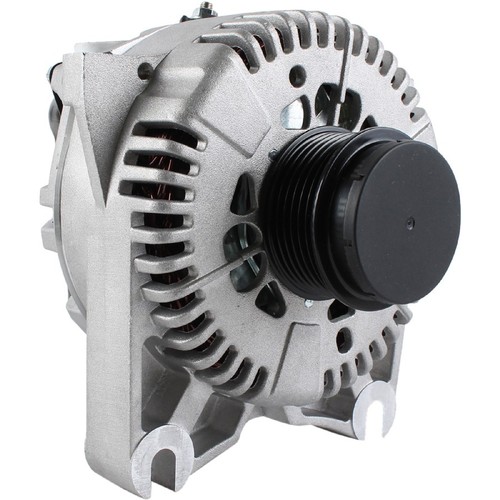

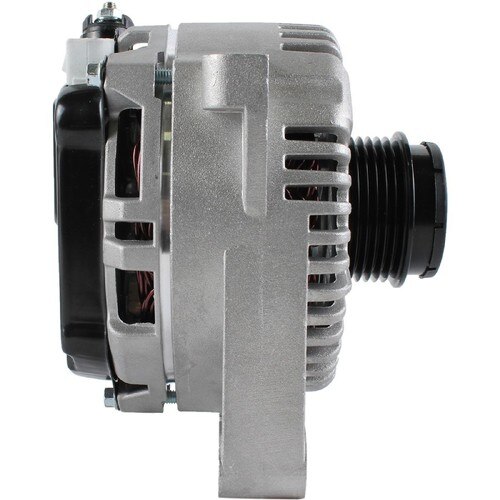

NEW Alternator for MERCURY MARAUDER 4.6L 2003-04 Application; 400-14145, 3W3U10300AA, 3W3U-10300-AA, 3W3U-AA, 3W3Z10346AA, 3W3Z-10346-AA, GL547; LESTER 8314
$264.47
SEARCH: 493423 (APPEARS TO BE THE SAME EXCEPT THE REGULATOR)
Specifications
| UNIT TYPE | Alternator |
| FAMILY | Ford 4G |
| VOLT | 12 |
| AMPS | 130 |
| REGULATOR CLOCK | 1:00 |
| ROTATION DIRECTION | Clockwise |
| MOUNT HOLE ID 1 | 10mm |
| MOUNT HOLE 1 TYPE | Slotted |
| MOUNT HOLE 2 TYPE | Slotted |
| MOUNT HOLE ID 3 | M6x1.00 |
| MOUNT HOLE 3 TYPE | Threaded |
| MOUNT HOLE ID 4 | M6x1.00 |
| MOUNT HOLE 4 TYPE | Threaded |
| MOUNTING EAR THICKNESS | 1.205″ |
| MOUNTING EAR THICKNESS | 30.600mm |
| MOUNTING EAR 2 THICKNESS | 1.205″ |
| MOUNTING EAR 2 THICKNESS | 30.600mm |
| FAN LOCATION | Internal |
| REGULATOR LOCATION | Internal |
| TERMINAL ID 2 | B+ |
| TERMINAL 2 SIZE | M6x1.00 |
| TERMINAL ID 3 | L |
| TERMINAL 3 SIZE | Spade |
| TERMINAL ID 4 | R/C |
| TERMINAL 4 SIZE | Spade |
| TERMINAL ID 5 | S |
| TERMINAL 5 SIZE | Spade |
| POLARITY | Negative |
| NUMBER OF GROOVES | 6 |
| PULLEY TYPE | Clutch |
| PULLEY OUTER DIAMETER | 2.512″ |
| PULLEY OUTER DIAMETER | 63.800mm |
| WARRANTY | 1 Year |
| PCM Controlled Regulator |
