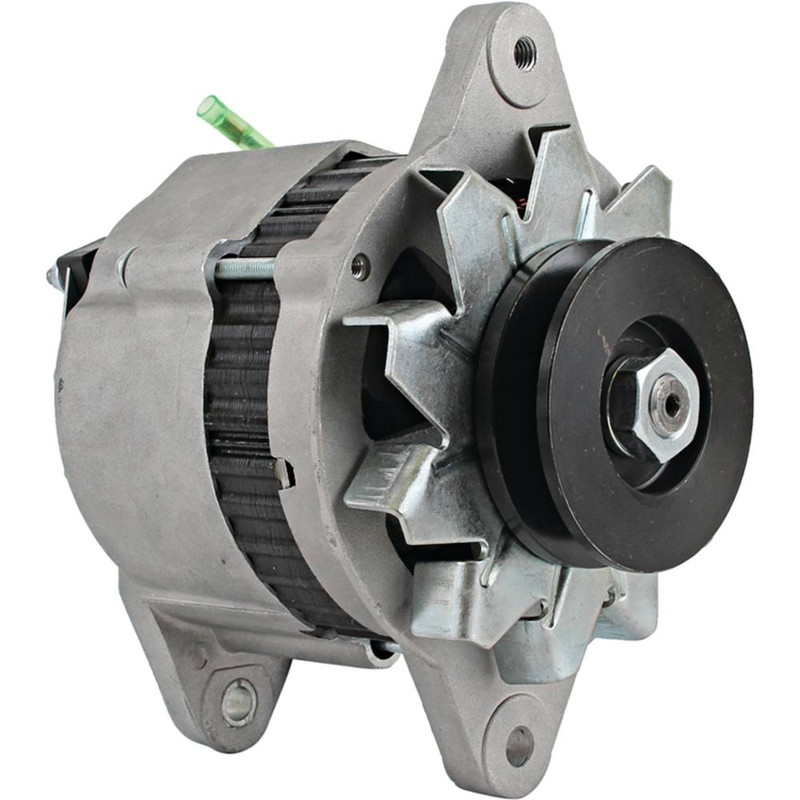

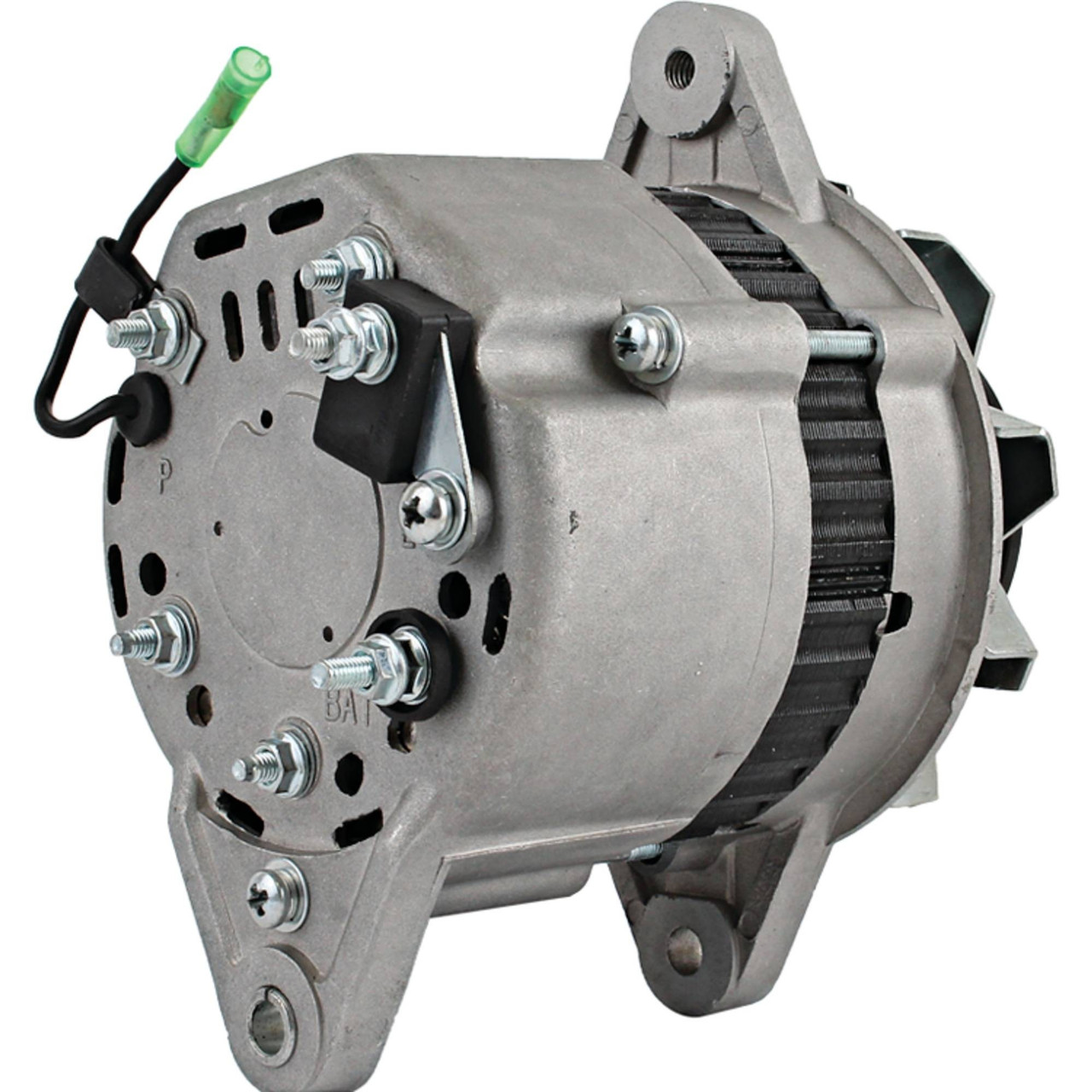

NEW Alternator for YANMAR Engines – Marine; 400-44113, LR135-74, LR135-74B, 128170-77200, 128170-77201, 128170-77202; LESTER 12108
$179.99
Specifications
| UNIT | Alternator |
| VOLT | 12 |
| AMPS | 35 |
| ROTATION DIRECTION | Clockwise |
| MOUNT HOLE ID 1 | M8x1.25 |
| MOUNT HOLE 1 TYPE | Threaded |
| MOUNT HOLE 2 TYPE | Unthreaded |
| MOUNT HOLE ID 3 | 8.200mm |
| MOUNT HOLE 3 TYPE | Unthreaded |
| MOUNTING EAR THICKNESS | 0.567″ |
| MOUNTING EAR THICKNESS | 14.400mm |
| MOUNTING EAR 2 THICKNESS | 0.551″ |
| MOUNTING EAR 2 THICKNESS | 14mm |
| MOUNTING EAR 3 THICKNESS | 0.583″ |
| MOUNTING EAR 3 THICKNESS | 14.800mm |
| FAN LOCATION | External |
| REGULATOR LOCATION | Internal |
| TERMINAL ID 2 | B+ |
| TERMINAL 2 SIZE | M5x0.8 |
| TERMINAL ID 3 | E |
| TERMINAL 3 SIZE | M5x0.8 |
| TERMINAL ID 4 | P |
| TERMINAL 4 SIZE | Female Bullet |
| POLARITY | Negative |
| NUMBER OF GROOVES | 1 |
| PULLEY TYPE | Solid |
| PULLEY OUTER DIAMETER | 2.835″ |
| PULLEY OUTER DIAMETER | 72mm |
| WARRANTY | 1 Year |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | AHI0084 |
| EMP | 4-6928 |
| HITACHI | LR135-74, LR135-74B |
| J&N ELECTRICAL PRODUCTS | 400-44113 |
| LESTER | 12108 |
| LUCAS ELECTRIC | LRA01331 |
| YANMAR | 128170-77200, 128170-77201, 128170-77202 |
Applications
Part fit
| MAKE | MODEL | ENGINE | YEAR |
| Yanmar | 1GM | 1cyl 19.41ci 0.318 | 1980, 1981, 1982, 1983, 1984 |
| Yanmar | 1GM10 | 1cyl 19.41ci 0.318 | 1980, 1981 |
| Yanmar | 2GM | 2cyl Diesel | 1980, 1981, 1982, 1983, 1984 |
| Yanmar | 2GMF | 2cyl Diesel | 1980, 1981, 1982, 1983, 1984 |
| Yanmar | 2QM15 | 2cyl 0.662L Diesel | 1977, 1978, 1979, 1980 |
| Yanmar | 2QM15 | 2cyl 0.662L Diesel | 1980 |
| Yanmar | 2QM20Y | 2cyl 1.094L Diesel | 1975, 1976, 1977, 1978, 1979, 1980 |
| Yanmar | 3GM | 3cyl Diesel | 1980, 1981, 1982, 1983, 1984 |
| Yanmar | 3GMD | 3cyl Diesel | |
| Yanmar | 3GMF | 3cyl Diesel | |
| Yanmar | 3HM | 3cyl Diesel | 1980, 1981, 1982, 1983, 1984 |
| Yanmar | 3HMF | 3cyl Diesel | 1980, 1981, 1982, 1983, 1984 |
