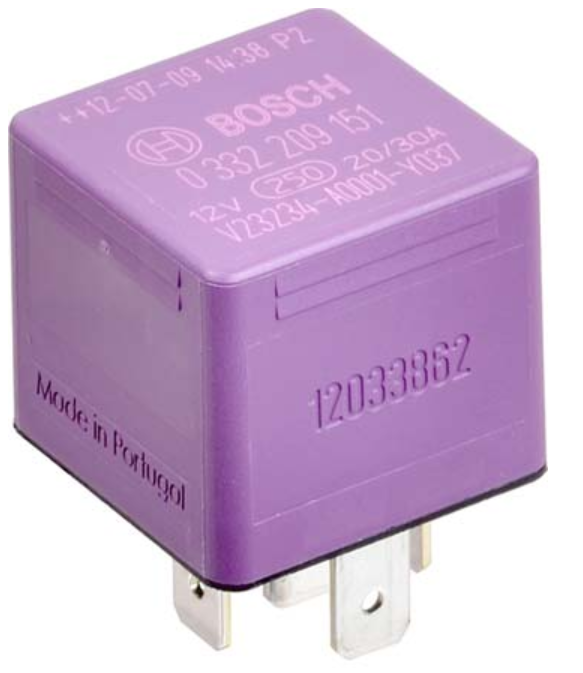

New BOSCH Mini Relay; BOS-0332209151441, 0332204101, 0332204101BLK, 0332209151, 0332209151315, 0332209151441, 0332209151BLK, 986332401, 933332057
$27.69
Specifications
| Description: | Power Relay |
| Volt | 12 |
| Amps | 30 |

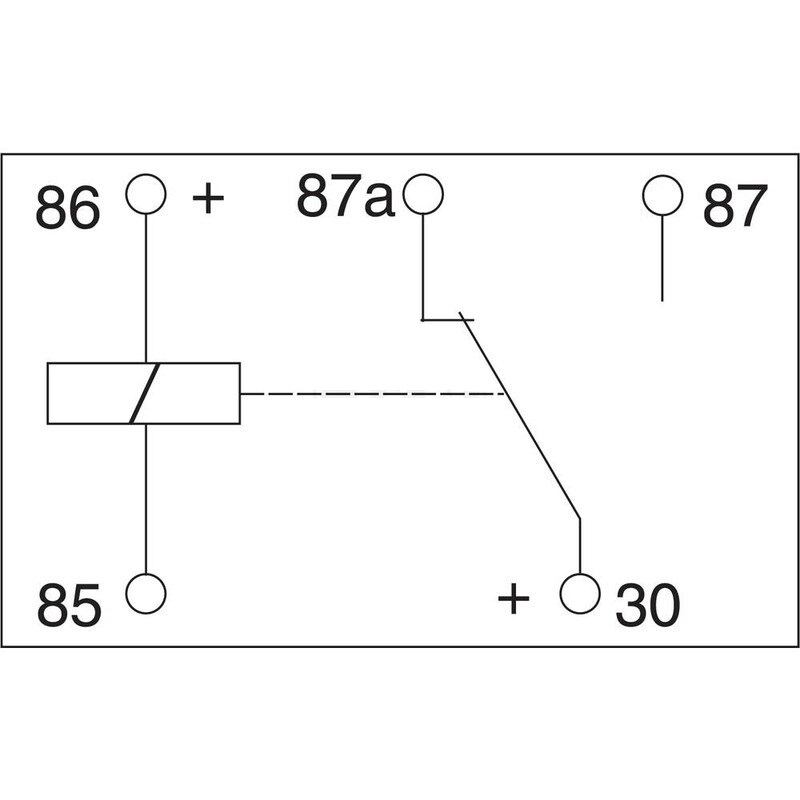

| Terminal ID 2 | 30 |
| Terminal 2 Size | 6.3mm x 0.8mm |
| Terminal ID 3 | 85 |
| Terminal 3 Size | 6.3mm x 0.8mm |
| Terminal ID 4 | 86 |
| Terminal 4 Size | 6.3mm x 0.8mm |
| Terminal ID 5 | 87 |
| Terminal 5 Size | 6.3mm x 0.8mm |
| Terminal ID 6 | 87a |
| Terminal 6 Size | 6.3mm x 0.8mm |
| Cap Composition | Plastic |
| Contact Config | Single Pole, Double Throw (SPDT) |
| Duty Cycle | Continuous |
| Includes | Change Over Contacts |
| No of Terminals | 5 |
| Plated Terminals | FALSE |
| Resistance Type | Coil Only |
| Resistance | 85 ohms |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | B0332209151441, SSW2860 |
| BOSCH | 0332204101, 0332204101BLK, 0332209151, 0332209151315, 0332209151441, 0332209151BLK, 986332401 |
| HELLA | 933332057 |
