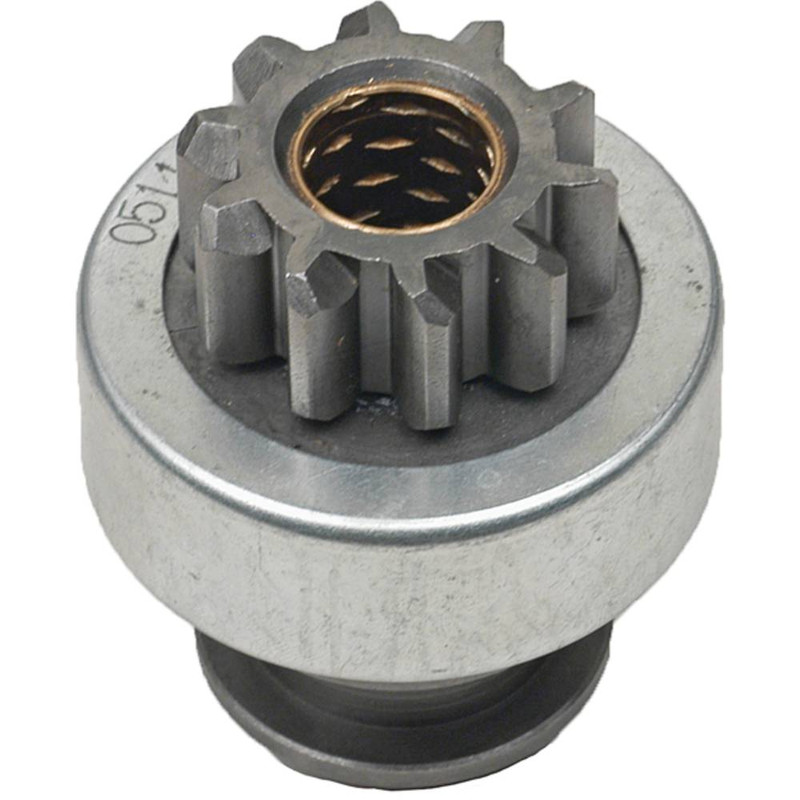

NEW Drive Assembly for Lucas M127 Starters on Ford Tractor Applications; 220-30041, 132285, 54247393, 54268139, 54290585, L26253762, TMB148, TMB170
$39.99
Specifications
| UNIT TYPE | Drive Assembly |
| CRITICAL NOTE | For Use With Armatures Having A 32 Degree Helix |
| QUALITY TYPE | Standard |
| ROTATION DIRECTION | Clockwise |
| ID | 0.669″ |
| ID | 17 mm |
| GEAR OD | 1.575″ |
| GEAR OD | 40mm |
| LENGTH | 2.756″ |
| LENGTH | 70 mm |
| NUMBER OF TEETH | 10 |
| NUMBER OF SPLINES | 12 |
| SPLINES TYPE | Spiral |
| DRIVE TYPE | Roller |
| WET CLUTCH SEAL | FALSE |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | 11-LU768, 4-768, L26253762, SLU5048, ZN0480 |
| CASEIH | K2620828 |
| FACET DRIVES | 5-0480 |
| FORD | 83DB-11K003-AA, E4NN-11350-AA |
| J&N | 220-30010, 220-30041, 220-30046 |
| LUCAS ELECTRIC | 132285, 54247393, 54268139, 54290585, L26253762, TMB148, TMB170 |
| LUCAS TVS | 26253762 |
| MARELLI | 54290585 |
| ZEN S.A. | 0480, 1.01.0480.0 |
