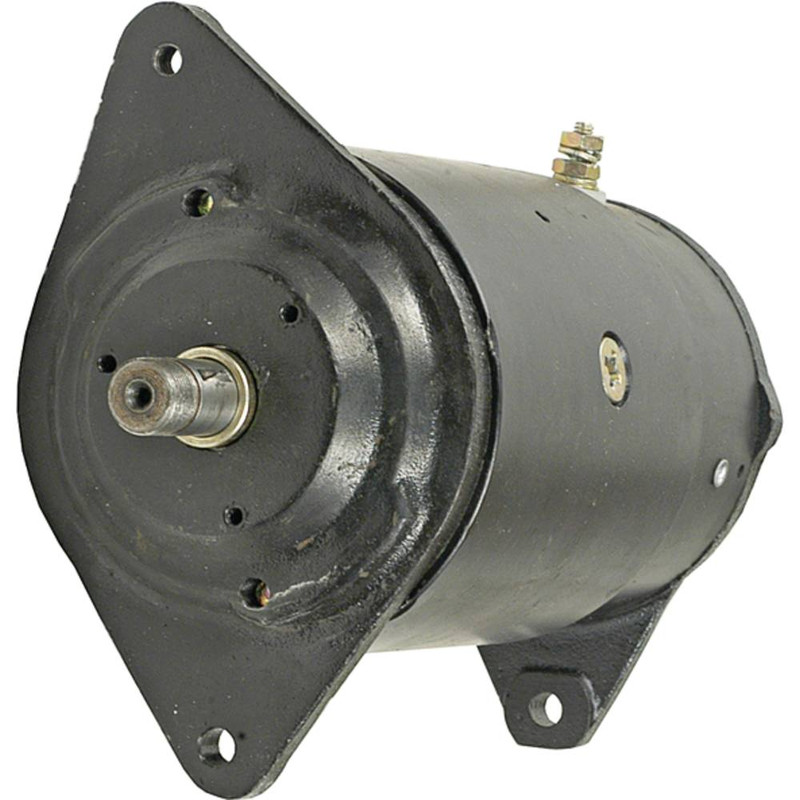

NEW Generator for CUSHMAN Director, Golfster, Haulster, Trophy & Truckster OTH Applications; 420-12003, 1101433, 1101689, 1101690, 1101693; LESTER 9185, 9186, 9192, 9193, 9198, 9199
$319.99
Add’l Info: Assembled in Cincinnati, Ohio USA of All New Components
Specifications
| UNIT TYPE | Generator |
| QUALITY TYPE | Premium |
| CURRENT TYPE | DC |
| VOLT | 12 |
| AMPS | 15 |
| ROTATION DIRECTION | Clockwise |
| OD | 117.800 mm |
| OD | 4.638″ |
| SHAFT OD | 0.665″ |
| SHAFT OD | 16.900mm |
| LENGTH | 10.354″ |
| LENGTH | 263 mm |
| TERMINAL 2 SIZE | 12-24 |
| TERMINAL 3 SIZE | 12-24 |
| SHAFT | Threaded with Keyway |
| WARRANTY | 1 Year |
| ADD’L INFO | A Circuit and Totally Enclosed |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | 420-12003, GDR0002 |
| DELCO | 1101433, 1101689, 1101690, 1101693, 1101698, 1101863, 1101864, 1101870, 1101874, 1101875, 1101919, 1101926, 1101928, 1101940, 1101945, 1101949, 1101953, 1101961, 1101965, 1101966, 1101970, 1101971, 1101973, 1101978, 1101980, 1101984, 1101988, 1101992, 1101993, 1101995 |
| J&N | 420-12010 |
| LESTER | 9185, 9186, 9192, 9193, 9198, 9199 |
Applications
Part fit
| MAKE | MODEL | ENGINE | YEAR |
| Case/International Harvester | 220 | K-24 | 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979 |
| Case/International Harvester | 220 | K-241 Kohler Engin | 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979 |
| Case/International Harvester | 222 | K-30 | 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979 |
| Case/International Harvester | 222 | K-301 Kohler Engin | 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979 |
| Case/International Harvester | 442 | K-32 | 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979 |
| Case/International Harvester | 442 | K-321 Kohler Engin | 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979 |
| Case/International Harvester | 444 | K-32 | 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979 |
| Case/International Harvester | 444 | K-321 Kohler Engin | 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979 |
| Case/International Harvester | 446 | K-32 | 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979 |
| Case/International Harvester | 446 | K-321 Kohler Engin | 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979 |
| Clinton | 412 | 1963, 1964, 1965 | |
| Clinton | 413 | 1963, 1964, 1965 | |
| Clinton | 414 | 1963, 1964, 1965 | |
| Clinton | 418 | 1963, 1964, 1965 | |
| Clinton | 420 | 1963, 1964, 1965 | |
| Clinton | 422 | 1963, 1964, 1965 | |
| Colt | 10 | 9.5HP Kohler K-24 | 1963, 1964 |
| Colt | 120 | Kohler K-241 | 1965, 1966 |
| Colt | 150 | Kohler K-241 | 1965, 1966 |
| Colt | 155 | Kohler K-241 | 1967, 1968 |
| Colt | 190 | Kohler K-301 | 1965, 1966 |
| Colt | 195 | Kohler K-301 | 1967, 1968 |
| Colt | 2110 | Lauson HH-10 | 1965, 1966 |
| Colt | 2310 | Lauson HH-10 | 1965, 1966 |
| Colt | 2510 | Lauson HH-10 | 1965, 1966 |
| Colt | 9 | 9.5HP Kohler K-24 | 1962, 1963, 1964 |
| Cushman | Director | Kohler 24 | |
| Cushman | Golfster GC-300 | Kohler 30 | |
| Cushman | Golfster GC-400 | Kohler 24 | |
| Cushman | Golfster GC-400 | Kohler 30 | |
| Cushman | Haulster | Kohler 30 | |
| Cushman | Trophy | Kohler 24 | |
| Cushman | Truckster | ||
| International | Cub 154 Lo-Boy | C-60 , Ga | 1968, 1969, 1970 |
| International | International Cub 154 Lo-Boy | IHC C-60 Ga | 1968, 1969 |
| International | International Cub 154 Lo-Boy | IHC C-60 Ga | 1970 |
| International | International Cub 154 Lo-Boy | IHC C-60 Ga | 1971, 1972, 1973, 1974 |
| International | International Cub 184 Lo-Boy | IHC C-60 Ga | 1977, 1978, 1979, 1980 |
| International | International Cub 185 Lo-Boy | IHC C-60 Ga | 1974, 1975, 1976 |
| Jacobsen | 70 Trimmer | K-18 | |
| Jacobsen | 76 Turf King | K-30 | |
| Jacobsen | 84 Turf King | K-32 | |
| Jacobsen | Chief 1000 | K-24 | |
| Jacobsen | Chief 1200 | K-30 | |
| Jacobsen | Chief 53035 | K-24 | |
| Jacobsen | Chief 53036 | K-24 | |
| Lauson | HH-100 | 10HP 1-Cy | 1964, 1965, 1966, 1967, 1968 |
| Lauson | HH-120 | 12HP 1-Cy | 1966, 1967, 1968 |
| Lauson | HH-80 | 8HP 1-Cy | 1964, 1965, 1966, 1967, 1968 |
| Massey Ferguson | MF-10 | HH-10 | 1966 |
| Massey Ferguson | MF-10 | Lauson HH-10 | 1966 |
| Roper | Custom 600 | HH-12 | 1965, 1966, 1967, 1968 |
| Roper | Custom 600 | Lauson HH-12 | 1965, 1966, 1967, 1968 |
| Roper | Hydro-Trac 12 | HH-12 | 1969, 1970 |
| Roper | Hydro-Trac 12 | Lauson HH-12 | 1969, 1970 |
| Roper | LT-8 | Briggs & Stratto | 1973 |
| Roper | LT-8 | 1973 | |
| Roper | RT-13 | Briggs & Stratto | 1973 |
| Roper | RT-13 | 1973 | |
| Roper | Sears Custom 10XL | HH-10 | 1969, 1970 |
| Roper | Sears Custom 10XL | Lauson HH-10 | 1969, 1970 |
| Roper | SS-12 | HH-12 | 1969, 1970, 1971, 1972, 1973 |
| Roper | SS-12 | Lauson HH-12 | 1969, 1970, 1971, 1972, 1973 |
| Roper | SS-16 | HH-16 | 1973 |
| Roper | SS-16 | Lauson HH-16 | 1973 |
| Roper | SS-16 | Onan Twi | 1973 |
| Roper | SS-16 | Twi | 1973 |
| Roper | Suburban 10 | HH-10 | 1965, 1966, 1967, 1968 |
| Roper | Suburban 10 | Lauson HH-10 | 1965, 1966, 1967, 1968 |
| Roper | Suburban 12 | HH-12 | 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972 |
| Roper | Suburban 12 | Lauson HH-12 | 1965, 1966, 1967, 1968, 1969, 1970 |
| Roper | Suburban 12 | Lauson HH-12 | 1971, 1972 |
| Roper | Suburban 8 | HH-8 | 1965, 1966 |
| Roper | Suburban 8 | Lauson HH-8 | 1965, 1966 |
| Roper | XL-10 | HH-10 | 1973 |
| Roper | XL-10 | Lauson HH-10 | 1973 |
| Teledyne | AENL | 1967, 1968, 1969 | |
| Teledyne | HAENL | 1961, 1962 | |
| Teledyne | S-10 | 1967, 1968, 1969, 1970, 1971, 1972 | |
| Teledyne | S-10D | 1971, 1972 | |
| Teledyne | S-12 | 1967, 1968, 1969, 1970, 1971, 1972 | |
| Teledyne | S-12D | 1971, 1972 | |
| Teledyne | S-8 | 1967, 1968, 1969, 1970, 1971, 1972 | |
| Teledyne | TRA-10D | 1967, 1968, 1969 |
