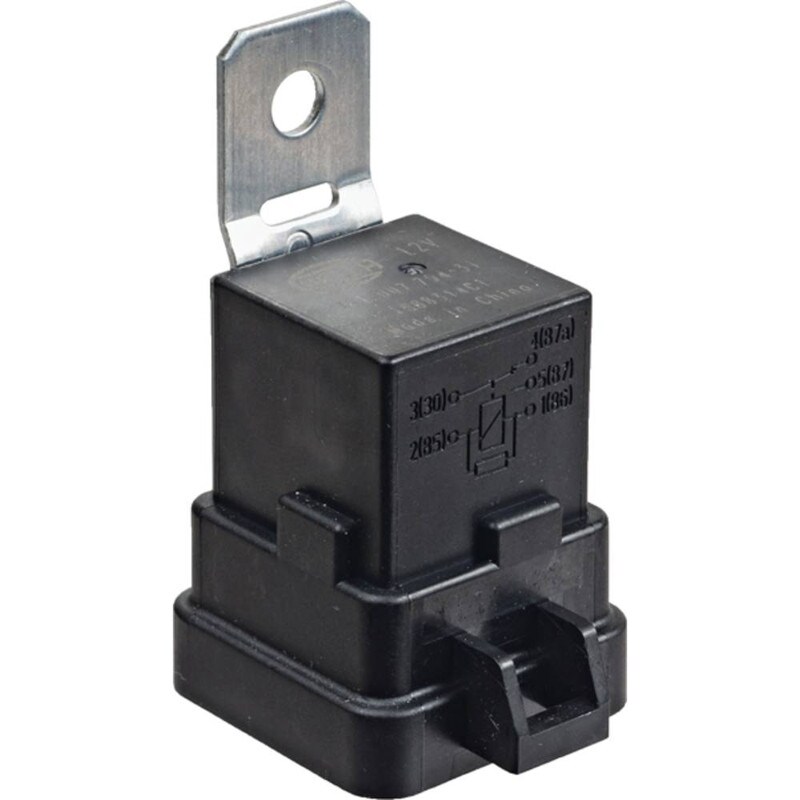

New HELLA Mini Relay; HLA-007794311, 007794311, 7794311, 87412, H41388151
$48.83
RELAY-12V-20/40A-SPD
Specifications
| Description: | Power Relay |
| Volt | 12 |
| Amps | 40 |
| Terminal ID 2 | 30 |
| Terminal 2 Size | 6.3mm x 0.8mm |
| Terminal ID 3 | 85 |
| Terminal 3 Size | 6.3mm x 0.8mm |
| Terminal ID 4 | 86 |
| Terminal 4 Size | 6.3mm x 0.8mm |
| Terminal ID 5 | 87 |
| Terminal 5 Size | 6.3mm x 0.8mm |
| Terminal ID 6 | 87a |
| Terminal 6 Size | 6.3mm x 0.8mm |
| Cap Composition | Plastic |
| Contact Config | Single Pole, Double Throw (SPDT) |
| Duty Cycle | Continuous |
| No of Terminals | 5 |
| Plated Terminals | FALSE |
| Resistance Type | Resistor |
| Resistance | 680 ohms |
| Includes | Change Over Contacts, Mounting Bracket |
| Note | Weather Resistant, Incl: Change Over Contacts, Mounting Bracket |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | 7794311 |
| HELLA | 007794311, 7794311, 87412, H41388151 |
