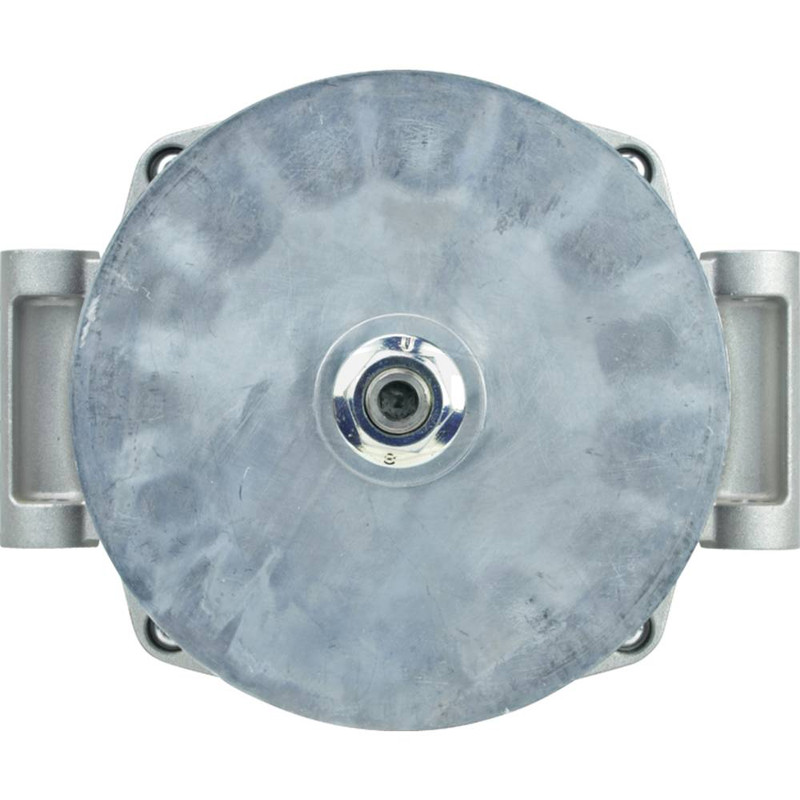

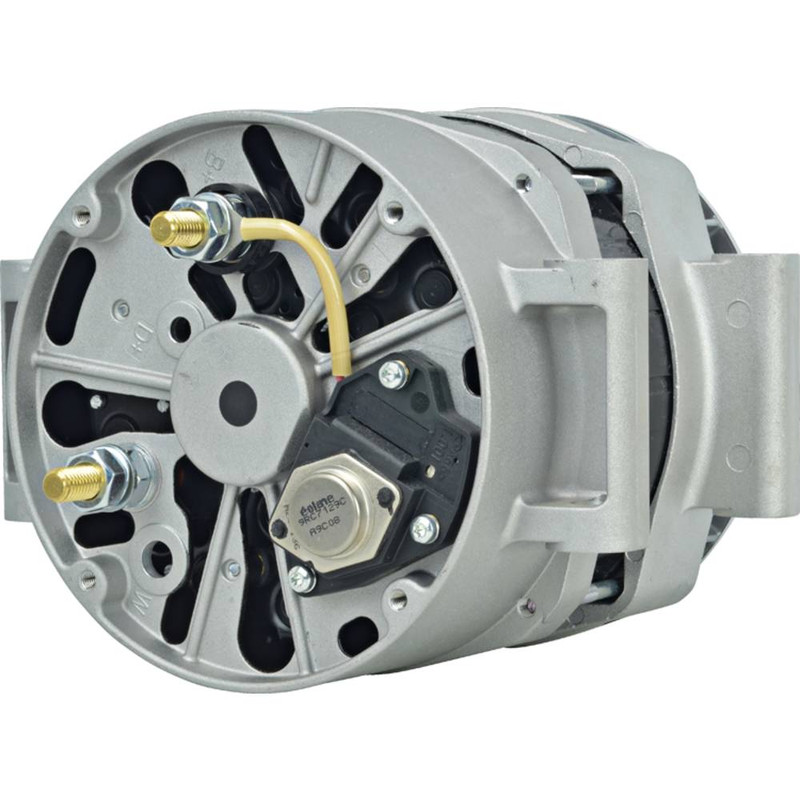

New ISKRA Alternator for Heavy-Duty TRUCKS; MAH-MG148, 4C4O10300PA, 4C4Z10346PA, GL-572-RM, GL-576, GL-988
$1,069.99
ADDL INFO: 12V, 330A Mahle Alternator
Available on backorder
Specifications
| UNIT TYPE | Alternator |
| FAMILY | Letrika/MAHLE AAT |
| VOLT | 12 |
| AMPS | 330 |
| REGULATOR CLOCK | 1:00 |
| PAD SPAN LENGTH | 107.95 |
| MOUNT HOLE ID 1 | 10.800mm |
| MOUNT HOLE 1 TYPE | Unthreaded |
| MOUNT HOLE ID 2 | 12.600mm |
| MOUNT HOLE 2 TYPE | Unthreaded |
| MOUNT HOLE ID 3 | 10.800mm |
| MOUNT HOLE 3 TYPE | Unthreaded |
| MOUNT HOLE ID 4 | 12.600mm |
| MOUNT HOLE 4 TYPE | Unthreaded |
| MOUNTING EAR THICKNESS | 3.150″ |
| MOUNTING EAR THICKNESS | 80mm |
| MOUNTING EAR 2 THICKNESS | 3.150″ |
| MOUNTING EAR 2 THICKNESS | 80mm |
| MOUNTING EAR 3 THICKNESS | 3.150″ |
| MOUNTING EAR 3 THICKNESS | 80mm |
| MOUNTING EAR 4 THICKNESS | 3.150″ |
| MOUNTING EAR 4 THICKNESS | 80mm |
| FAN LOCATION | External |
| REGULATOR LOCATION | Internal |
| TERMINAL ID 2 | B+ |
| TERMINAL 2 SIZE | M10-1.5 |
| TERMINAL ID 3 | B- |
| TERMINAL 3 SIZE | M10-1.5 |
| POLARITY | Negative |
| SHAFT PULLEY OD | 0.875″ |
| SHAFT PULLEY OD | 22.220mm |
| SHAFT | M16-1.5 |
| Dust-proof |
Part Number & Interchanges
| Manufacturer Part # | Manufacturer Name |
| MG148 | ARROWHEAD (OEM) |
| M5X0674 | CATERPILLAR |
| IA 1675 | LETRIKA (ISKRA) AFTERMARKET |
| AAT3326 | LETRIKA (ISKRA) DESCRIPTION |
| AAT3388 | LETRIKA (ISKRA) DESCRIPTION |
| AAT3423 | LETRIKA (ISKRA) DESCRIPTION |
| 11.204.898 | LETRIKA (ISKRA) OEM |
| 11.204.286 | LETRIKA (ISKRA) OEM |
| 11.205.175 | LETRIKA (ISKRA) OEM |
| MG148 | MAHLE |
| 11.205.175 | MAHLE |
| 11.204.898 | MAHLE |
| 11.204.286 | MAHLE |
| IA1675 | MAHLE (OLD) |
