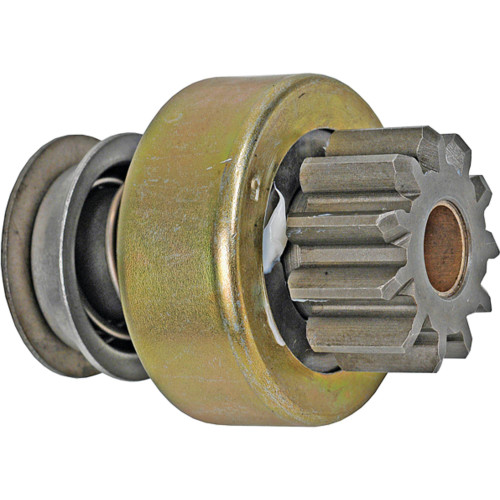

NEW Pinion W/ Clutch for Letrika AZJ Series Starters; 220-29007, 16.901.752, MSX667
$69.99
Specifications
| UNIT TYPE | Pinion With Clutch |
| ROTATION DIRECTION | Clockwise |
| ID | 0.563″ |
| ID | 14.300 mm |
| GEAR OD | 1.587″ |
| GEAR OD | 40.300mm |
| LENGTH | 3.244″ |
| LENGTH | 82.400 mm |
| NUMBER OF TEETH | 11 |
| NUMBER OF SPLINES | 10 |
| SPLINES TYPE | Spiral |
| DRIVE TYPE | Roller |
| WET CLUTCH SEAL | FALSE |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | 220-29007 |
| MAHLE | 16.901.752, MSX667 |
