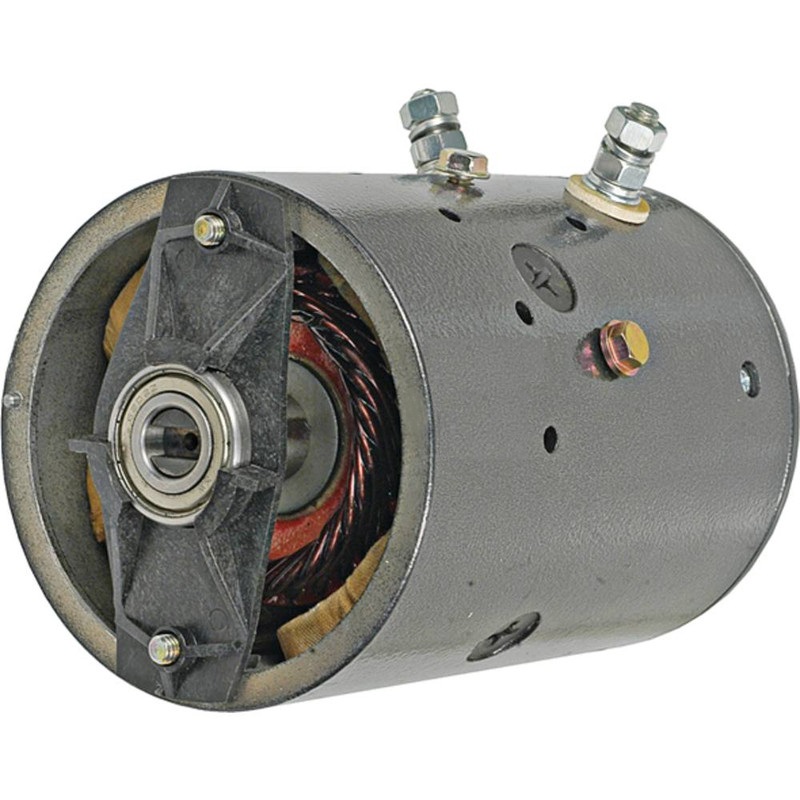

NEW Pump Motor for J.S. BARNES, MONARCH & MTE Hydraulics Applications; 430-22033, 8119, 39200295, [PRESTOLITE 46-2127, 46-2180, 46-2573, 46-2637, MUF7002, MUF7002S, ...]; LESTER 10750
NEW Pump Motor for J.S. BARNES, MONARCH & MTE Hydraulics Applications; 430-22033, 8119, 39200295, [PRESTOLITE 46-2127, 46-2180, 46-2573, 46-2637, MUF7002, MUF7002S, ...]; LESTER 10750 - Image 2

NEW Pump Motor for J.S. BARNES, MONARCH & MTE Hydraulics Applications; 430-22033, 8119, 39200295, [PRESTOLITE 46-2127, 46-2180, 46-2573, 46-2637, MUF7002, MUF7002S, …]; LESTER 10750

$189.99

Categories: ,

Specifications

UNIT TYPE Pump Motor
CURRENT TYPE DC
VOLT 24
POWER 2.600 kw
HP 3.487
AMPS 120
RPM 2900
ROTATION DIRECTION Counter Clockwise
OD 114.900 mm
OD 4.524″
SHAFT OD 0.591″
SHAFT OD 15mm
LENGTH 177.800 mm
LENGTH 7″
TERMINAL 2 SIZE 5/16-18
TERMINAL 3 SIZE 5/16-18
SHAFT 1/4″ Slotted
WARRANTY 1 Year
ADD’L INFO Insulated Ground, Double Ball Bearing

WRITE YOUR OWN REVIEW

We appreciate your feedback about our parts, services experience or anything which may help us to serve you better.
[testimonial_view id=”1″]

Part Number & Interchanges

Manufacturer Name Manufacturer Part #
ARROWHEAD IS9045, LMN0004, MM222, MS492
J&N ELECTRICAL PRODUCTS 430-22033
LESTER 10750
LETRIKA/ISKRA IM 0007, IS 9045
MAHLE MM222, MS492
MONARCH/BUCHER 8119
MTE HYDRAULICS 39200295
PRESTOLITE 46-2127, 46-2180, 46-2573, 46-2637, 46-2811, 46-3593, 46-3623, 46-3639, MUF6102, MUF6102S, MUF6104S, MUF7001, MUF7002, MUF7002S
