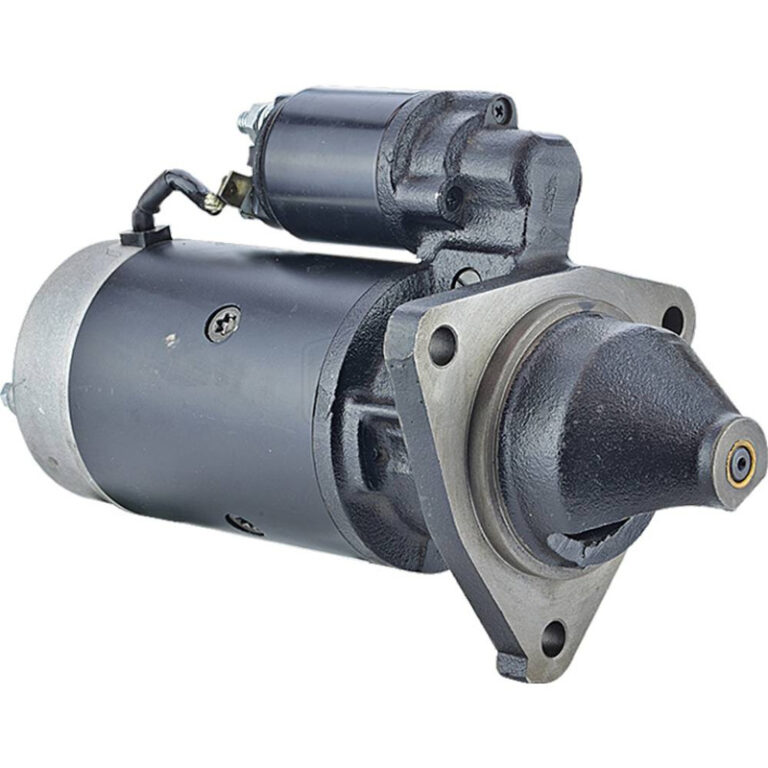

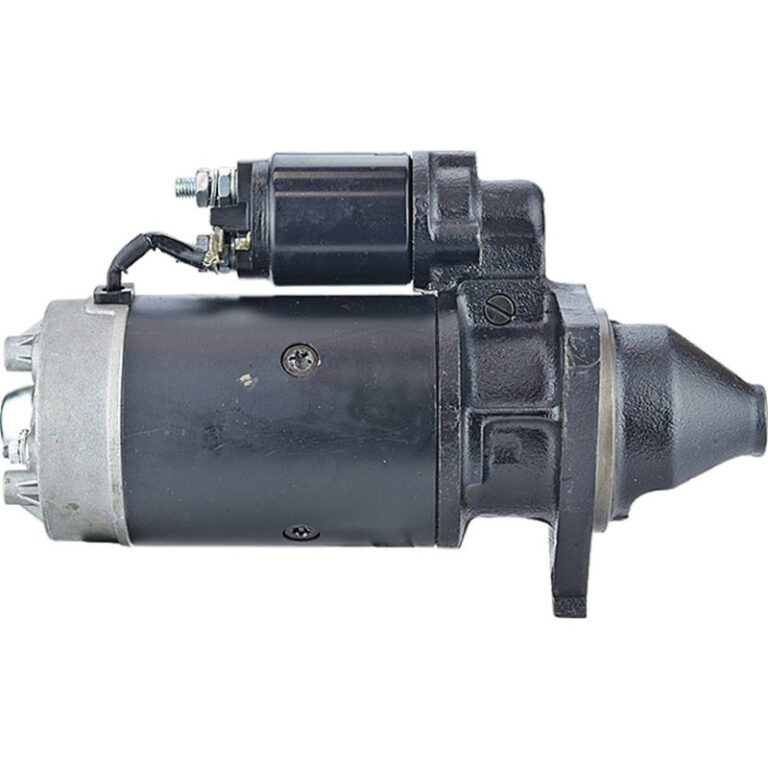

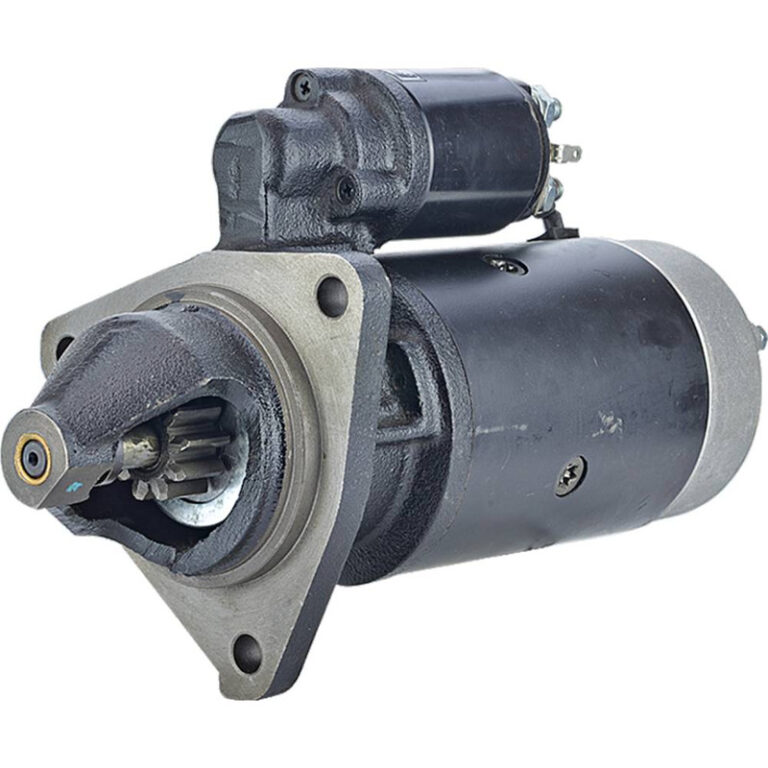

NEW Starter for BELARUS Belarus 570, 822, 925, 1025 Tractors – Farm; SBE0001, 410-42010, 20063708, 20073708000]; LESTER 18547
Original price was: $299.99.$274.99Current price is: $274.99.
Specifications
| Unit Type | Starter |
| Part Type | Direct Drive (DD) |
| Voltage | 24 |
| POWER | 4 kw/ 5.364 HP |
| Rotation | Clockwise |
| NUMBER OF TEETH | 10 |
| GEAR OD | 1.484″/ 37.700mm |
| MOUNT HOLE ID 1 | 13mm |
| MOUNT HOLE 1 & 2 TYPE | Unthreaded |
| LENGTH | 10.354″/ 263 mm |
| MOUNT HOLE ID 3 | 13mm |
| MOUNT HOLE 3 TYPE | Unthreaded |
| REGISTRY OD | 3.937″/ 100mm |
| MOUNTING EAR DISTANCE 1 | 4.972″/ 126.300mm |
| Addn Info | M10-1.5 B+ & Motor Studs
@Spade S Terminal |
WRITE YOUR OWN REVIEW
We appreciate your feedback about our parts, services experience or anything which may help us to serve you better.
[testimonial_view id=”1″]
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | IS1002, MS360 |
| ATLANTIC QUALITY PARTS | 2300-0100, 2300-0104 |
| BELARUS | 20063708, 20073708000 |
| LESTER | 18547 |
| LETRIKA/ISKRA | 11.130.676, 11.131.006, AZJ3223, AZJ3353, IS 0676, IS 1002 |
| LUCAS ELECTRIC | LRS01892, LRS01945 |
| MAHLE | 11.130.676, 11.131.006, AZJ3223, AZJ3353, IS0676, IS1002, MS0360, MS360 |
Applications
| MAKE | MODEL | ENGINE | YEAR |
| Belarus | 570 | 4-Cy | 1992, 1993, 1994, 1995, 1996 |
| Belarus | 570 | 4cyl – 65H | 1992, 1993, 1994, 1995, 1996 |
| Belarus | 572 | 4-Cy | 1992, 1993, 1994, 1995, 1996 |
| Belarus | 572 | 4cyl – 65H | 1992, 1993, 1994, 1995, 1996 |
| Belarus | 800 | 4-Cy | 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996 |
| Belarus | 802 | 4-Cy | 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996 |
| Belarus | 802 | 4cyl – 81H | 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996 |
| Belarus | 805 | 4-Cy | 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996 |
| Belarus | 805 | 4cyl – 81H | 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996 |
| Belarus | 820 | 4-Cy | 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996 |
| Belarus | 820 | 4cyl – 81H | 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996 |
| Belarus | 822 | 4-Cy | 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996 |
| Belarus | 822 | 4cyl – 81H | 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996 |
| Belarus | 825 | 4-Cy | 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996 |
| Belarus | 900 | 4cyl – 100HP (Turbo | 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996 |
| Belarus | 900 | 4-Cyl Turbocharge | 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996 |
| Belarus | 902 | 4cyl – 100HP (Turbo | 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996 |
| Belarus | 902 | 4-Cyl Turbocharge | 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996 |
| Belarus | 905 | 4cyl – 100HP (Turbo | 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996 |
| Belarus | 905 | 4-Cyl Turbocharge | 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996 |
| Belarus | 920 | 4cyl – 100HP (Turbo | 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996 |
| Belarus | 920 | 4-Cyl Turbocharge | 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996 |
| Belarus | 922 | 4cyl – 100HP (Turbo | 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996 |
| Belarus | 922 | 4-Cyl Turbocharge | 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996 |
| Belarus | 925 | 4cyl – 100HP (Turbo | 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996 |
| Belarus | 925 | 4-Cyl Turbocharge | 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996 |
| Belarus | 1025 | 4cyl – 100HP (Turbo | |
| Belarus | 1025 | 4-Cyl Turbocharge | |
| Belarus | 800 / 800M | 4cyl – 81H | 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996 |
| Belarus | 800M | 4-Cy | 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996 |
| Belarus | 825 / 825R | 4cyl – 81H | 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996 |
