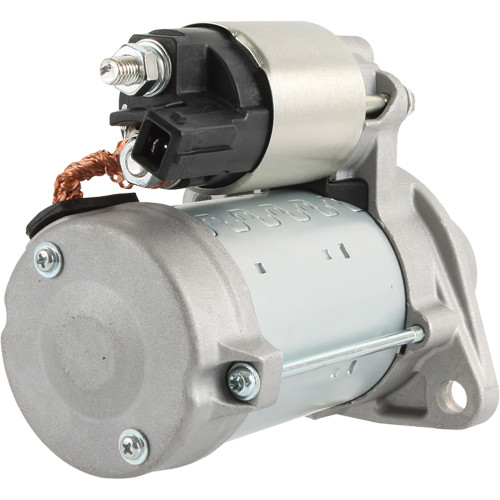

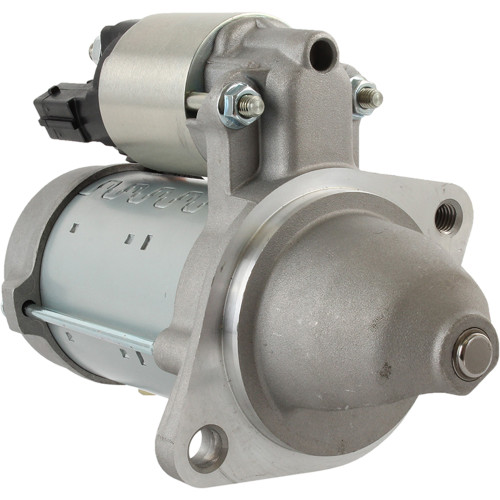

NEW Starter for BMW (Various Models) Auto & Light Trucks; 410-52457, 428000-4490, [BMW 12-41-2-344-243, 12-41-2-354-701, 12-41-7-579-155, 12-41-7-579-156, …]; LESTER 19305, 19824
$243.78
Specifications
| UNIT TYPE | Starter |
| ELECTRIC STARTER TYPE | Permanent Magnet Gear Reduction (PMGR) |
| START STOP SYSTEM COMPATIBLE | TRUE |
| VOLT | 12 |
| POWER | 1.500 kw |
| HP | 2.012 |
| ROTATION DIRECTION | Clockwise |
| NUMBER OF TEETH | 9 |
| GEAR OD | 1.114″ |
| GEAR OD | 28.300mm |
| LENGTH | 132 mm |
| LENGTH | 5.197″ |
| MOUNT HOLE ID 1 | 11mm |
| MOUNT HOLE 1 TYPE | Unthreaded |
| MOUNT HOLE ID 2 | M10x1.50 |
| MOUNT HOLE 2 TYPE | Threaded |
| REGISTRY OD | 2.992″ |
| REGISTRY OD | 76mm |
| WARRANTY | 1 Year |
| ADD’L INFO | Without Start/Stop Function, M8-1.25 B+ & Motor Terminals, pade S Terminal, 105mm Mounting Hole Center To Center |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | SND0796 |
| BMW | 12-41-2-344-243, 12-41-2-354-701, 12-41-7-579-155, 12-41-7-579-156, 12-41-7-594-292, 12-41-7-610-350, 7521122, 7521123, 7579155, 7579155-01 |
| BOSCH | 2150, SR9520X |
| DENSO | 428000-4490 |
| J&N ELECTRICAL PRODUCTS | 410-52457 |
| LESTER | 19305, 19824 |
| LUCAS ELECTRIC | LRS02298, LRS2298 |
Applications
Part fit
| MAKE | MODEL | ENGINE | YEAR |
| BMW | 128i | 3.0L N52 | 2008, 2009, 2010, 2011 |
| BMW | 128i | 3.0L N5 | 2008, 2009, 2010, 2011 |
| BMW | 135i | 3.0L N5 | 2008, 2009, 2010, 2011 |
| BMW | 323i | 2.5L N52 | 2007, 2008, 2009 |
| BMW | 325i | 3.0L N5 | 2006 |
| BMW | 325Xi | 3.0L N5 | 2006 |
| BMW | 328i | 3.0L N5 | 2007, 2008, 2009, 2010, 2011 |
| BMW | 328i | 3.0L N52 | 2007, 2008, 2009, 2010, 2011 |
| BMW | 328i xDrive | 3.0L N5 | 2009, 2010, 2011 |
| BMW | 328i xDrive | 3.0L N52 | 2009, 2010, 2011 |
| BMW | 328Xi | 3.0L N5 | 2007, 2008 |
| BMW | 328Xi | 3.0L N52 | 2007, 2008 |
| BMW | 330Ci | 3.0L M5 | 2006 |
| BMW | 330i | 3.0L N5 | 2006 |
| BMW | 330Xi | 3.0L N5 | 2006 |
| BMW | 335i | 3.0L N5 | 2007, 2008, 2009, 2010, 2011 |
| BMW | 335i xDrive | 3.0L N5 | 2009, 2010, 2011 |
| BMW | 335Xi | 3.0L N5 | 2007, 2008 |
| BMW | 525i | 3.0L N5 | 2006, 2007 |
| BMW | 525Xi | 3.0L N5 | 2006, 2007 |
| BMW | 528i | 2.0L N2 | 2013, 2014, 2015, 2016 |
| BMW | 528i | 3.0L N52 | 2008, 2009, 2010, 2011 |
| BMW | 528i | 1997cc, 2.0L/121CI L4 | 2014, 2015 |
| BMW | 528i xDrive | 2.0L N2 | 2013, 2014, 2015, 2016 |
| BMW | 528i xDrive | 3.0L N52 | 2009, 2010 |
| BMW | 528i xDrive | 1997cc, 2.0L/121CI L4 | 2014, 2015 |
| BMW | 528Xi | 3.0L N52 | 2008 |
| BMW | 530i | 3.0L N5 | 2006, 2007 |
| BMW | 530Xi | 3.0L N5 | 2006, 2007 |
| BMW | 535i | 3.0L N5 | 2008, 2009, 2010, 2011 |
| BMW | 535i GT | 3.0L N5 | 2010, 2011 |
| BMW | 535i GT xDrive | 3.0L N5 | 2011 |
| BMW | 535i xDrive | 3.0L N5 | 2009, 2010, 2011 |
| BMW | 535Xi | 3.0L N5 | 2008 |
| BMW | 740i | 3.0L N5 | 2010, 2011 |
| BMW | 740Li | 3.0L N5 | 2011, 2012 |
| BMW | M1 | 3.0L N54 | 2011 |
| BMW | X1 | 1997cc, 2.0L/121CI L4 | 2013, 2014 |
| BMW | X1 | 1997cc, AWD, 2.0L/121CI L4 | 2013, 2014 |
| BMW | X1 sDrive28i | 2.0L N2 | 2013, 2014, 2015 |
| BMW | X1 xDrive28i | 2.0L N2 | 2010, 2011, 2012, 2013, 2014, 2015 |
| BMW | X3 | 1997cc, 2.0L/121CI L4 | 2014 |
| BMW | X3 | 1997cc, AWD, 2.0L/121CI L4 | 2015 |
| BMW | X3 3.0si | 3.0L N5 | 2007, 2008 |
| BMW | X3 sDrive28i | 2.0L N2 | 2015, 2016, 2017 |
| BMW | X3 xDrive28i | 2.0L N2 | 2013, 2014, 2015, 2016, 2017 |
| BMW | X3 xDrive28i | 3.0L N5 | 2011, 2012 |
| BMW | X3 xDrive30i | 3.0L N5 | 2009, 2010 |
| BMW | X3 xDrive35i | 3.0L N5 | 2011 |
| BMW | X5 3.0is | 3.0L N5 | 2007, 2008 |
| BMW | X5 xDrive30i | 3.0L N5 | 2009, 2010 |
| BMW | X5 xDrive35i | 3.0L N5 | 2011 |
| BMW | X6 xDrive35i | 3.0L N5 | 2008, 2009, 2010, 2011 |
| BMW | Z4 | 1997cc, 2.0L/121CI L4 | 2012, 2014, 2015 |
| BMW | Z4 Coupe 3.0si | 3.0L N5 | 2006, 2007, 2008 |
| BMW | Z4 Roadster 3.0i | 3.0L N5 | 2006, 2007, 2008 |
| BMW | Z4 Roadster 3.0si | 3.0L N5 | 2006, 2007, 2008 |
| BMW | Z4 sDrive28i | 2.0L N20 | 2012, 2013, 2014, 2015, 2016 |
| BMW | Z4 sDrive30i | 3.0L N5 | 2009, 2010, 2011 |
| BMW | Z4 sDrive35i | 3.0L N54 | 2009, 2010, 2011 |
| BMW | Z4 sDrive35is | 3.0L N54 | 2011 |
